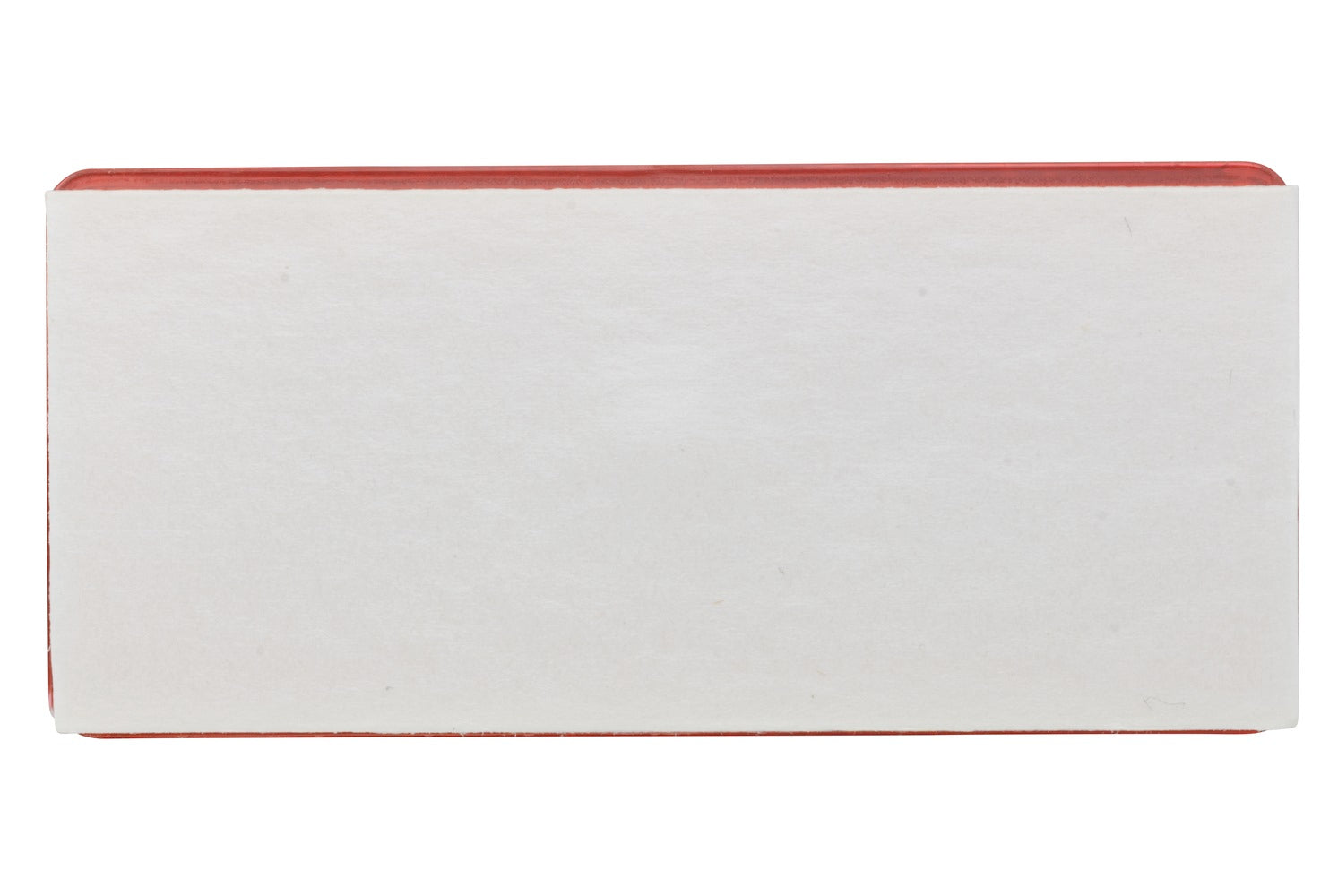

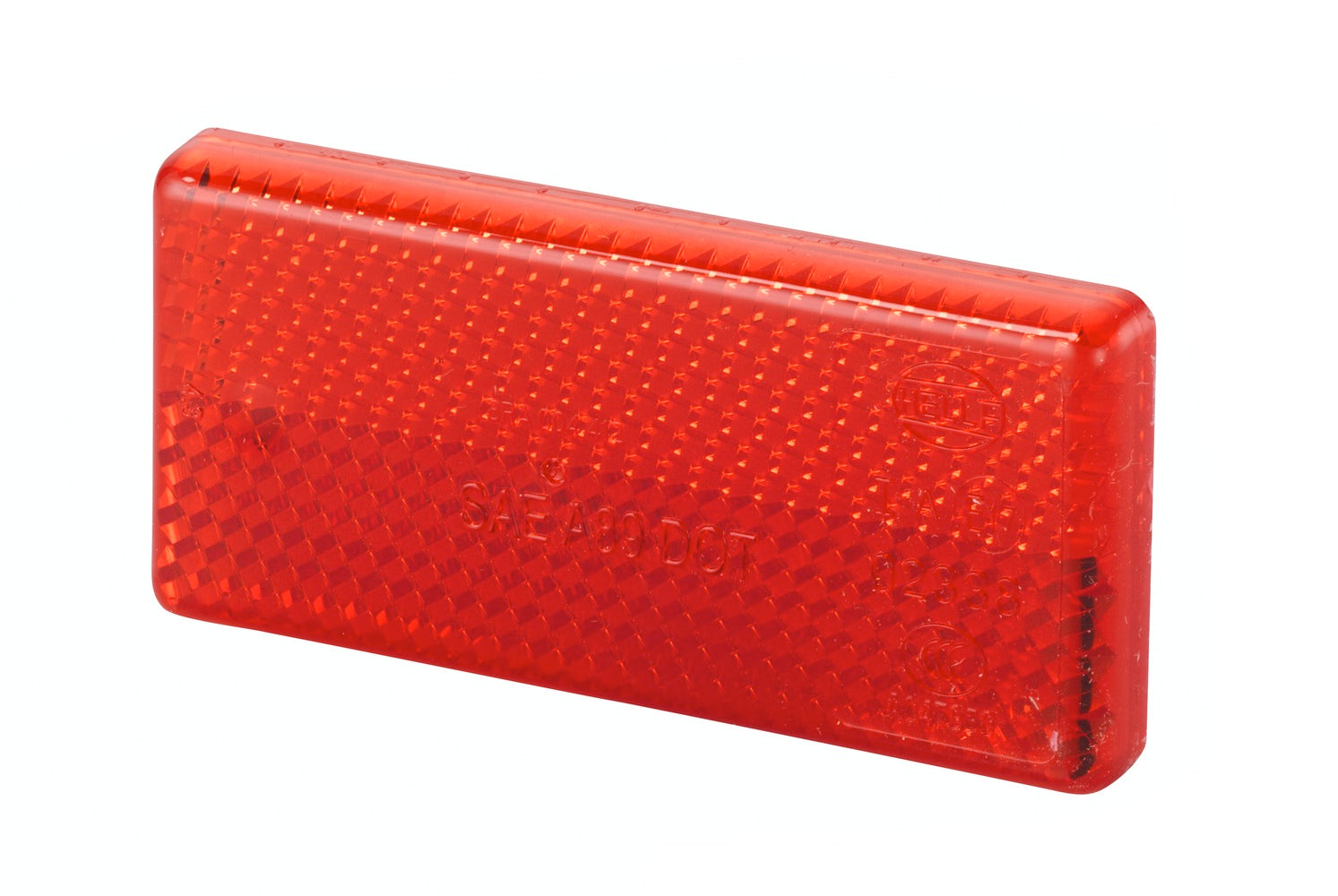

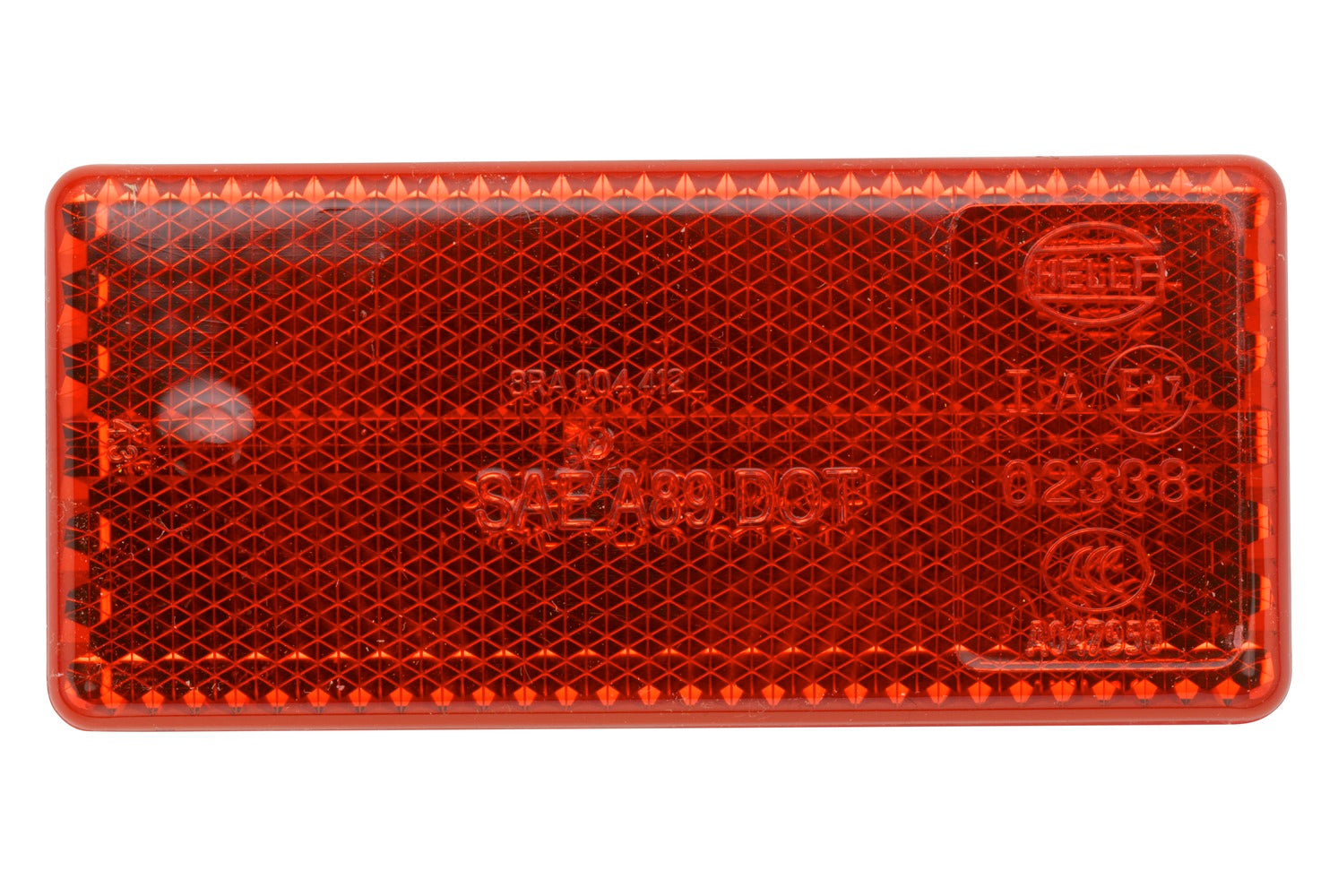

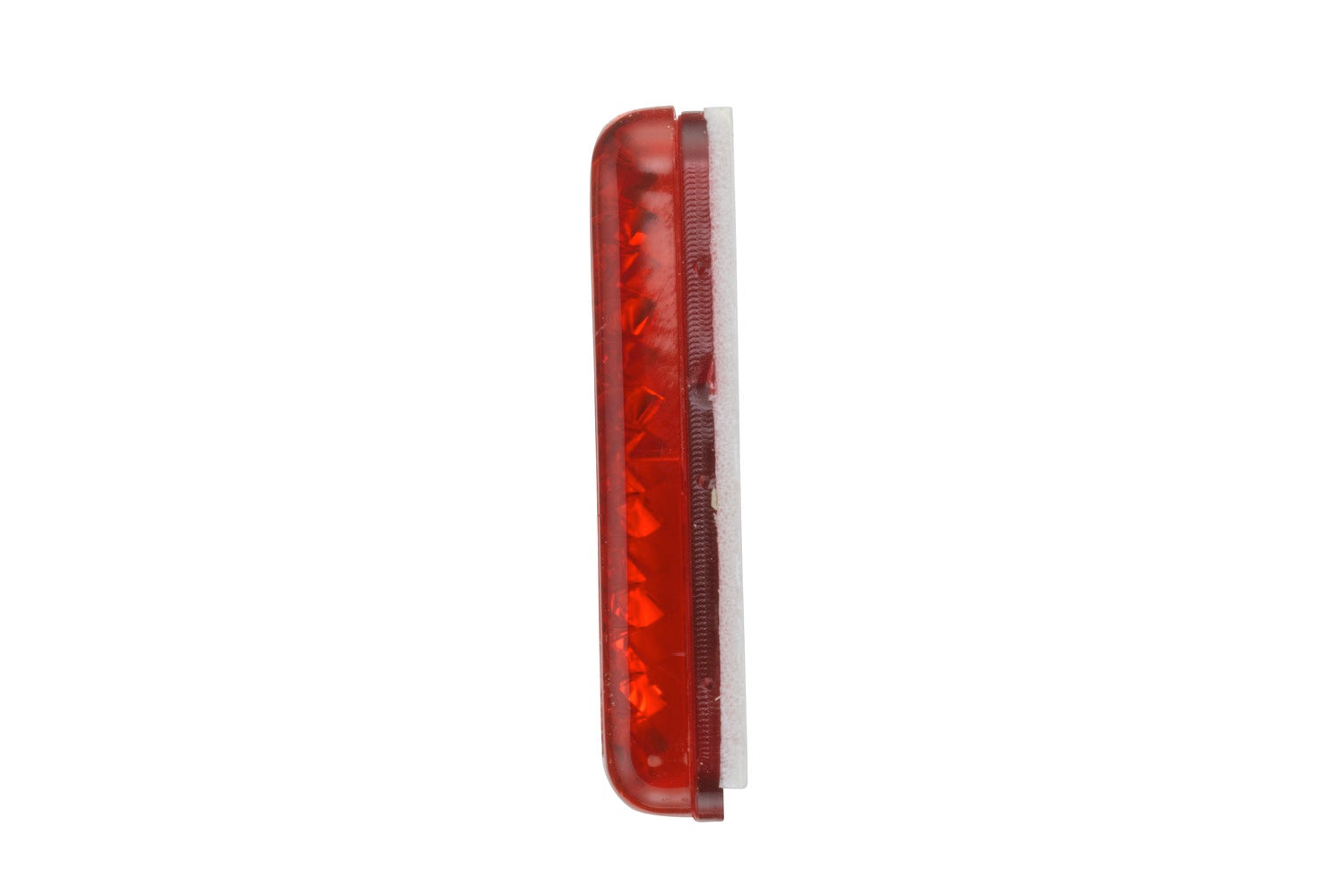

HELLA Reflector - Lens Colour: Red - rectangular - Glued/mounting 8RA004412-021
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Reflector - Lens Colour: red - rectangular - Glued/mounting - for vertical fastening - ECE/SAE/ADR/GGVS/CCC - Rear - Quantity: 20
As additional passive light elements, the reflectors from HELLA improve the visibility of vehicles in the dark and thus make an important contribution to road safety. The HELLA range includes a wide variety of reflectors in different shapes and colours as well as with different mounting options for a wide range of applications. Thanks to optimised reflective optics and high-quality materials, HELLA reflectors offer high functionality and a long service life.
- Horizontal or vertical mounting
- Reflecting area 18 cm²
- Registration Type: ECE/SAE/ADR/GGVS/CCC - fulfils ECE standard: R3
- with reflector
- Length: 69mm - Width: 32mm - Height: 6mm
- with fastening material
- Effective reflective surface: 18cm²
Item Attributes:
Mounting Type: Glued / mounting
Fastening Type: for vertical fastening
Fitting Position: Rear
Light Function: with reflector
Length: 69 mm
Width: 32 mm
Height: 6 mm
Thickness: 6 mm
Housing Type: Synthetic Material Housing
Lens Colour: red
fulfils ECE standard: R3
Quantity: 20
Light functions: 1
Effective reflective surface: 18 cm²
Registration Type: ADR/GGVS / SAE / CCC / ECE
Shape: rectangular
Supplementary Article/Supplementary Info 2: with fastening material
Assembly by qualified personnel required!
OE references: AGCO 3389596M1; AHLMANN 4195548A; AHLMANN 4929006; AMAZONE ND021; ATLAS COPCO 5350658357; BLUEBIRD 9012190; CARRARO 612860; CASE IH 811400920; CASE IH 85804012; CATERPILLAR 227-9859; CATERPILLAR 2279859/V; CHRYSLER 04399791; DAF 882085; DEUTZ-FAHR 044 13298; DEUTZ-FAHR 044 13298EY2005-49; DEUTZ-FAHR D04 413298; DOLL 7115913; FENDT 3 389 596 M1; FIAT 4399791; FORD AUSTRALIA EHC13A566A; FORD USA EHC13A566A; HAKO 90-23160-6; HITACHI ZK0448922300; HYDREMA 10001244; HYDREMA 7401464; HYMER 0875900-00; HYMER 2118276; HYUNDAI 91FH-01800; HYUNDAI (CNJ) 91FH-01800; IVECO 5006000983; IVECO 503334554; JCB 404/C7157; JOHN DEERE LVU26964; KOMATSU 20K4631820; KOMATSU 20K-46-31820; KRAMER 0003321507; KRAMER 1000027030; LIEBHERR 6 004 350; LINDE 000 994 01 02; MASSEY FERGUSON 3 389 596 M01A; MASSEY FERGUSON 3 389 596 M1; MERCEDES-BENZ 000 544 44 05; MERCEDES-BENZ 001 544 08 92; MERCEDES-BENZ A 000 544 44 05; MERCEDES-BENZ A 001 544 08 92; MERLO 113302; NAVISTAR 3868344C1; POLARIS 5452813; ROSENBAUER 02814146; SAME 04413298; SCANIA SP1050580; SCHMITZ CARGOBULL 1076211; SCHWARZMÜLLER 15292; SPIERINGS 450432; STILL 0009940102; STILL 526786; TEREX 5350658357; VDL 40150139; VÖGELE 3515164100; VOLVO 11883216; VOLVO 13892518; VOLVO 21161289; VOLVO RM13892518; VOLVO VOE11883216; YANMAR 5350658357; ZIEGLER 146973
