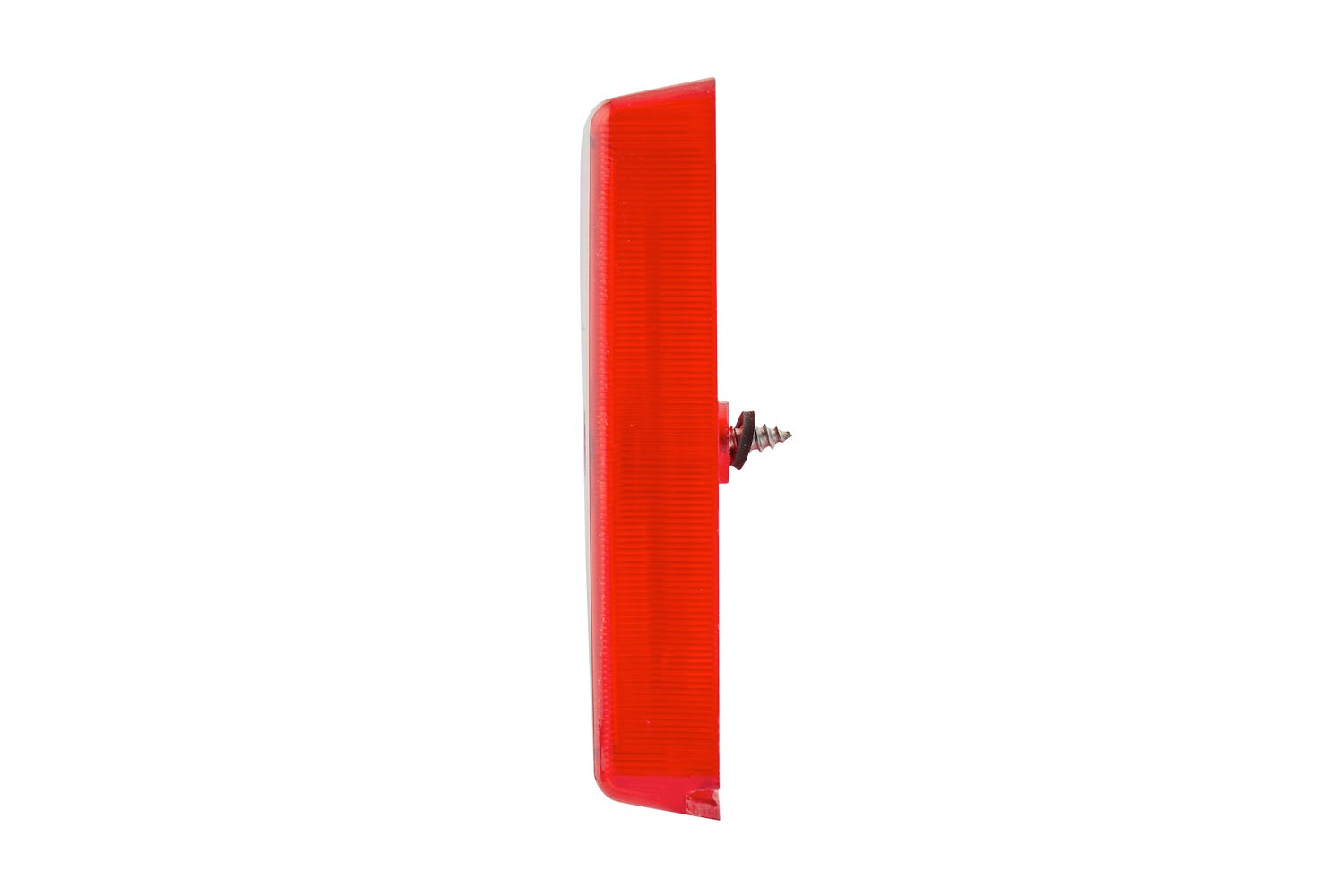

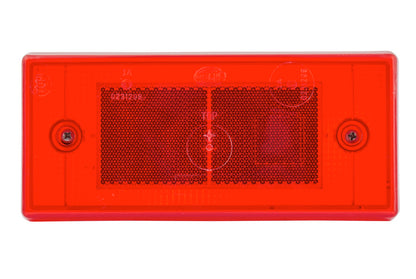

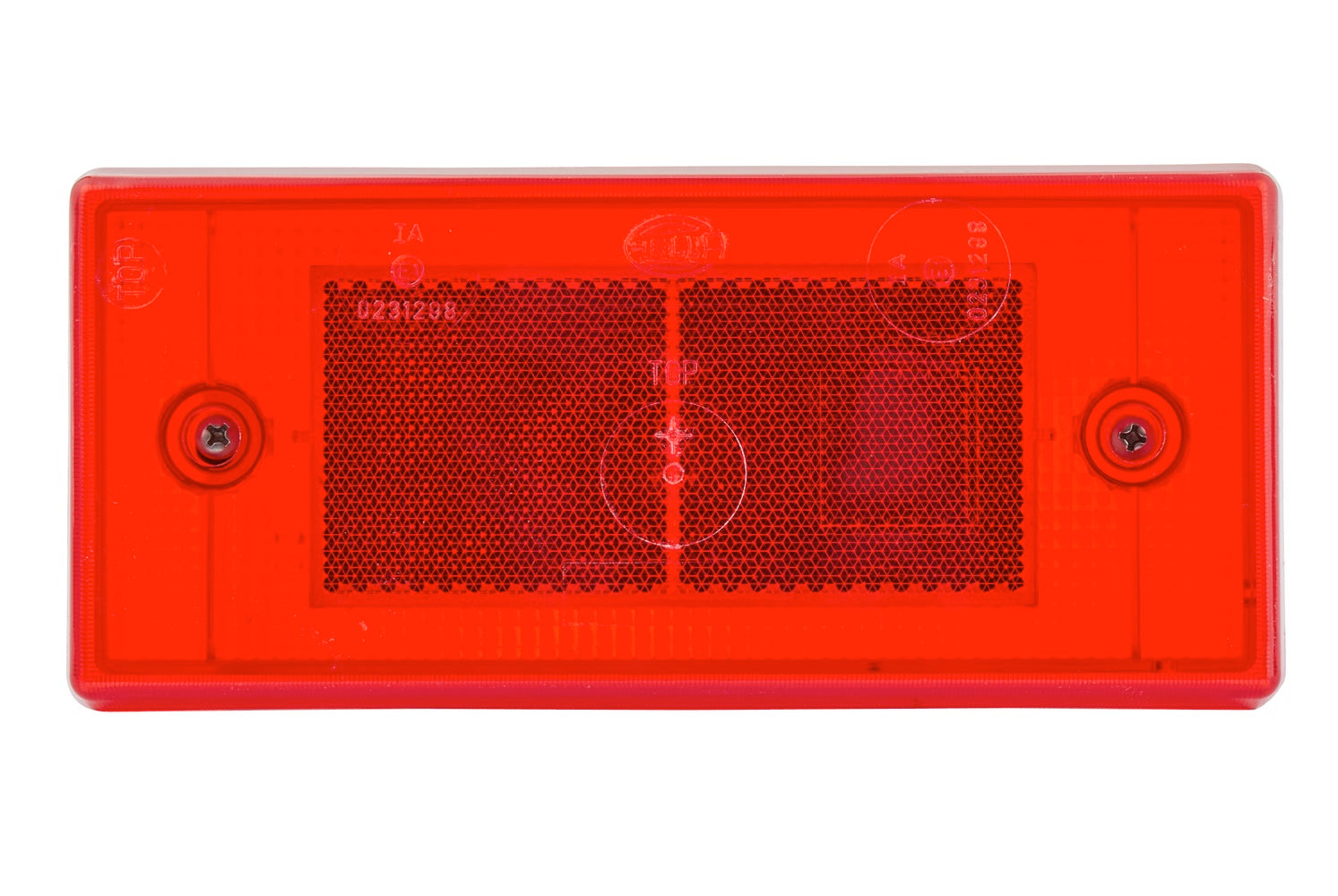

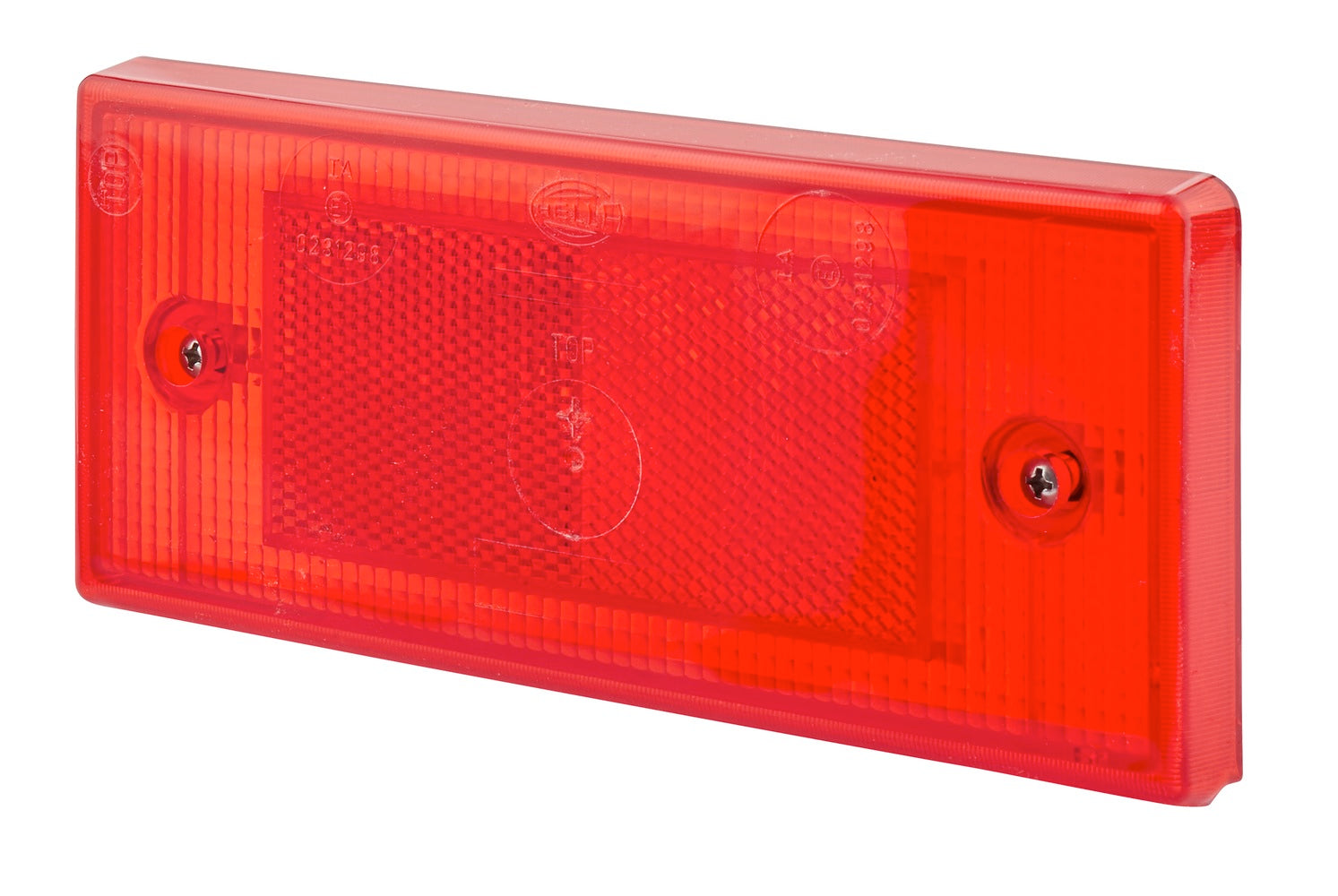

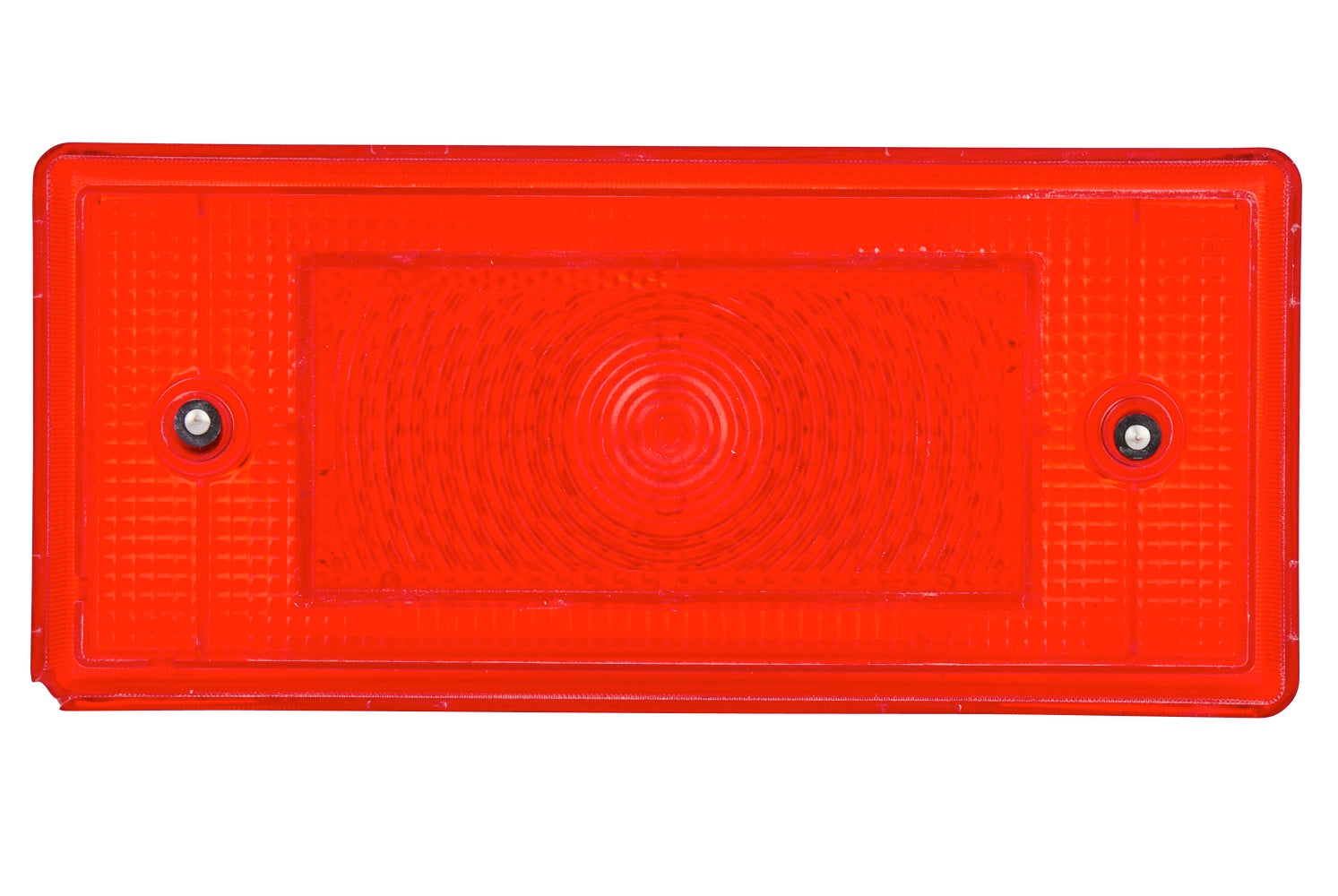

HELLA Reflector - Lens Colour: Red - rectangular - Screw Connection/mounting 8RA003734-101
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Reflector - Lens Colour: red - rectangular - Screw Connection/mounting - for horizontal fastening - ECE - Rear - Quantity: 1
As additional passive light elements, HELLA's reflectors improve the visibility of vehicles in the dark and thus make an important contribution to road safety. The HELLA range includes a wide variety of reflectors in different shapes and colours as well as with different mounting options for a wide range of applications. Thanks to optimised reflective optics and high-quality materials, HELLA reflectors offer high functionality and a long service life.
- Red reflector for horizontal or vertical mounting - with ECE approval
- Effective reflective surface: 54 cm²

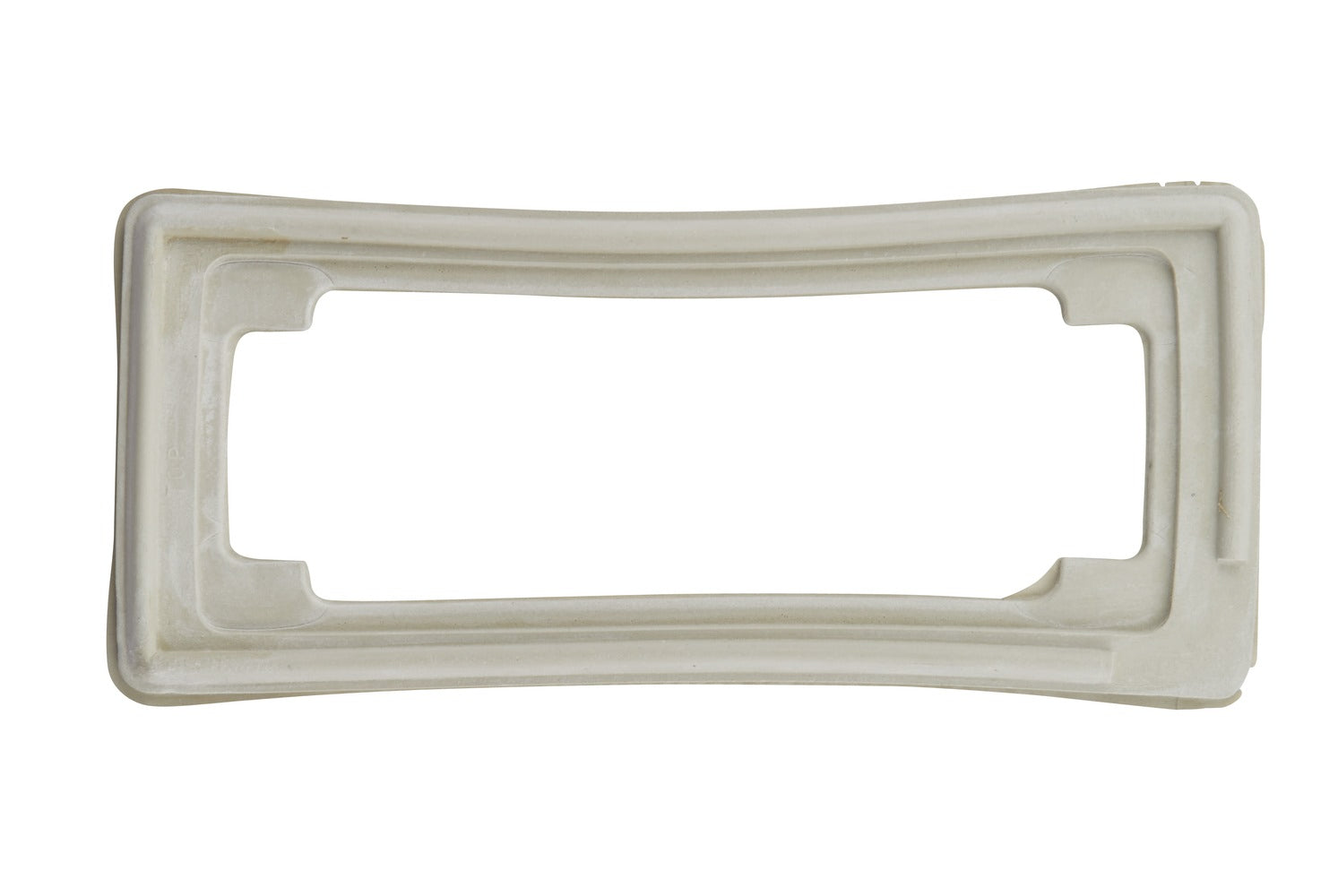

- With rubber base, 2 fixing screws B3.9 x 22
- Registration Type: ECE - fulfils ECE standard: R3
- with reflector
- Length: 196mm - Width: 88mm - Height: 20mm
- with bolts/screws
Item Attributes:
Mounting Type: Screw Connection / mounting
Fastening Type: for horizontal fastening
Fitting Position: Rear
Width: 88 mm
Length: 196 mm
Height: 20 mm
Thickness: 20 mm
Light Function: with reflector
Light functions: 1
fulfils ECE standard: R3
Effective reflective surface: 54 cm²
Shape: rectangular
Lens Colour: red
Housing Type: Synthetic Material Housing
Supplementary Article/Supplementary Info 2: with bolts/screws
Registration Type: ECE
Quantity: 1
Assembly by qualified personnel required!
OE references: ATLAS COPCO 6161265; LEYLAND DAF VCS128; LIEBHERR 6 204 631; LIEBHERR 6 204 631 03; SAAB 40 354; SCANIA 440354; TEREX 6161265; VAN HOOL 660744057; VDL 660744057; VDL 745462100; VOLVO 14050400; VOLVO MA14050400; VOLVO VCS128
