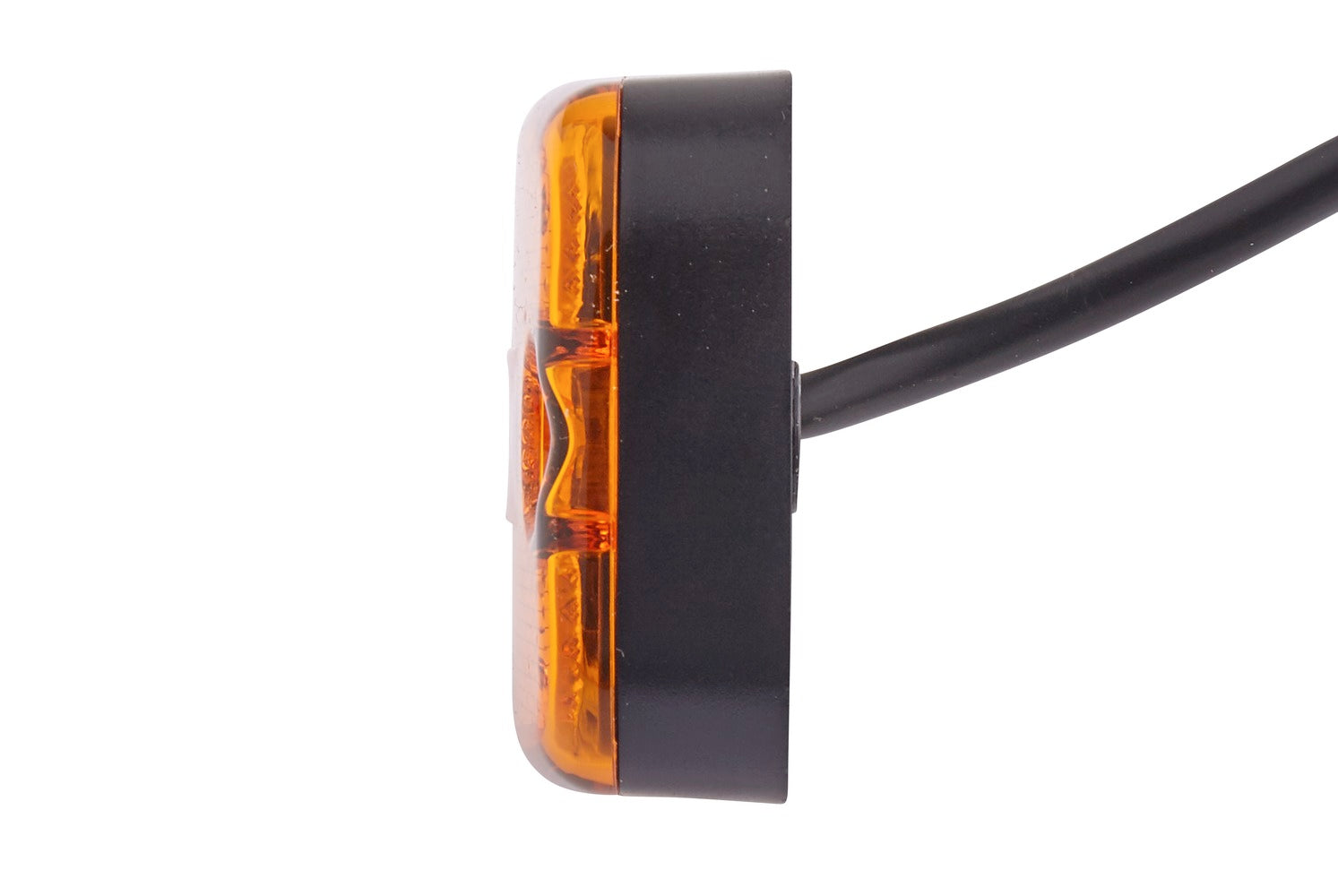

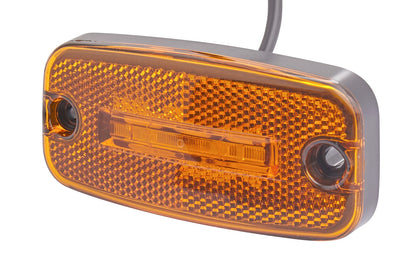

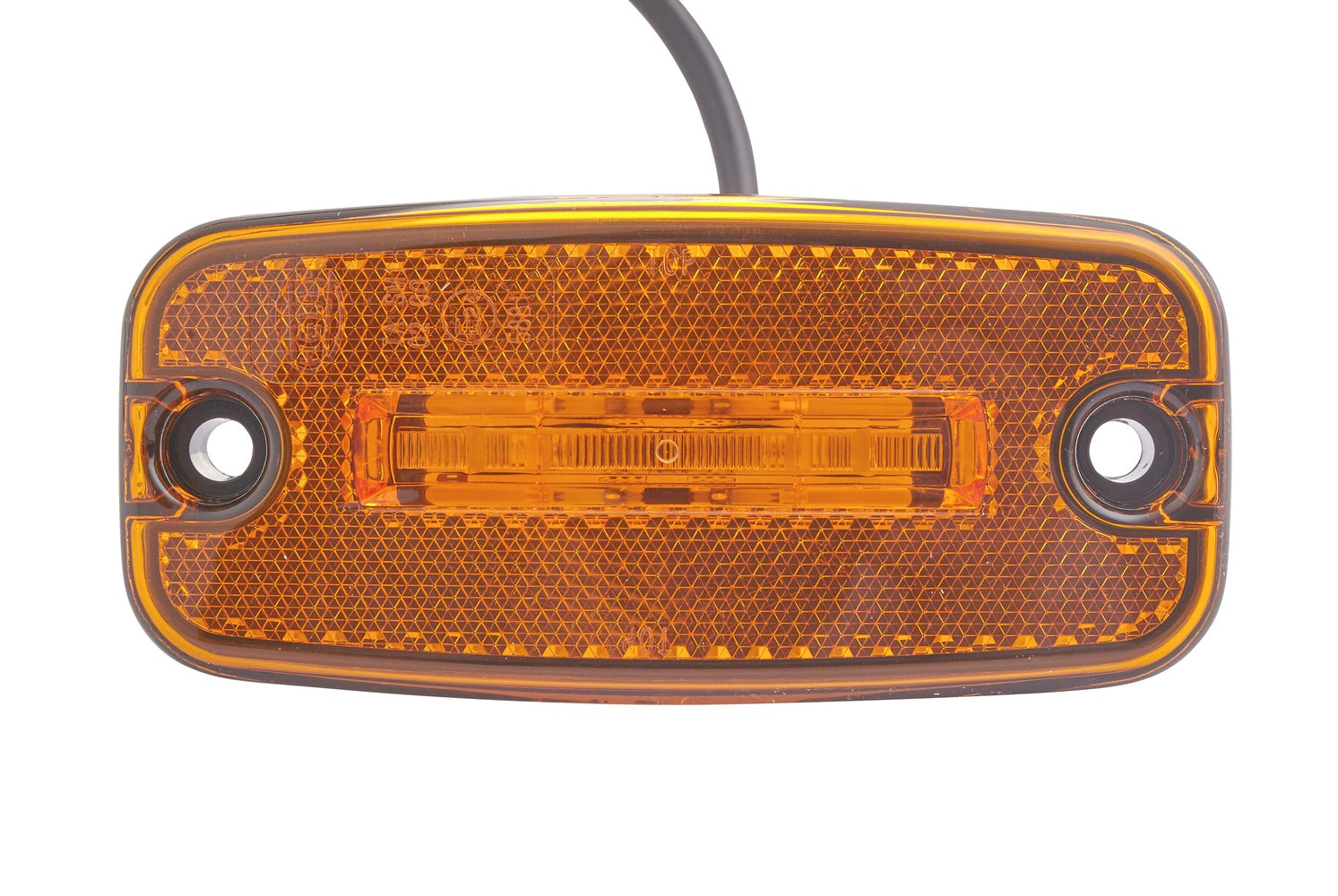

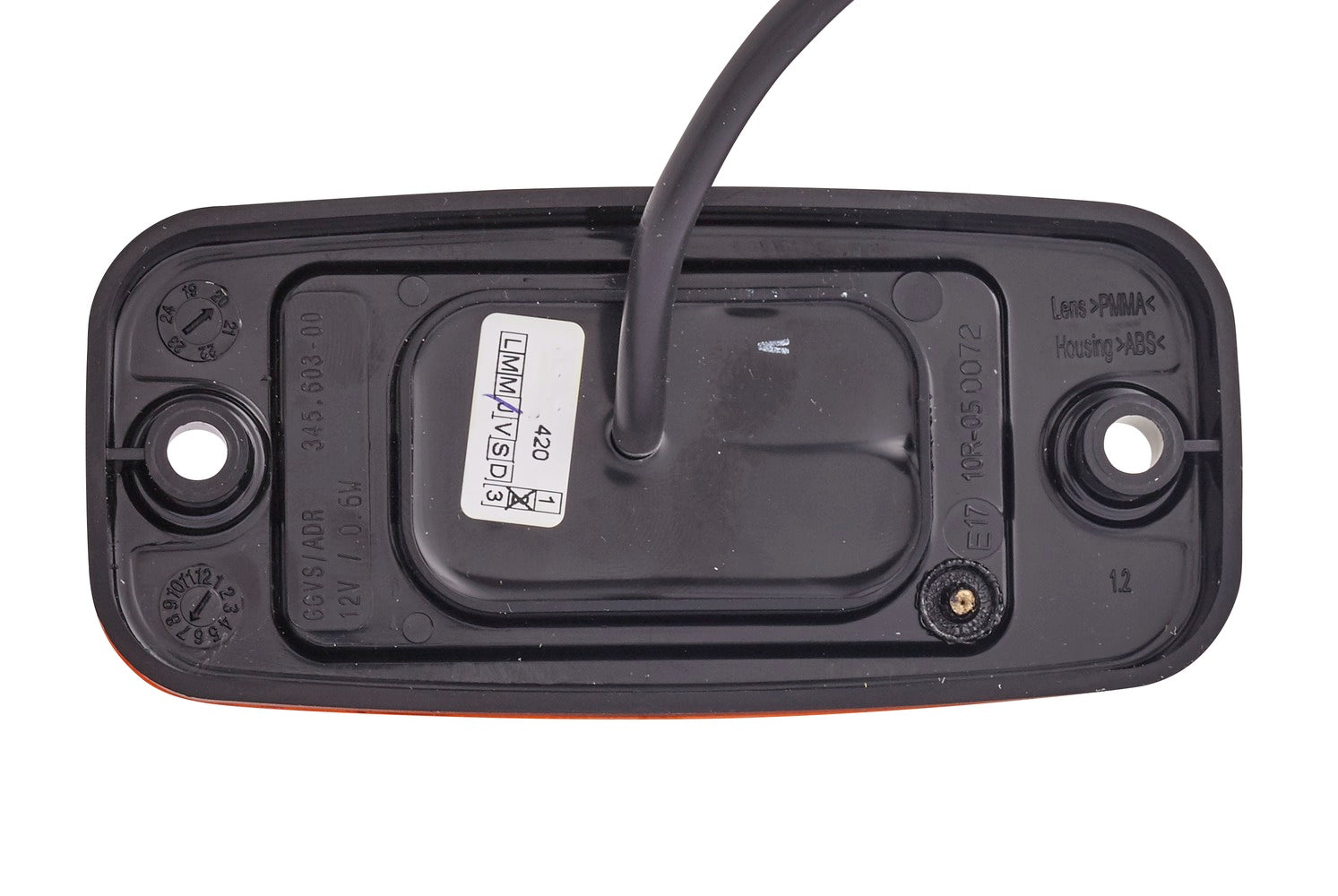

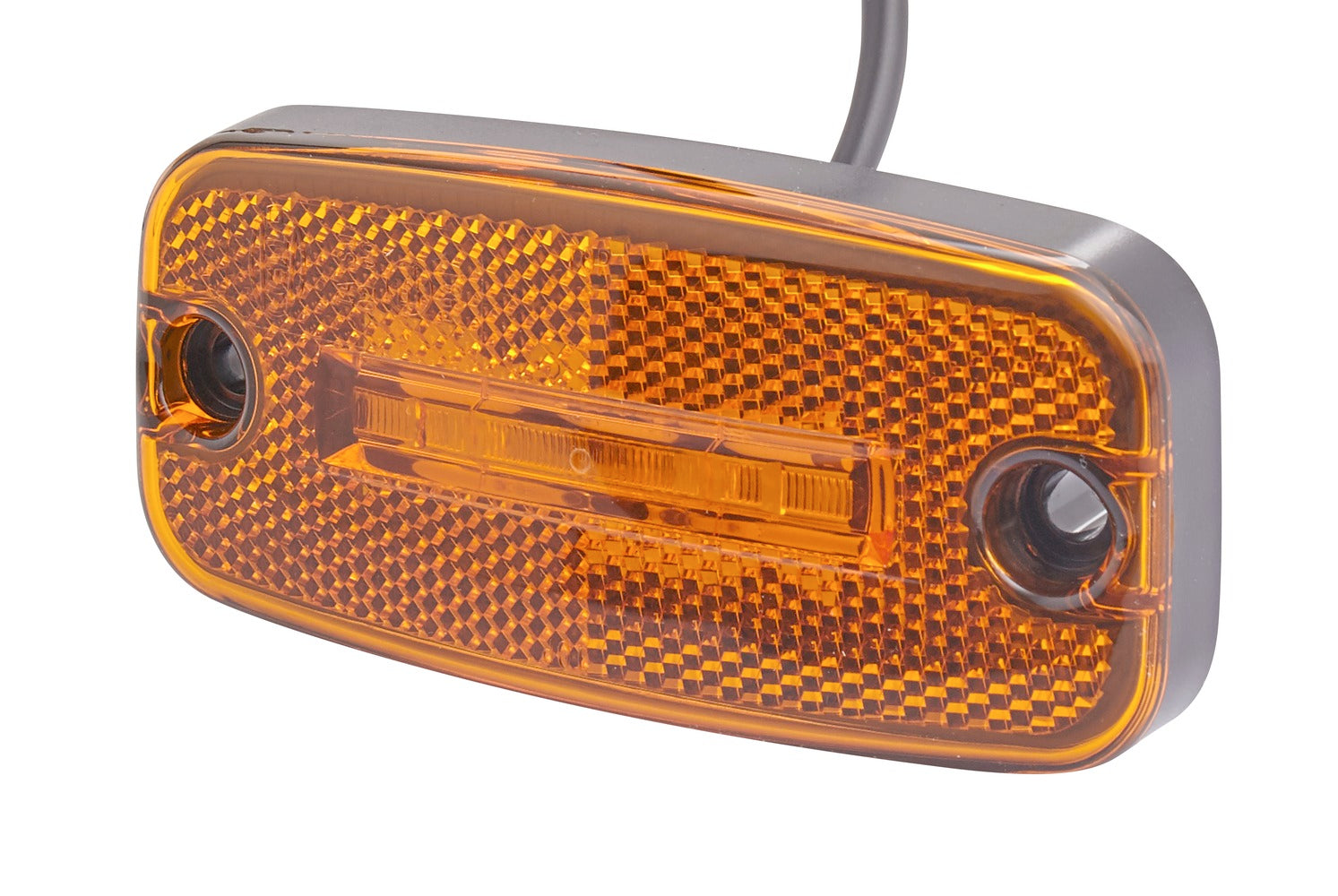

HELLA Side Marker Light - LED - 12V 2PS345600-001
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Side Marker Light - LED - 12V - mounting/Screw Connection - ADR/GGVS - Lens Colour: yellow (amber) - Cable: 500mm - Plug: open cable ends - 2-pin connector - Lateral Mounting - Quantity: 1
- The innovative Light Guide technology has been applied for the first time in a side marker luminaire. It creates a slim, linear night design. The homogeneous light distribution is pioneering
- Sealed to withstand high pressure cleaning: Tested according to HELLA standard 67101, IP 6K9K, protected against high pressure and steam jet cleaning
- LED technology offers maximum reliability and vibration resistance. An extremely long service life of the luminaire is therefore achieved
- By combining efficient light-emitting diodes (LEDs) and precision optics in Light Guide design, the luminaires achieve an optimum signal pattern with extremely low power consumption
- The Light-Guide optics create a continuous light band. This combines a stylish, linear design with optimum visibility in all side marking, position and clearance light functions
- Length: 111mm - Width: 51mm - Height: 21mm - Lamp Type: LED - Number of LEDs: 2 - without holder - with pipe
- Light functions: 2 - with reflector/with side marker light (LED)
Item Attributes:
Mounting Type: Screw Connection / mounting
Fastening Type: for horizontal fastening
Fitting Position: Lateral Mounting
Lamp Type: LED
Light Function: with reflector / with side marker light (LED)
Light Design: LED
LED colour: yellow (amber)
Voltage: 12 V
Power consumption: 0.6 W
Length: 111 mm
Width: 51 mm
Height: 21 mm
Cable: 500 mm
Plug: open cable ends
Number of pins: 2 -pin connector
Housing Type: Housing with Plastic Lid
Housing Colour: black
Lens Colour: yellow (amber)
Prot.type (IP Code): IP6K9K
fulfils ECE standard: R10 / R3 / R91
Quantity: 1
Light functions: 2
Number of LEDs: 2
SVHC: 1303-96-4; Disodium tetraborate, anhydrous / 7439-92-1; Lead
Registration Type: ADR/GGVS
Supplementary Article/Supplementary Info: without holder
Supplementary Article/Supplementary Info 2: with pipe
Assembly by qualified personnel required!
OE references: DAF 1963262; DAF 1963324; GOLDHOFER 130446; KRAMER 1000402457
