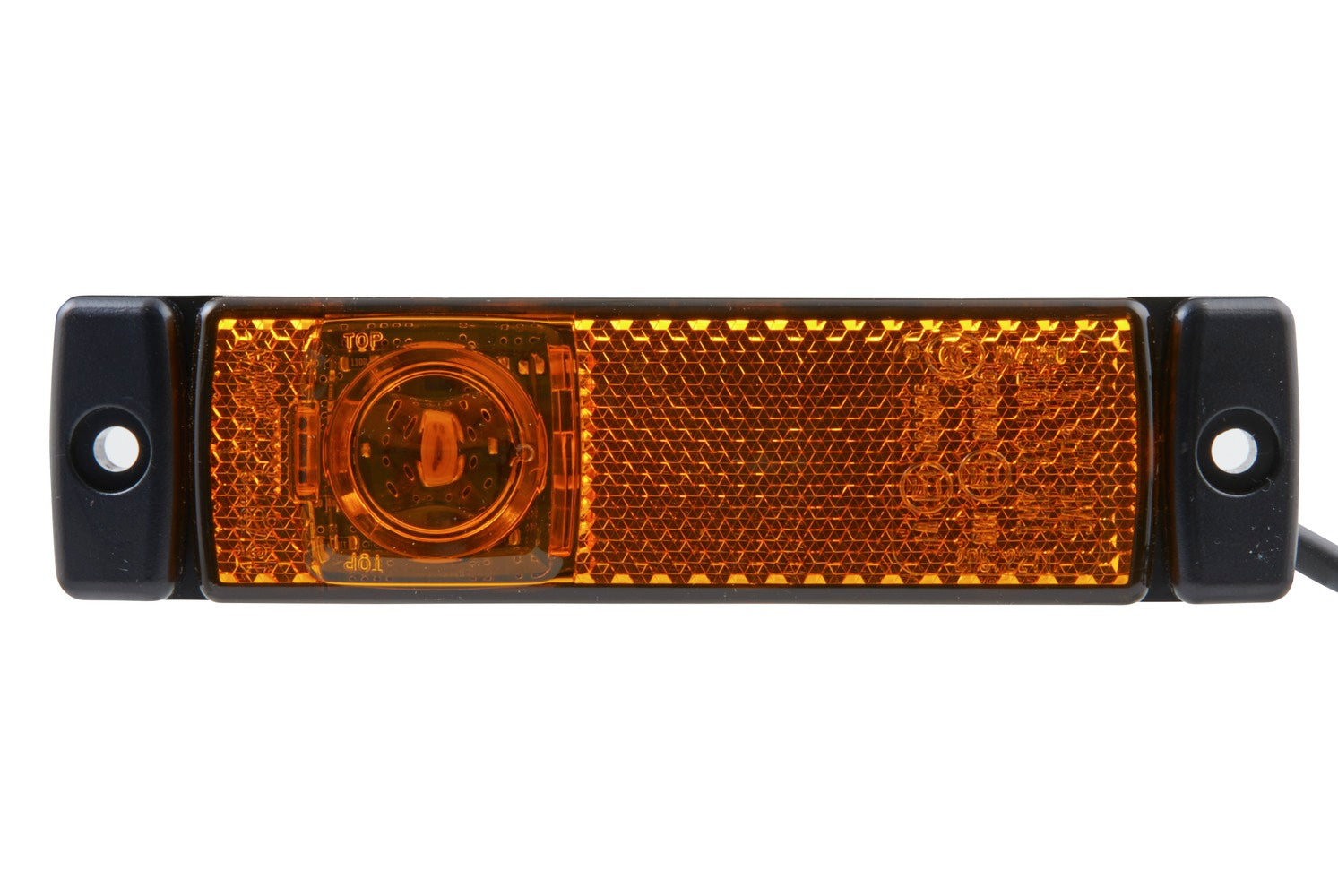

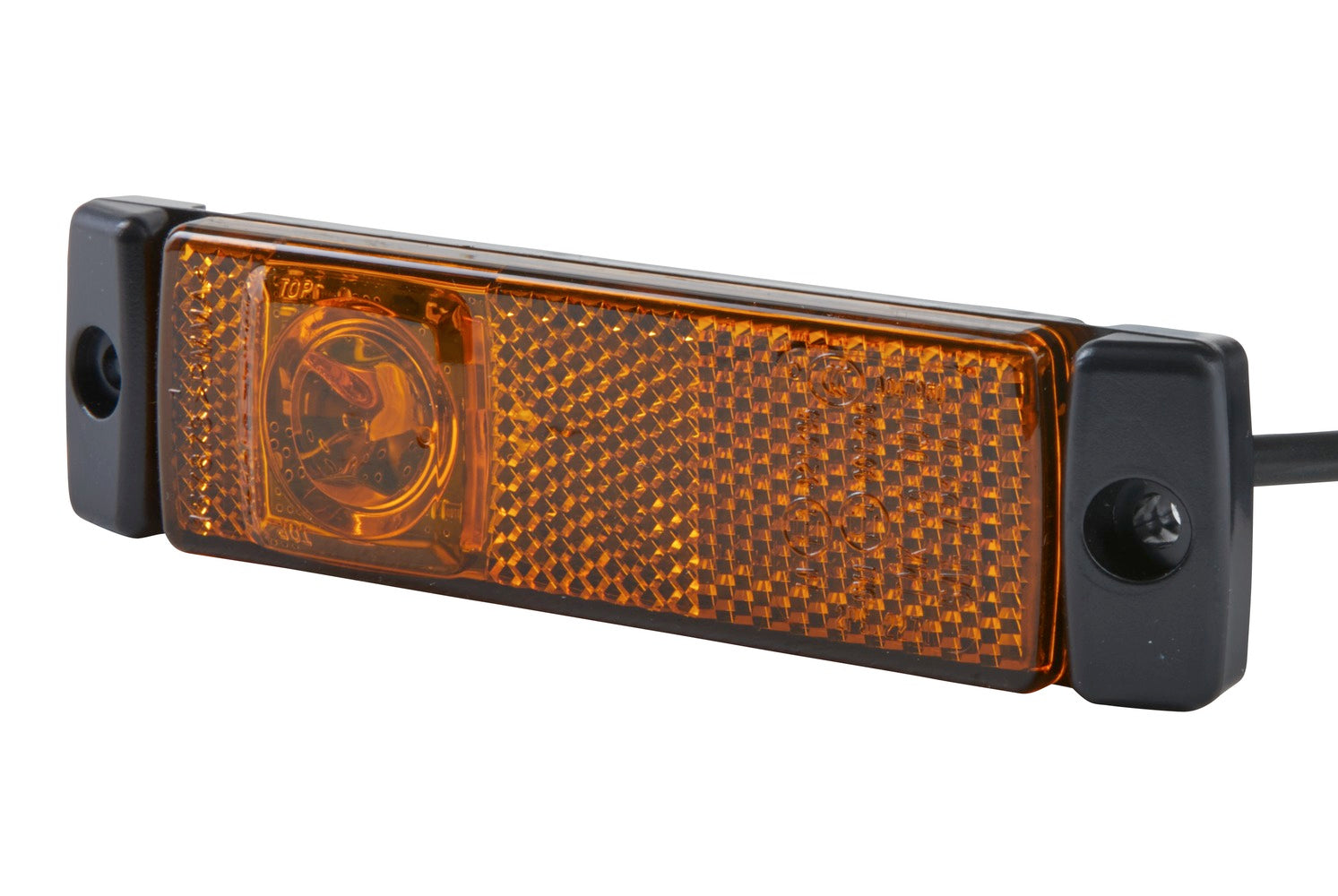

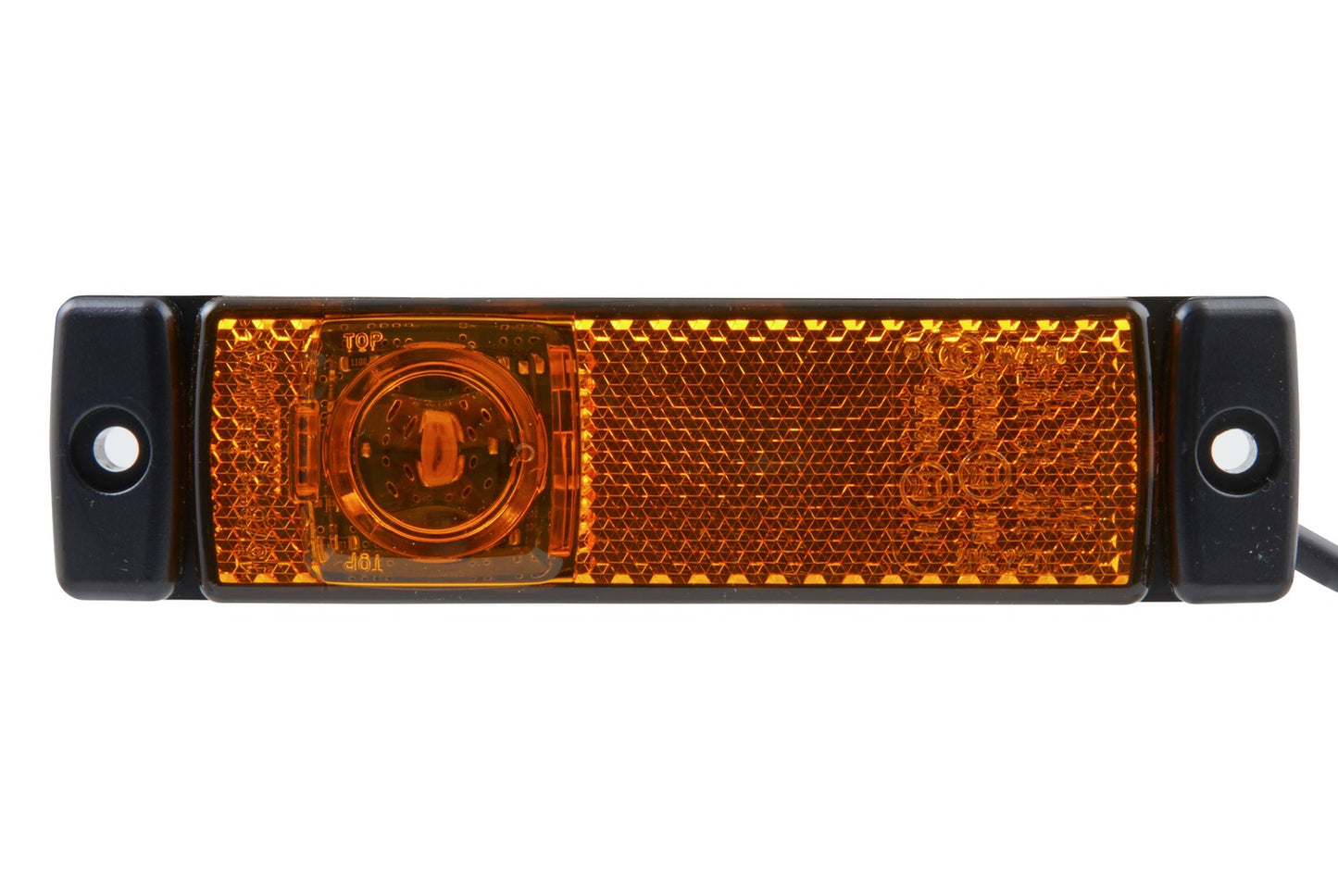

HELLA Side Marker Light - LED - 24V 2PS008645-361
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Side Marker Light - LED - 24V - Screw Connection/mounting - ADR/GGVS - Lens Colour: yellow (amber) - Cable: 2000mm - Plug: EasyConn - 2-pin connector - right/left - Quantity: 1
HELLA side marker lights. Side marker lights are an important safety feature that make the outline of a vehicle more visible to other road users, especially in the dark. Especially vehicles with large dimensions such as combine harvesters, long transporters, etc. can be displayed much better in this way. In some countries, active side marker lights are required by law from a certain vehicle length. HELLA side marker lights meet the highest requirements even in demanding fields of application and impress with their durability and the well-known high HELLA quality.
- LED side marker reflector luminaire for horizontal surface-mounting (left / right) - with ECE approval, ADR/GGVS-tested
- The side marker light has 2 light functions: Side marker light / reflector

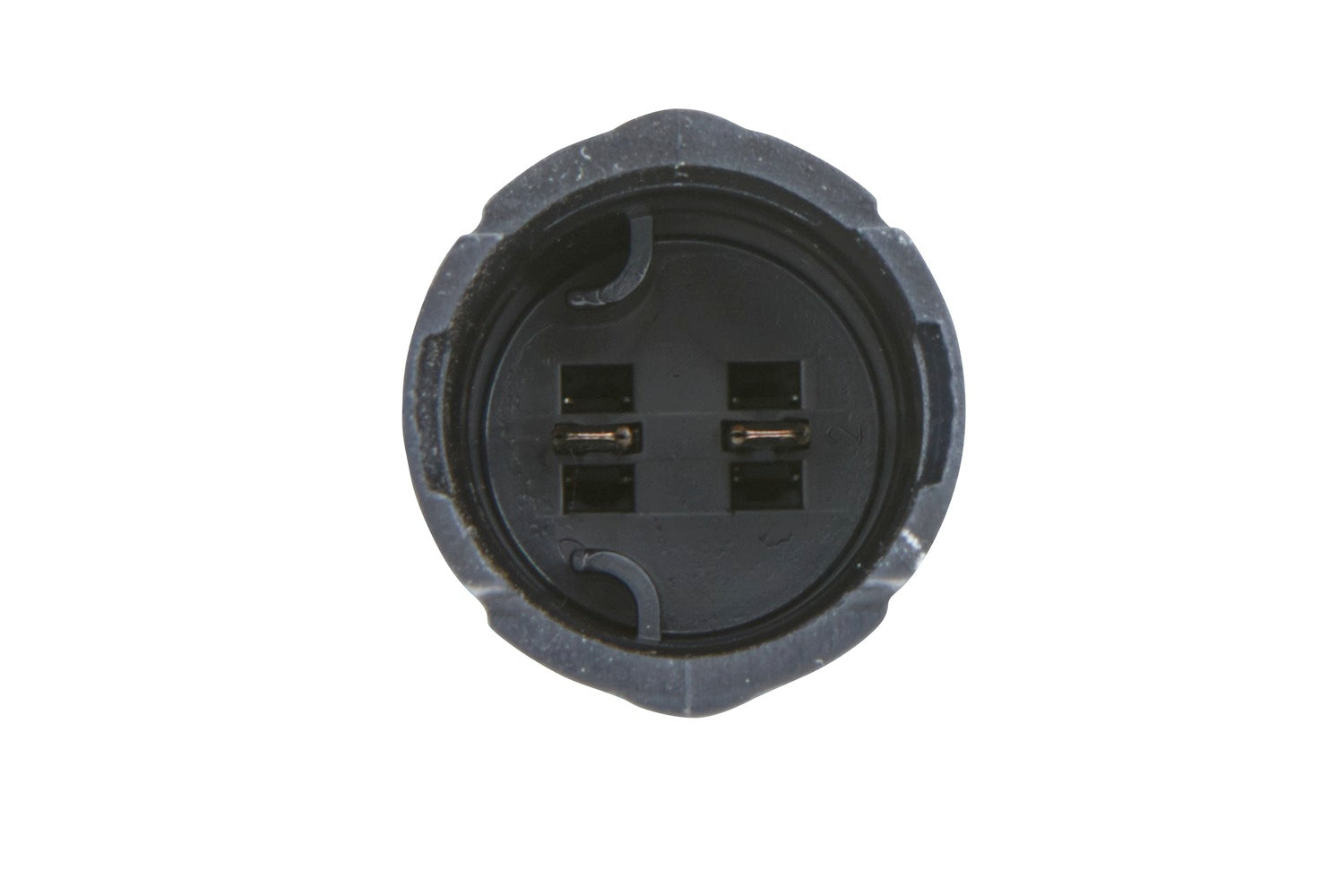

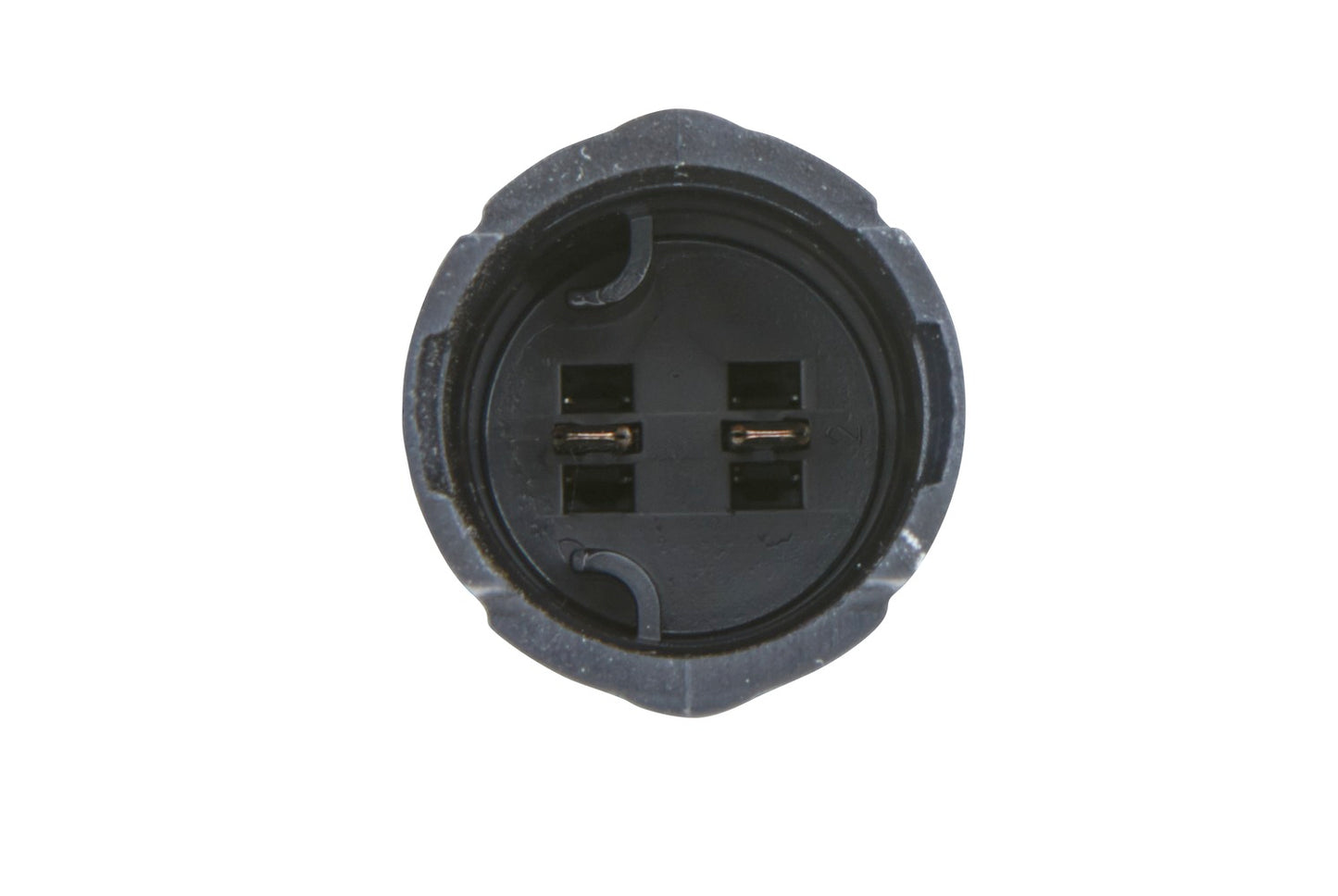

- With 1 yellow LED 24V1.2W, with 2-pole EasyConn receptacle, with 2,000 mm cable, black housing, 2 holes for fixing screws B4.2
- Length: 130mm - Width: 32mm - Height: 16mm - Lamp Type: LED - Number of LEDs: 1 - with pipe
- Light functions: 2 - with side marker light (LED)/with reflector
- Registration Type: ADR/GGVS - fulfils ECE standard: R3/R91 - Prot.type (IP Code): IP6K9K
- Housing with Plastic Lid - Housing Colour: black - Lens Colour: yellow (amber)
Item Attributes:
Mounting Type: Screw Connection / mounting
Fastening Type: for horizontal fastening
Light Design: LED
Lamp Type: LED
Voltage: 24 V
Fitting Position: left / right
Height: 16 mm
Width: 32 mm
Length: 130 mm
Light Function: with side marker light (LED) / with reflector
Light functions: 2
Plug: EasyConn
Prot.type (IP Code): IP6K9K
fulfils ECE standard: R91 / R3
Registration Type: ADR/GGVS
Number of LEDs: 1
Cable: 2000 mm
Housing Type: Housing with Plastic Lid
Housing Colour: black
Lens Colour: yellow (amber)
Power consumption: 1 W
Supplementary Article/Supplementary Info 2: with pipe
Number of pins: 2 -pin connector
Quantity: 1
Assembly by qualified personnel required!
OE references: DAF 1529465; FELDBINDER 1086267; FRUEHAUF L-SA0083-002; LIEBHERR 1 016 761 1; SCANIA 2197417
