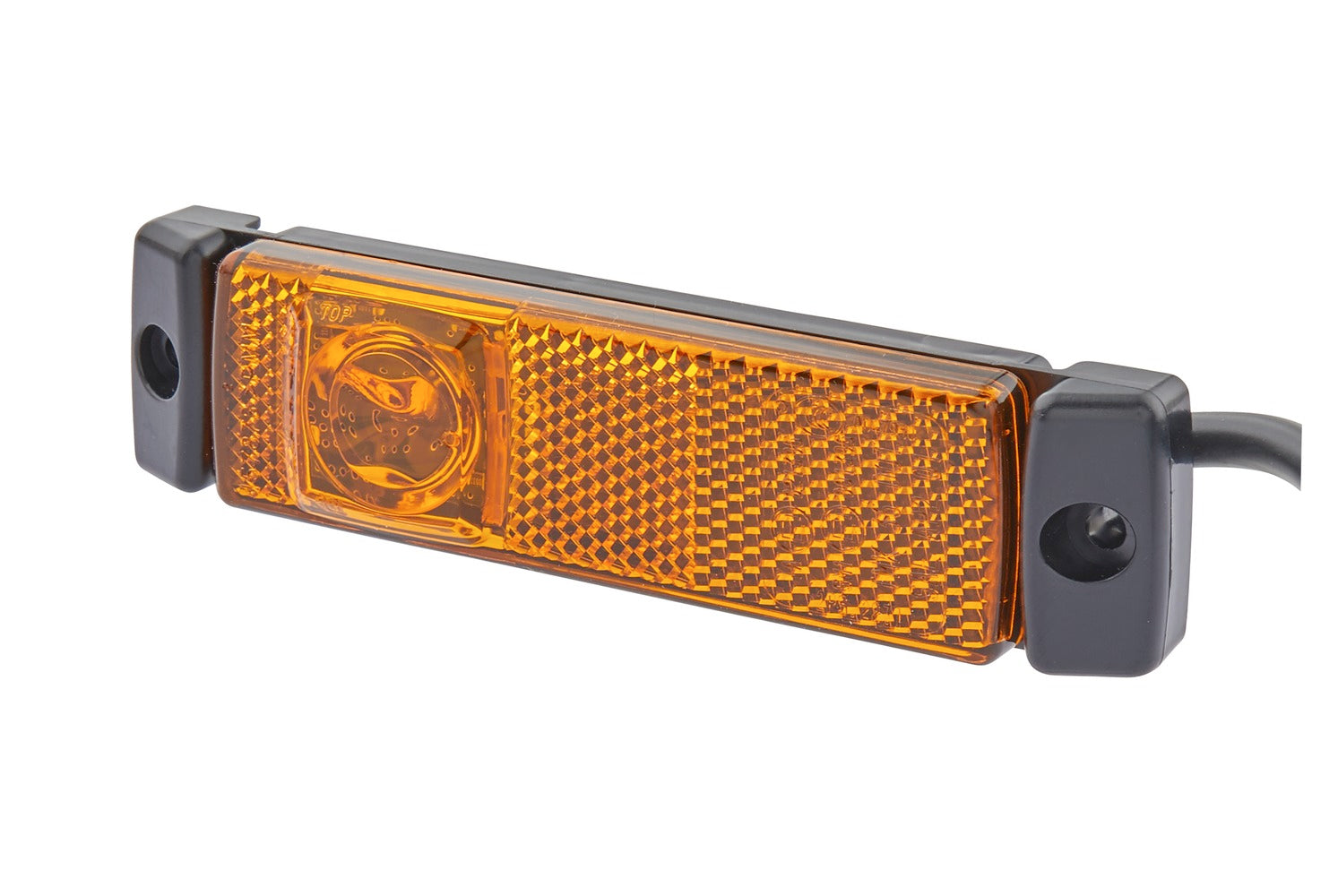

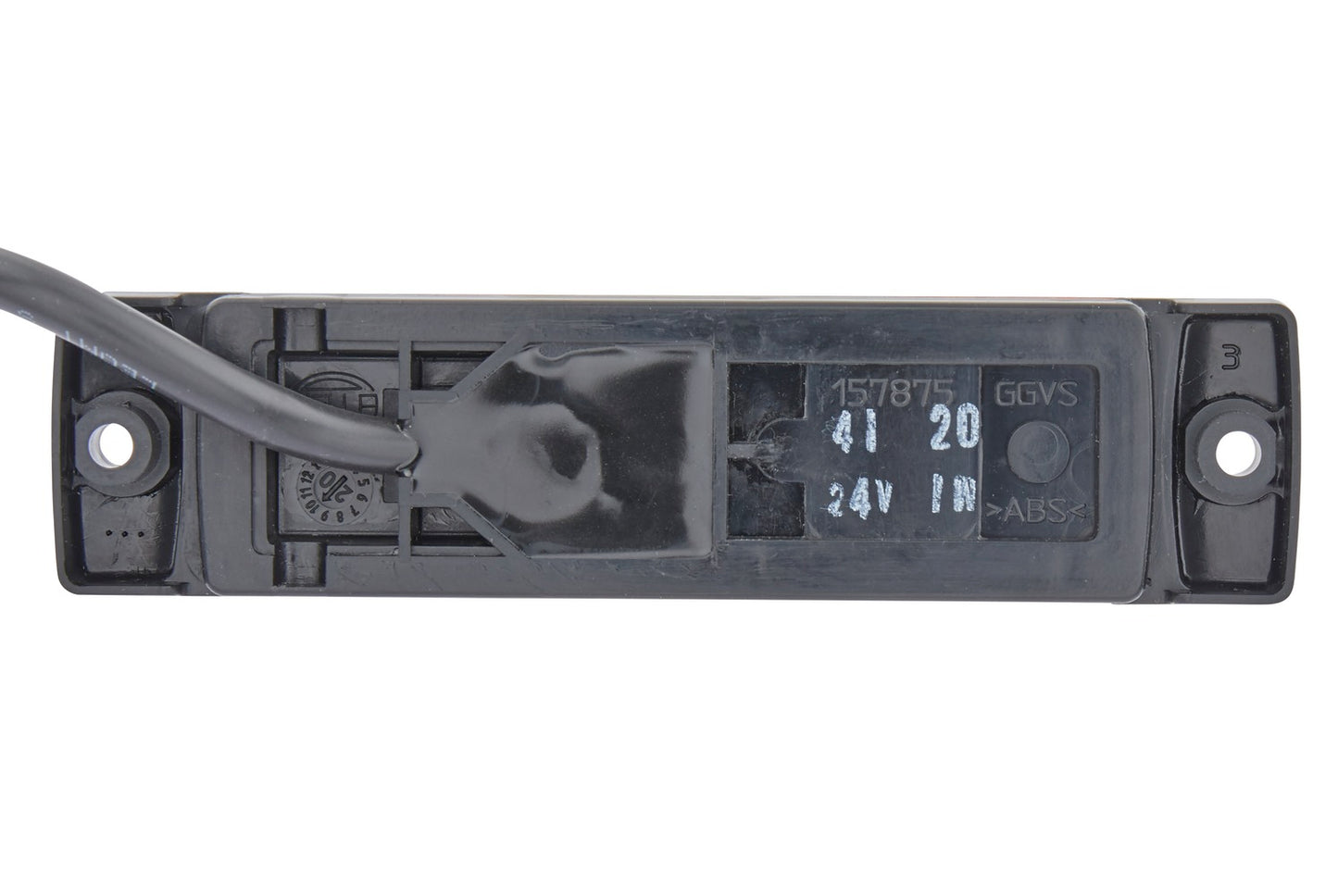

HELLA Side Marker Light - LED - 24V 2PS008645-621
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Side Marker Light - LED - 24V - mounting/Screw Connection - ADR/GGVS - Lens Colour: yellow (amber) - Cable: 1300mm - Plug: Quick Link - 2-pin connector - left/right - Quantity: 1
HELLA side marker lights. Side marker lights are an important safety feature that make the outline of a vehicle more visible to other road users, especially in the dark - particularly useful for vehicles with large dimensions such as combine harvesters, long transporters, etc. In some countries, active side marker lights are required by law from a certain vehicle length. HELLA side marker lights meet the highest requirements even in demanding fields of application and impress with their durability and the well-known premium HELLA quality.
- 2 holes for fixing screws B4.2
- Flash function suitable
- Length: 130mm - Width: 32mm - Height: 32mm - Lamp Type: LED - Number of LEDs: 1 - with pipe
- Light functions: 2 - with reflector/with side marker light (LED)
- Registration Type: ADR/GGVS - fulfils ECE standard: R3/R91 - Prot.type (IP Code): IP6K9K
- Housing with Plastic Lid - Housing Colour: black - LED colour: yellow (amber) - Lens Colour: yellow (amber)
- Mounting Type: mounting/Screw Connection - Fastening Type: for horizontal fastening
Item Attributes:
Mounting Type: Screw Connection / mounting
Fastening Type: for horizontal fastening
Fitting Position: right / left
Lamp Type: LED
Light Function: with reflector / with side marker light (LED)
Light Design: LED
LED colour: yellow (amber)
Voltage: 24 V
Power consumption: 1 W
Length: 130 mm
Width: 32 mm
Height: 32 mm
Cable: 1300 mm

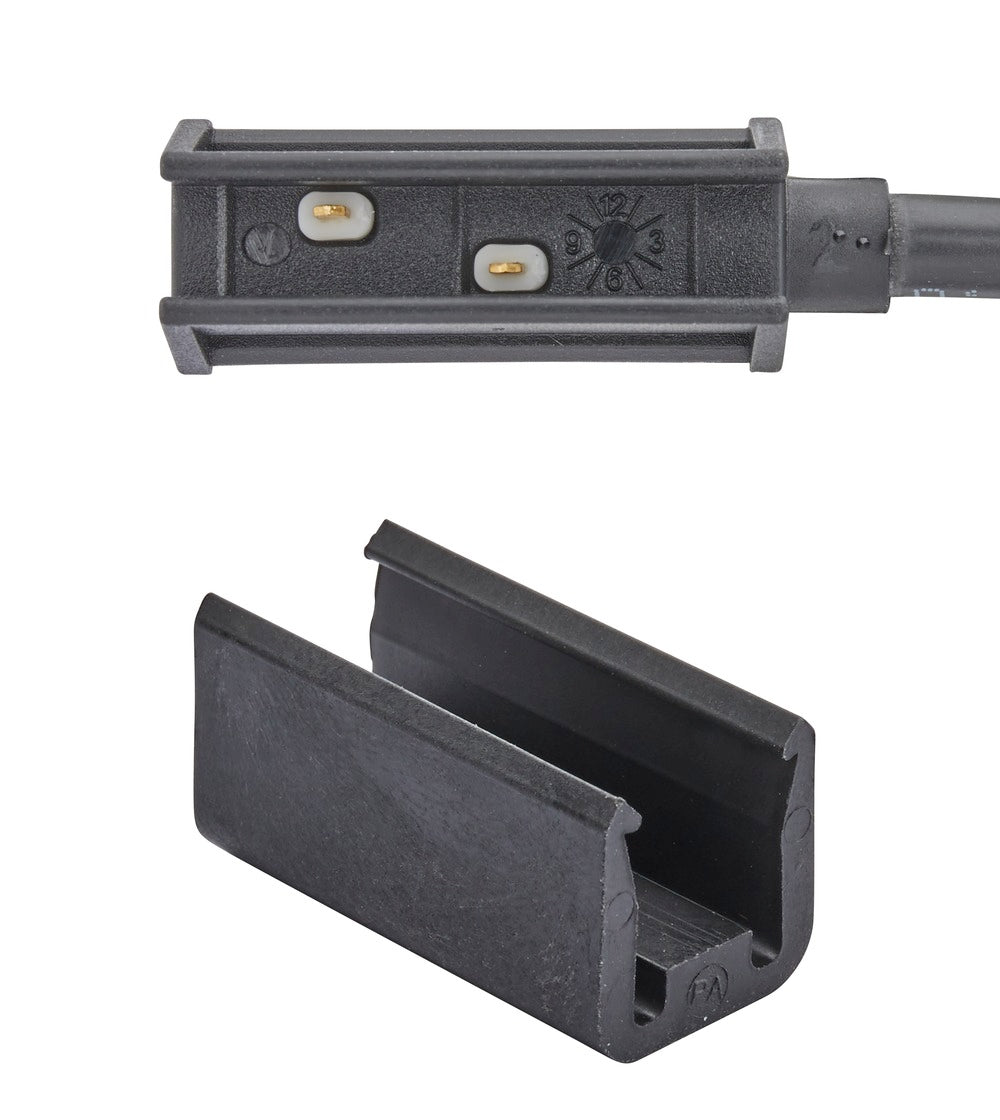

Plug: Quick Link
Number of pins: 2 -pin connector
Housing Type: Housing with Plastic Lid
Housing Colour: black
Lens Colour: yellow (amber)
Prot.type (IP Code): IP6K9K
fulfils ECE standard: R91 / R3
Quantity: 1
Light functions: 2
Number of LEDs: 1
Registration Type: ADR/GGVS
Supplementary Article/Supplementary Info 2: with pipe
Assembly by qualified personnel required!
OE references: CARNEHL 34100; DAF 1525754; HÜFFERMANN 2-EL0115-1800; HUMBAUR 415.00056; KÄSSBOHRER 7-534-131-102; MAN 1525754; MAN ZF920006670; SCANIA 2197418; SCHMITZ CARGOBULL 1044787; SCHWARZMÜLLER 74002; SOMMER 2801141002; SOMMER 2801263002; WIELTON M0703020102
