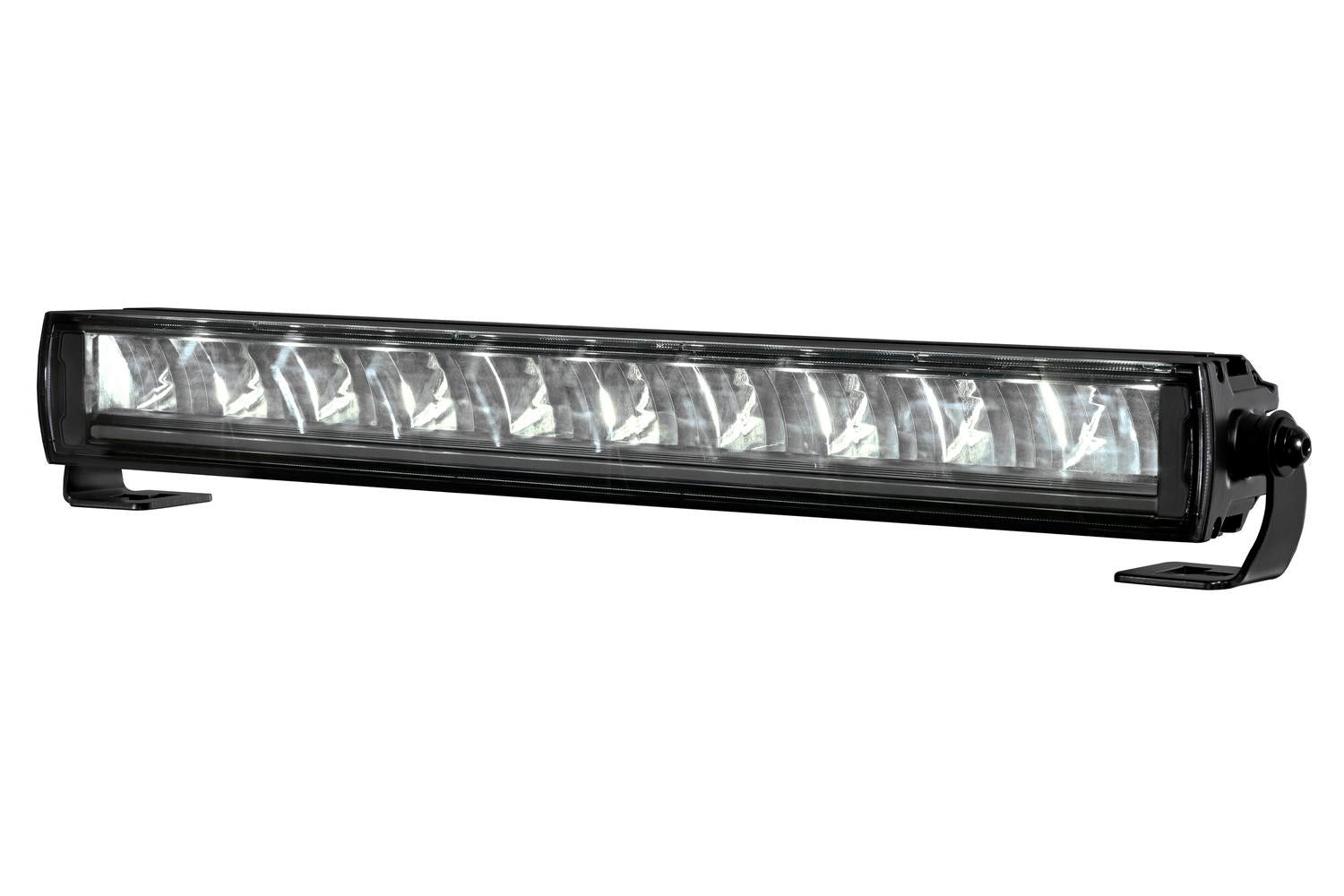

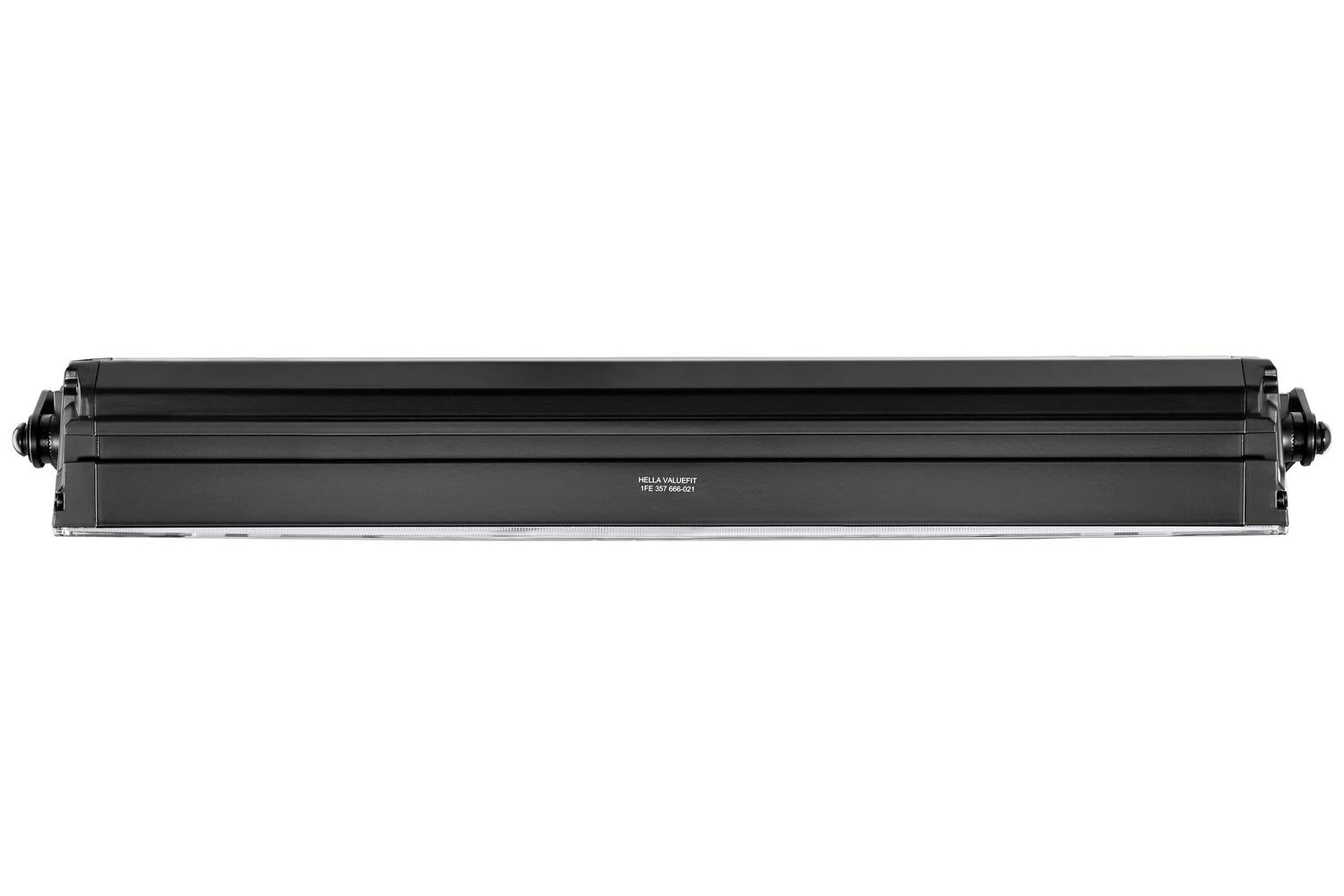

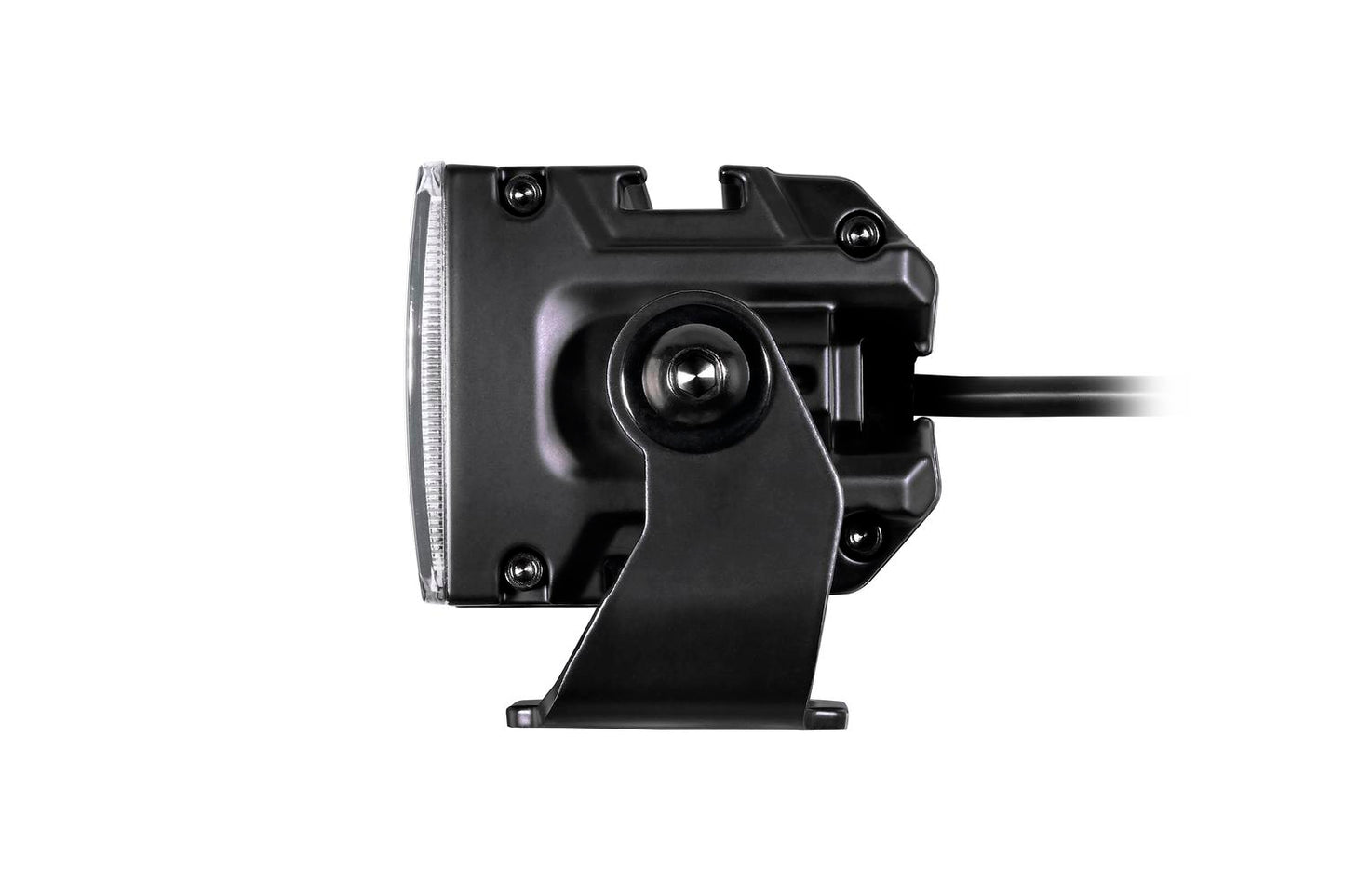

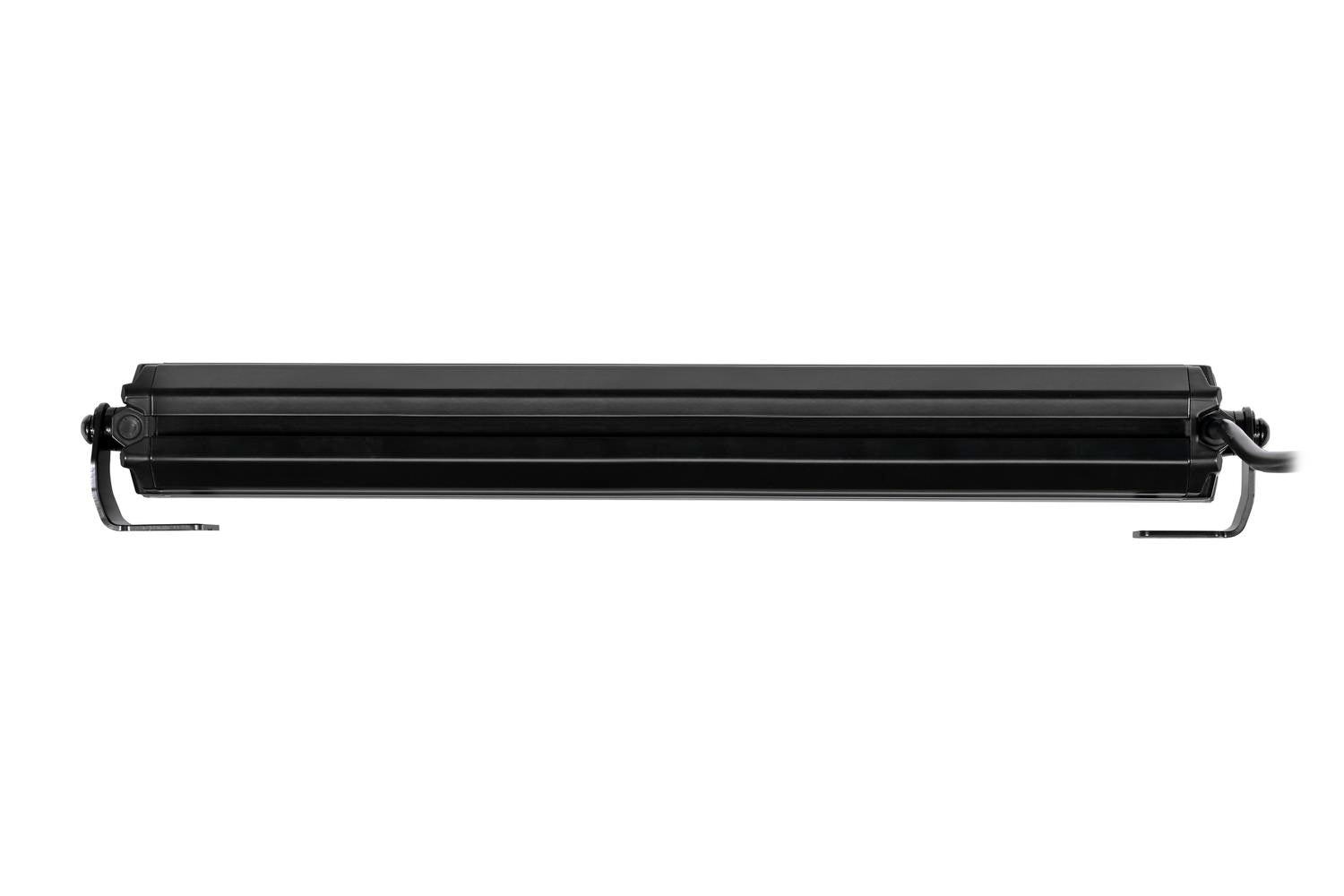

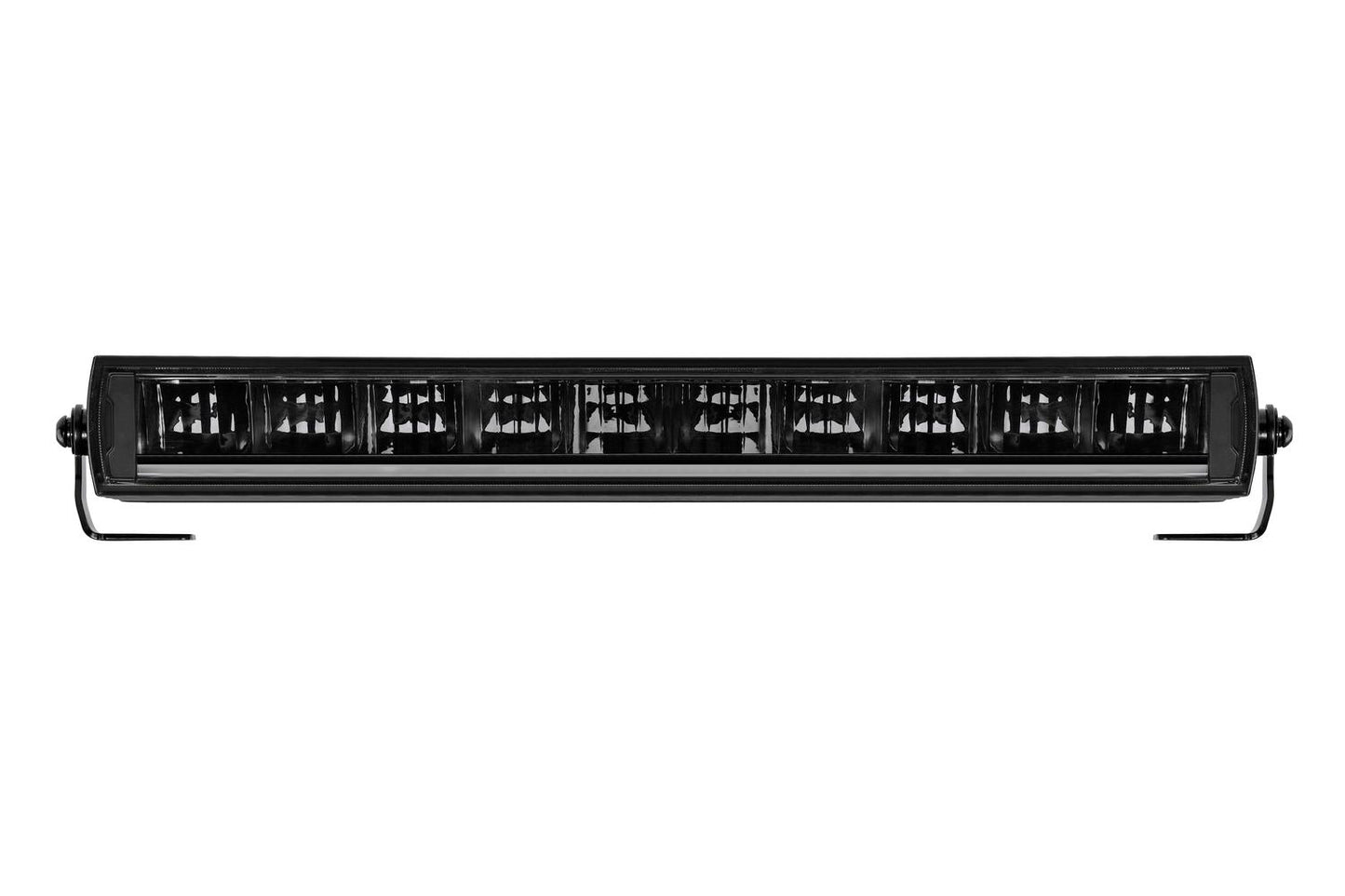

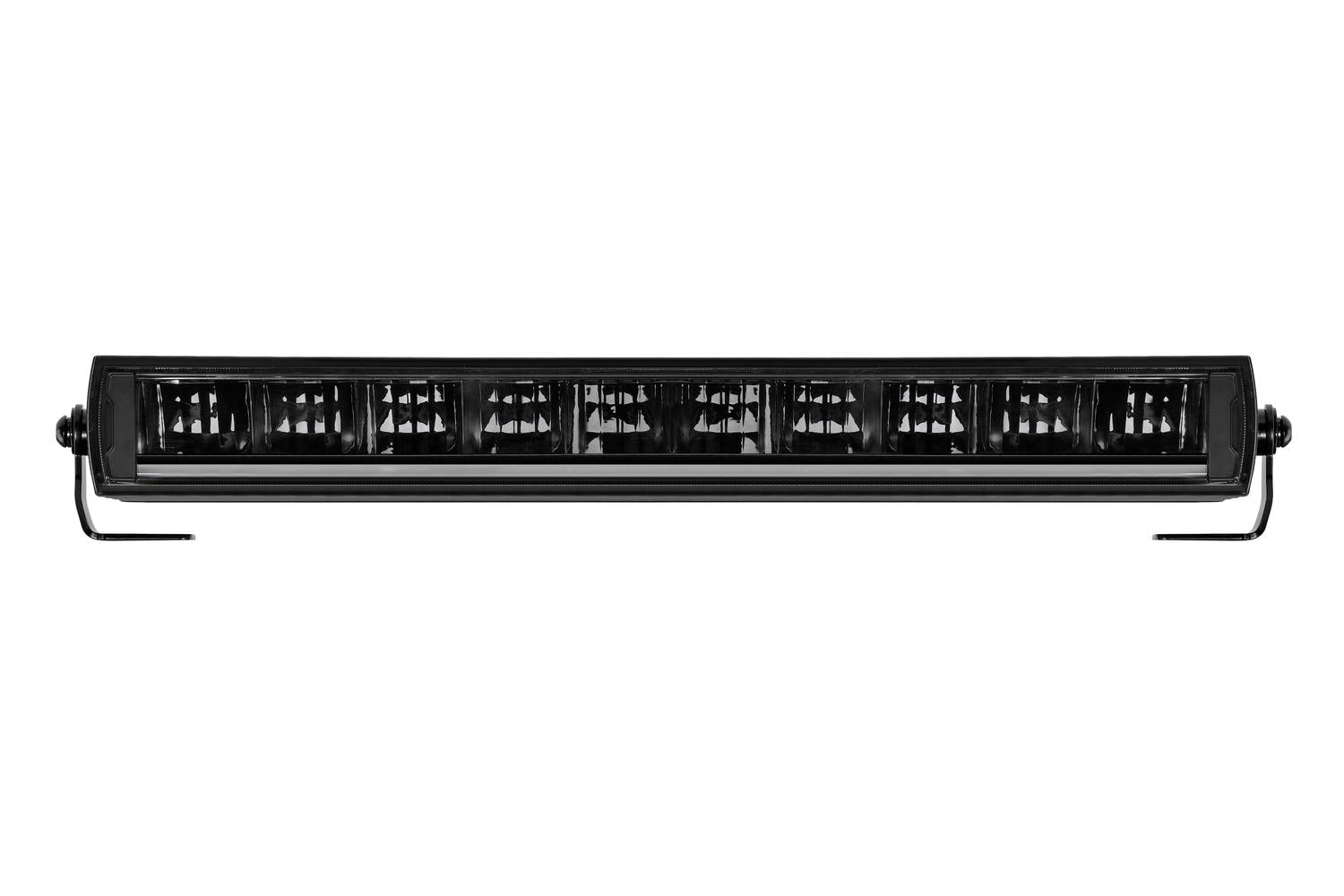

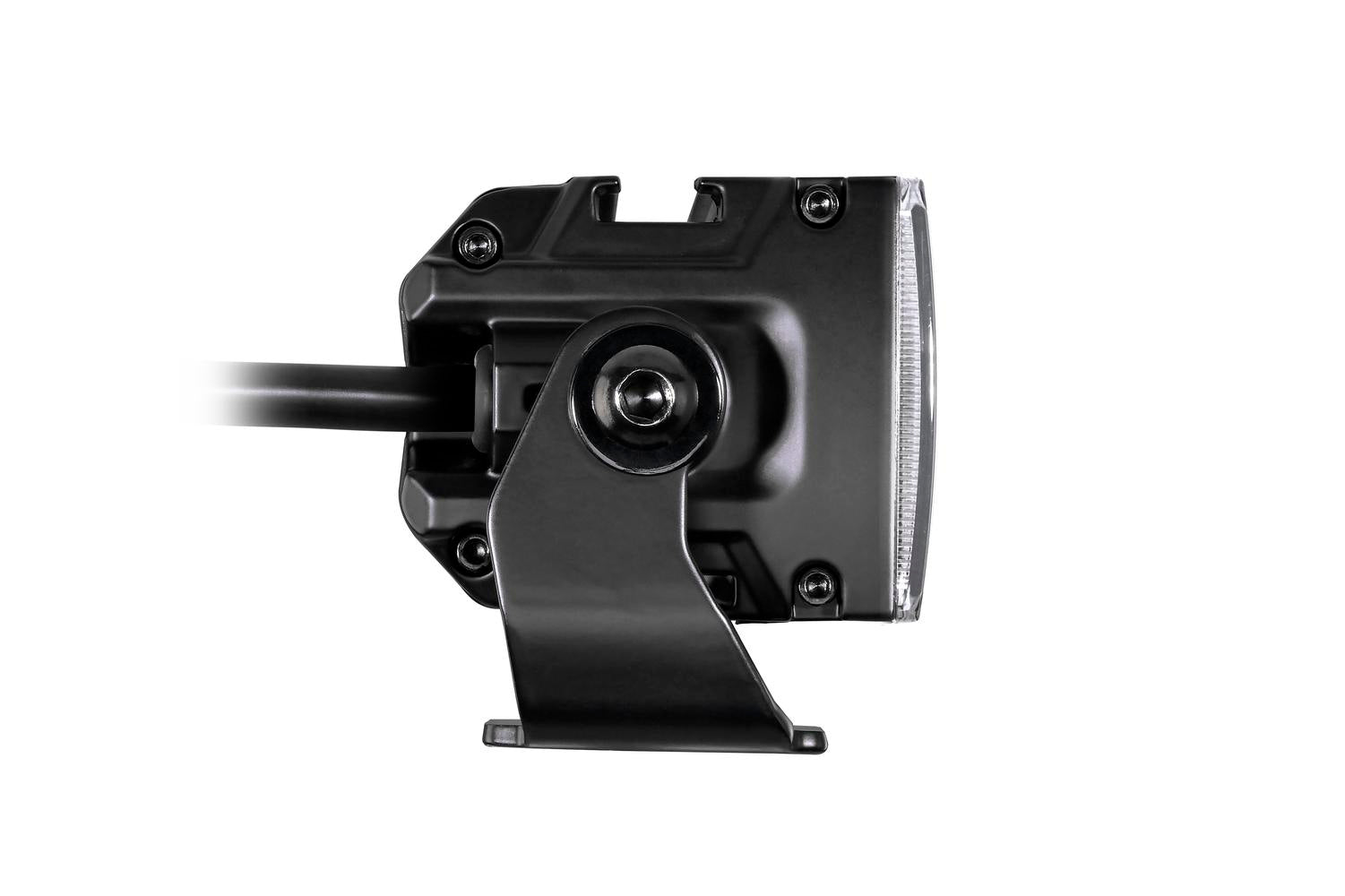

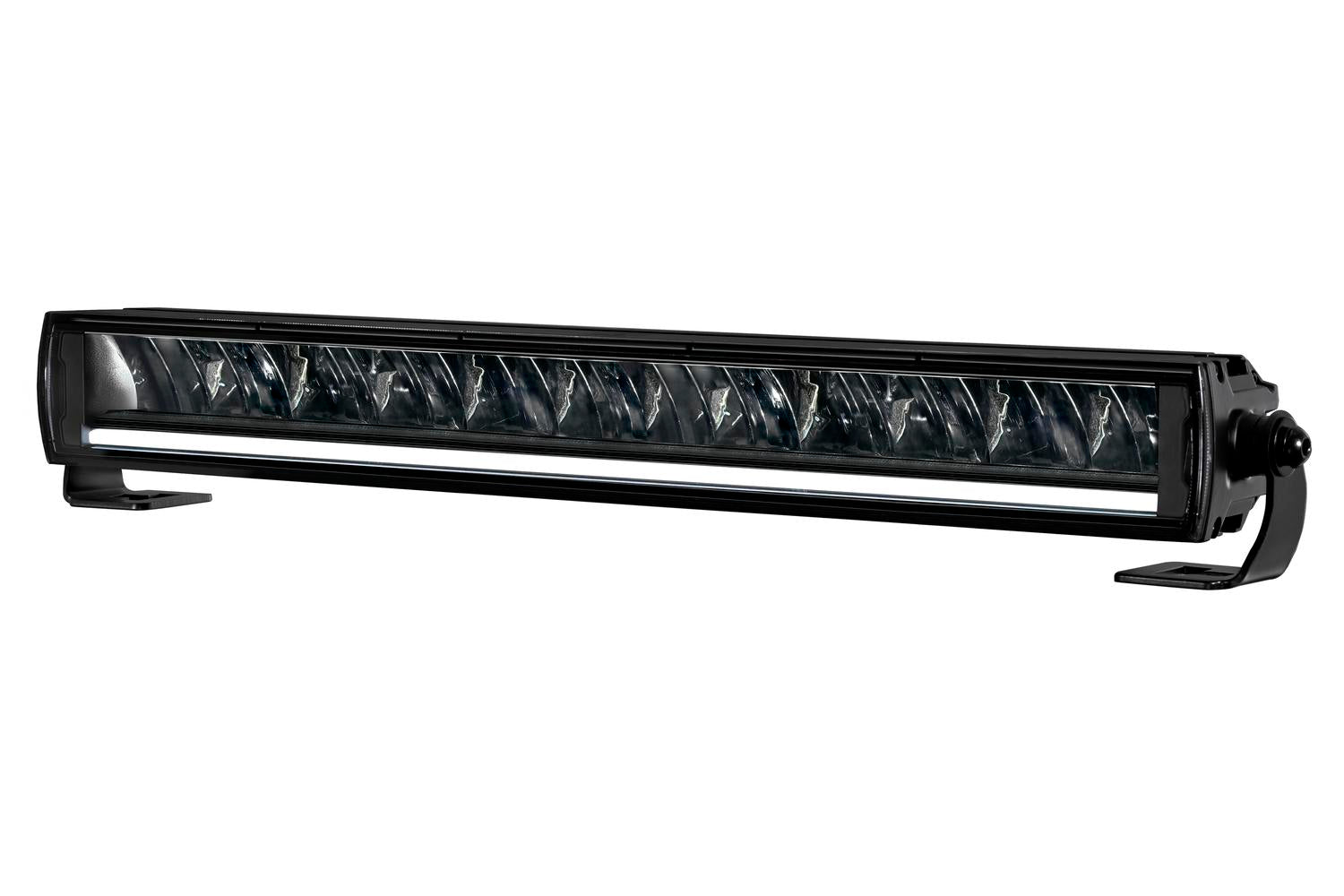

HELLA VALUEFIT LED-Lightbar - LBE 2 490 - 12/24V - white/yellow (amber) - 4600lm 1FE357666-021
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
LED-Lightbar - LBE 2 490 - 12/24V - 4600lm - slim - Reference number: 37.5 - ECE - Clear diffusing lens - white - Light colour: white/yellow (amber) - Cable: 1000mm - Front

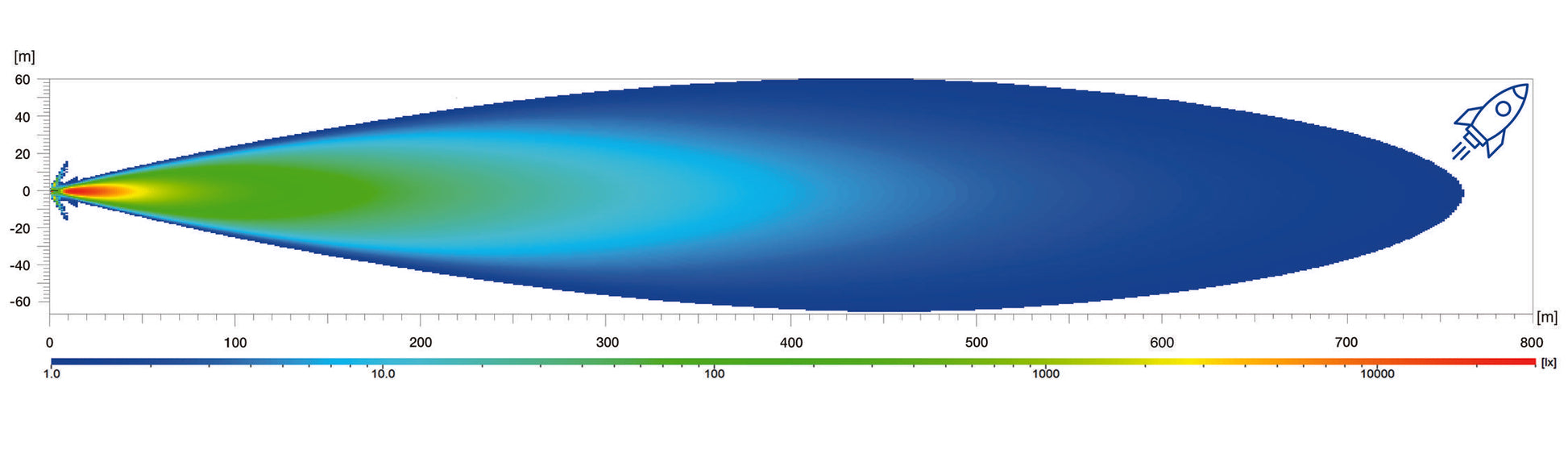

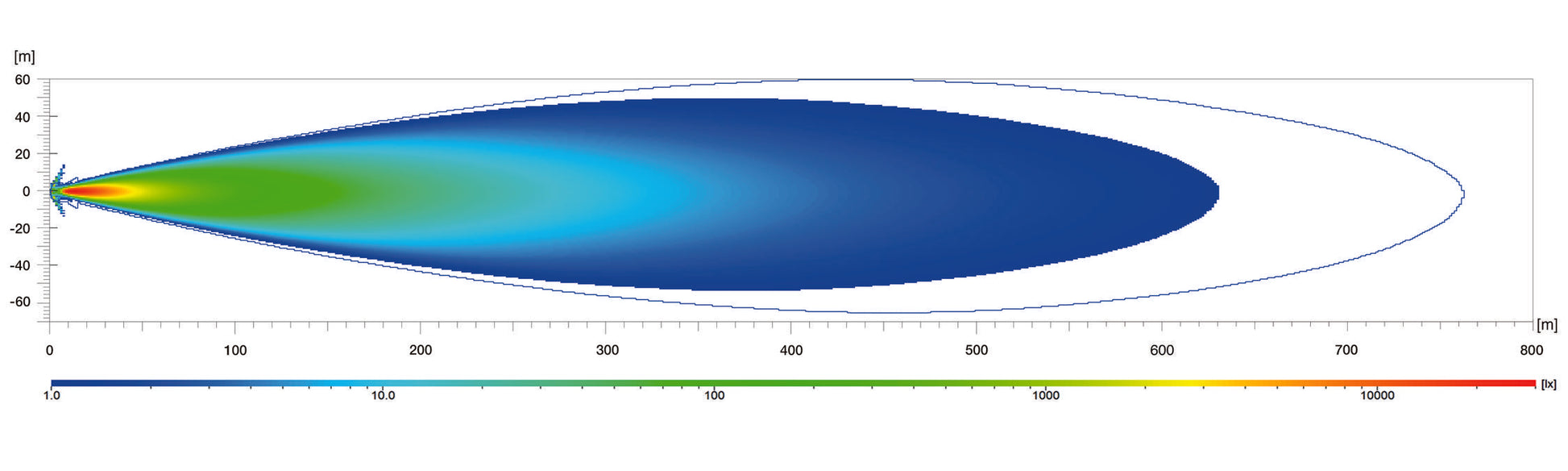

- The HELLA ValueFit LBE 2 light bar 490 offers a light output of a powerful 4,000 lumens. The high-boost mode increases illumination to a maximum of 6,700 lumens.

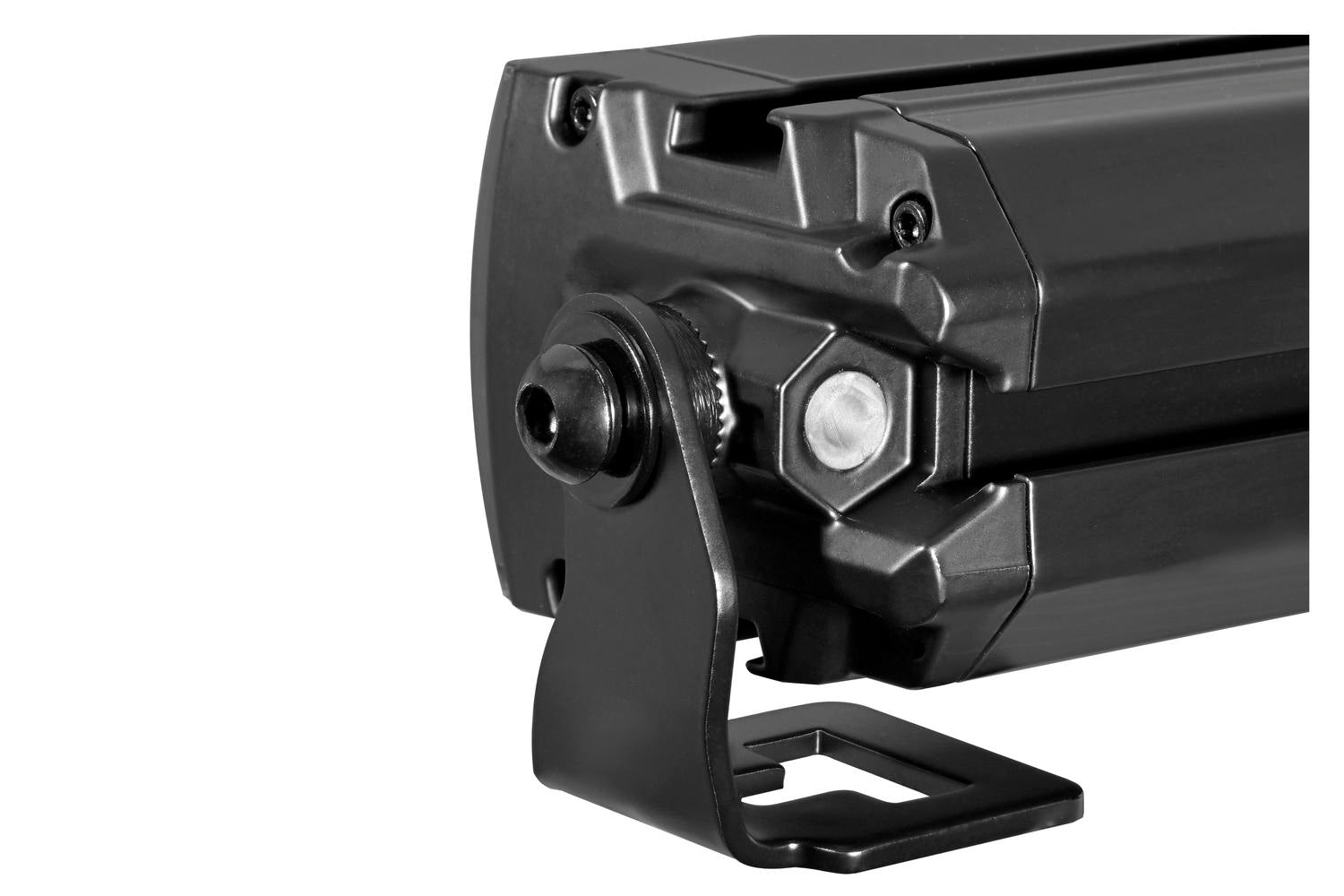

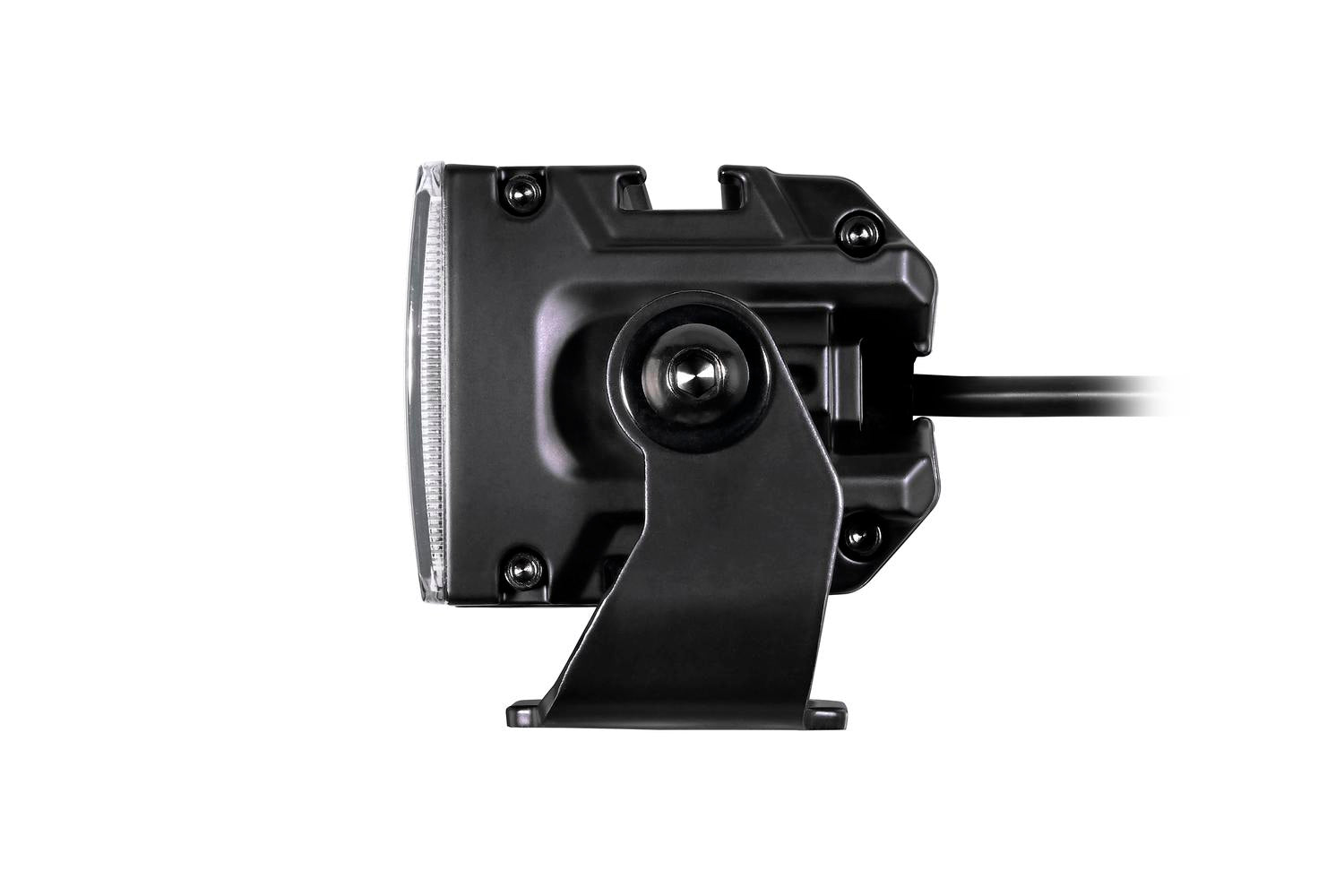

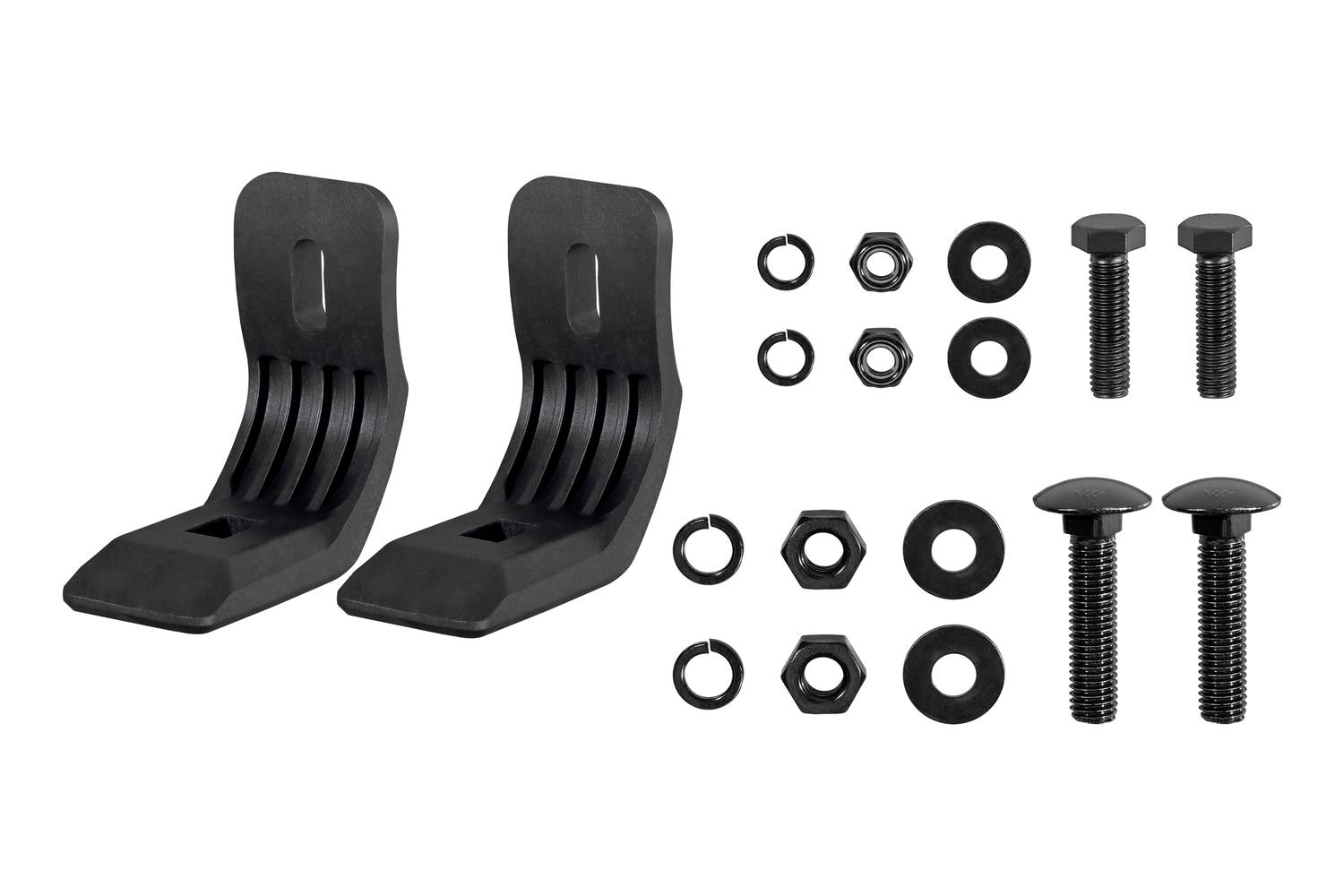

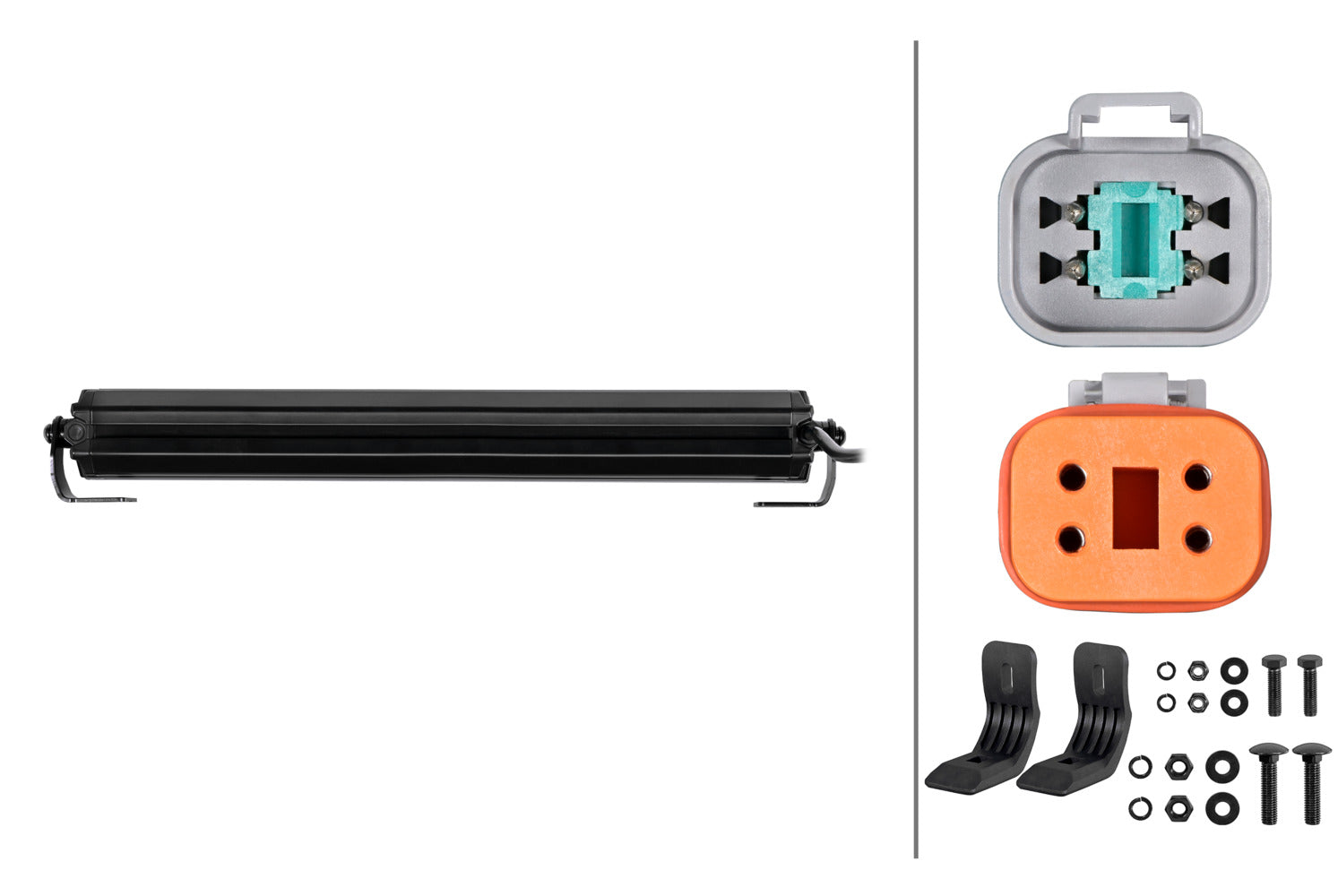

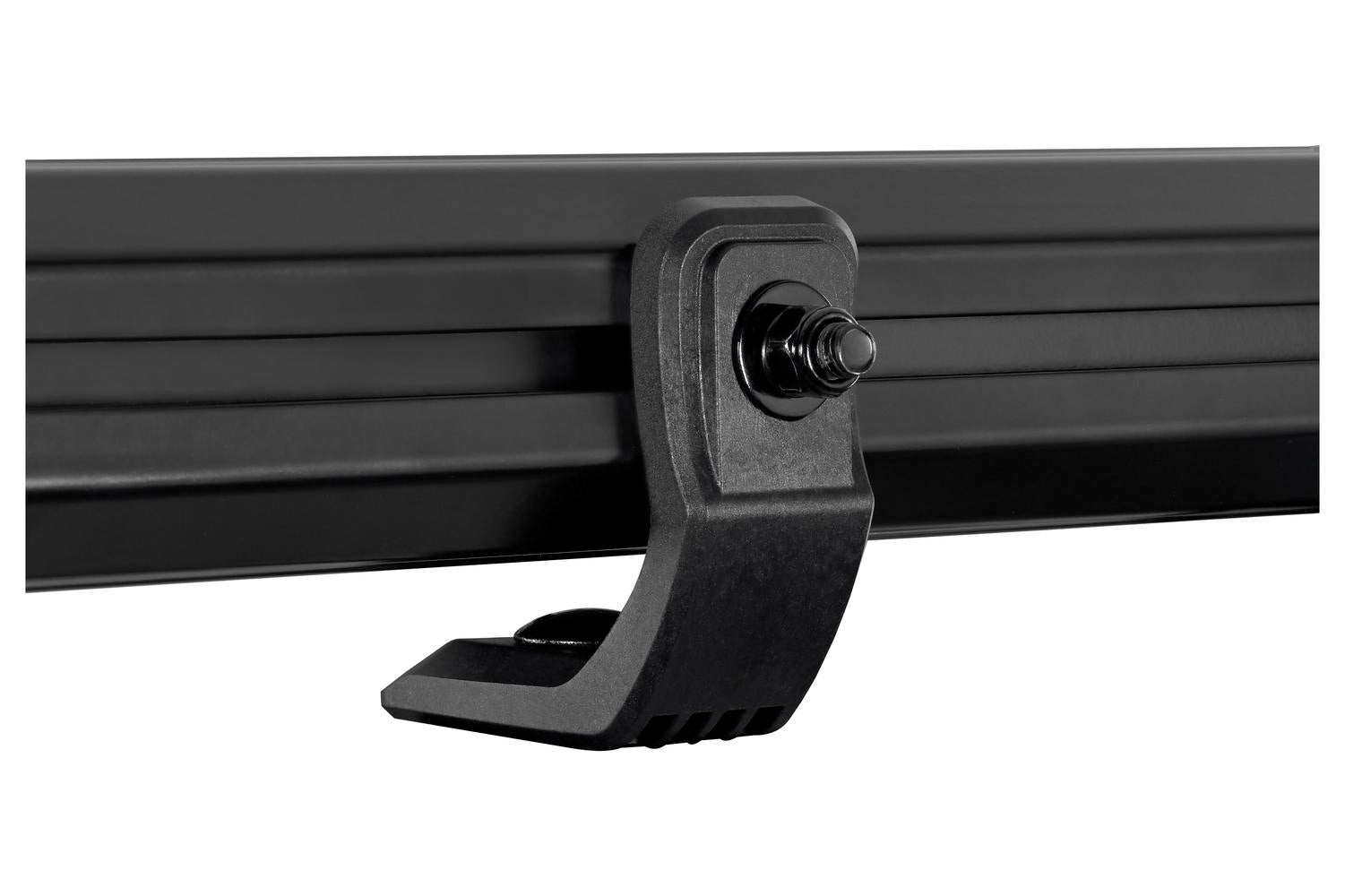

- The scope of delivery includes 2 fastening brackets for side or rear mounting and DT connector.

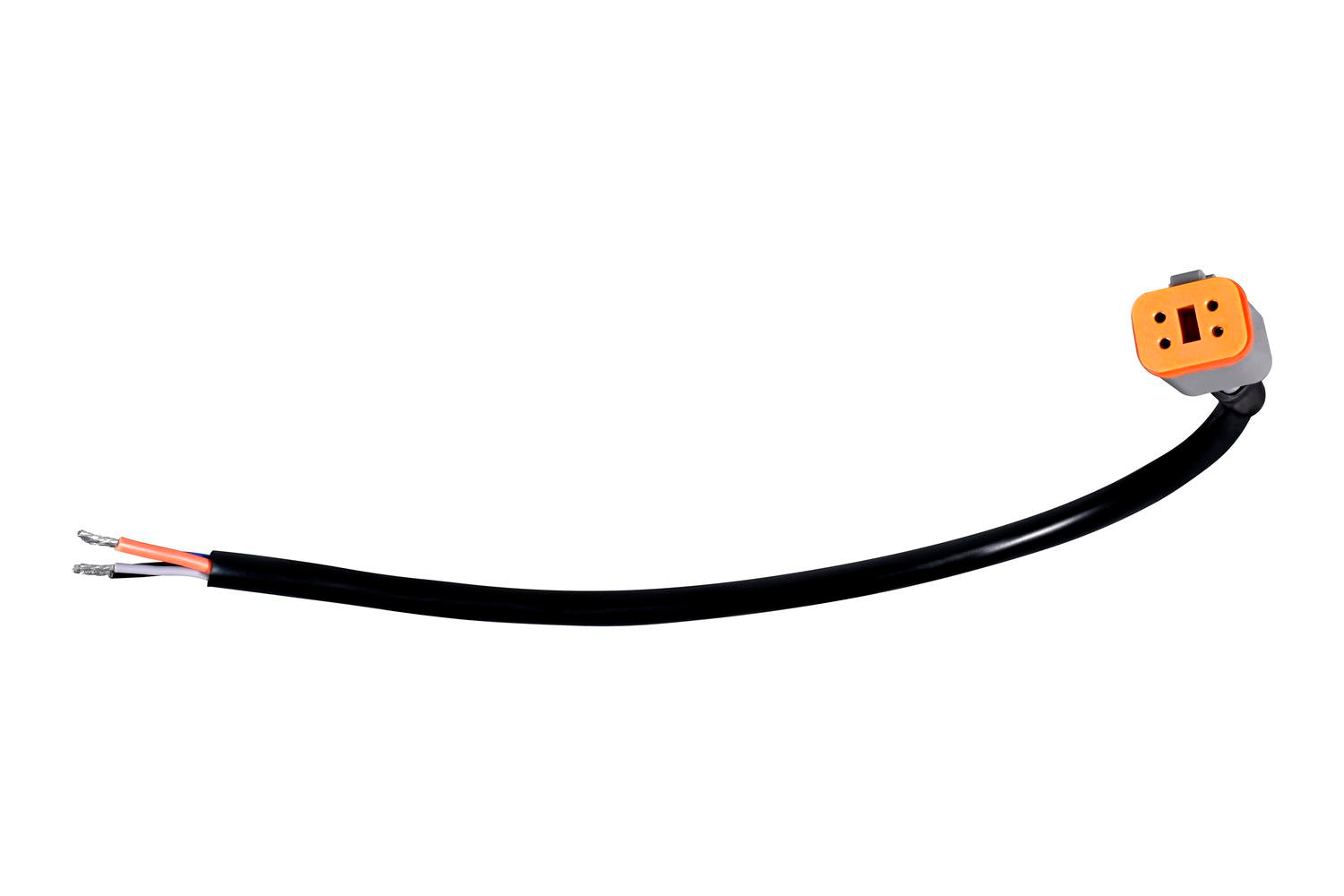

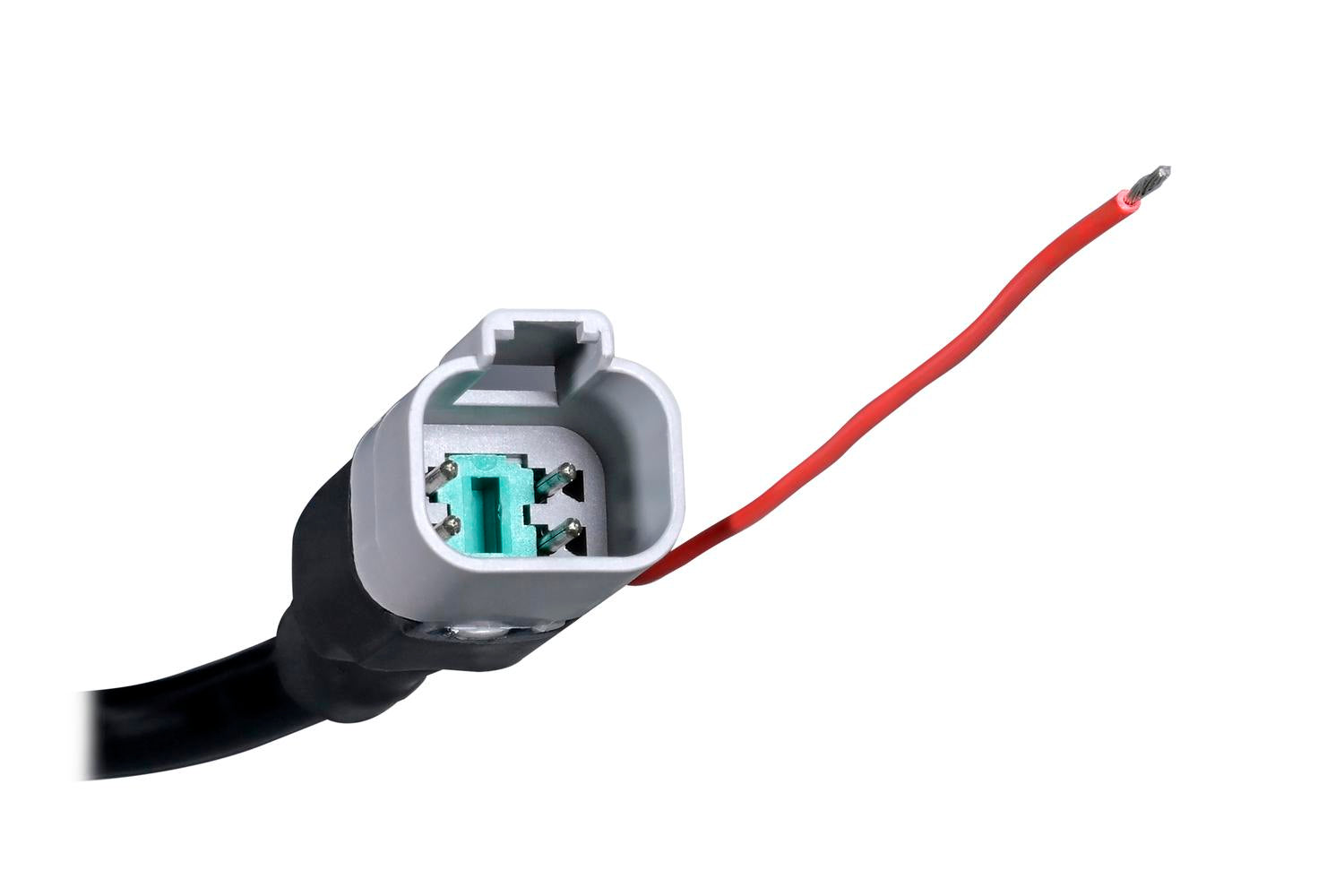

- ECE R10 (EMC), ECE R149 (high beam headlamp), ECE R148 (position light, white), housing: Aluminium, lens: PC (polycarbonate), 1,000 mm cable with 4-pin DT connector.

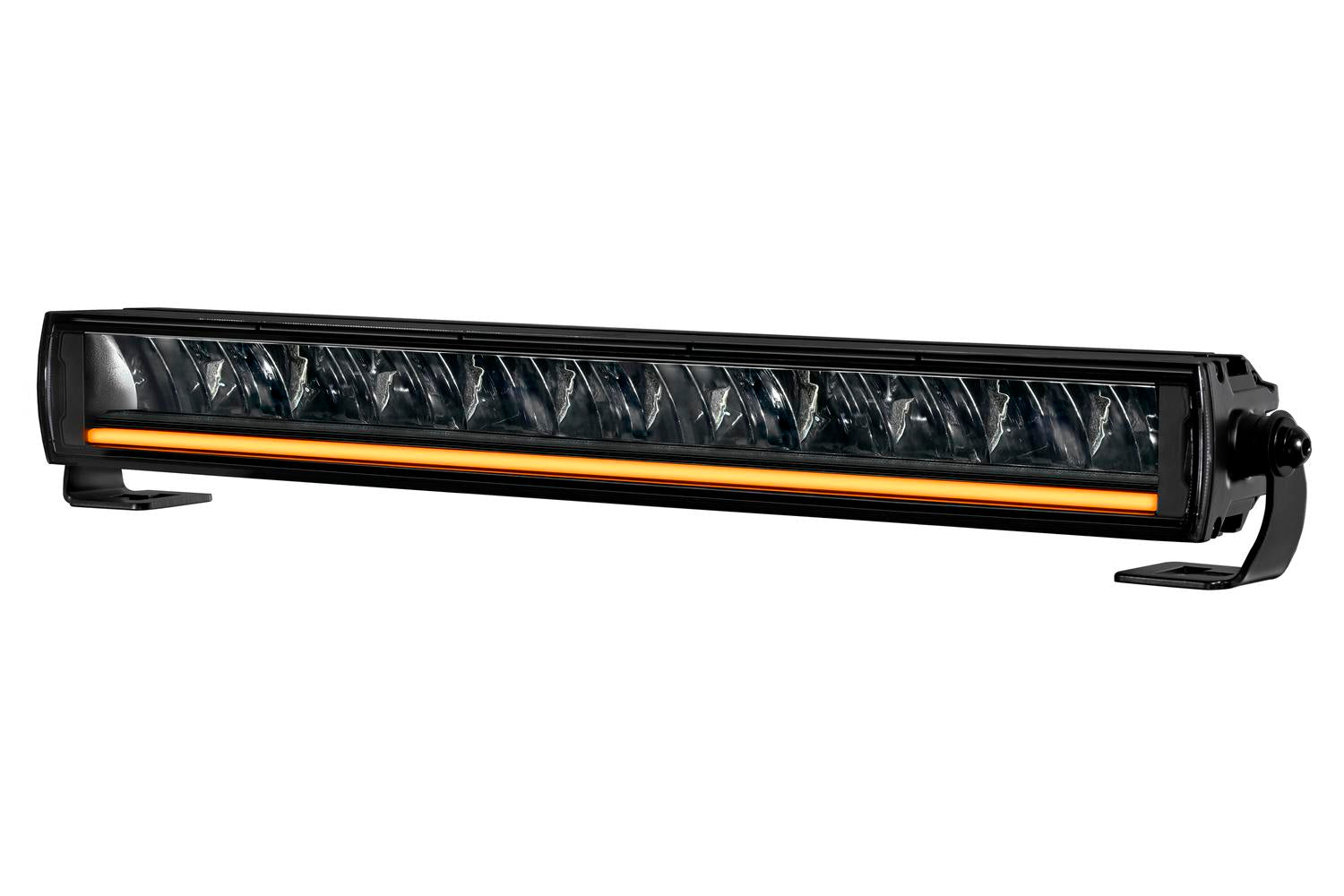

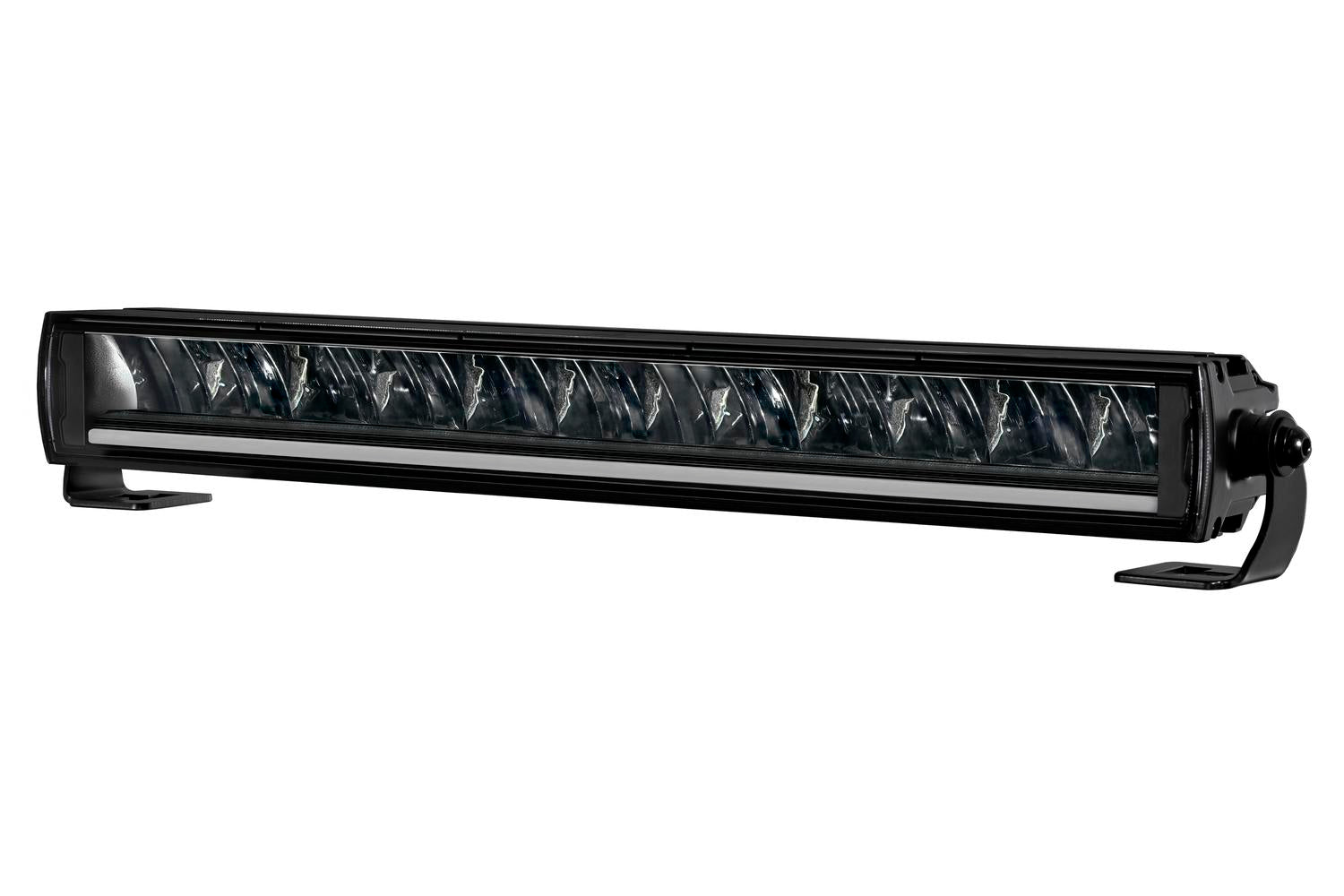

- White position light (ECE R148), amber, on trend function light: For customised, eye-catching vehicle styling (off-road use only).
- Please observe the relevant country-specific, legal requirements and guidelines for motor vehicles listed up in the installation instructions.

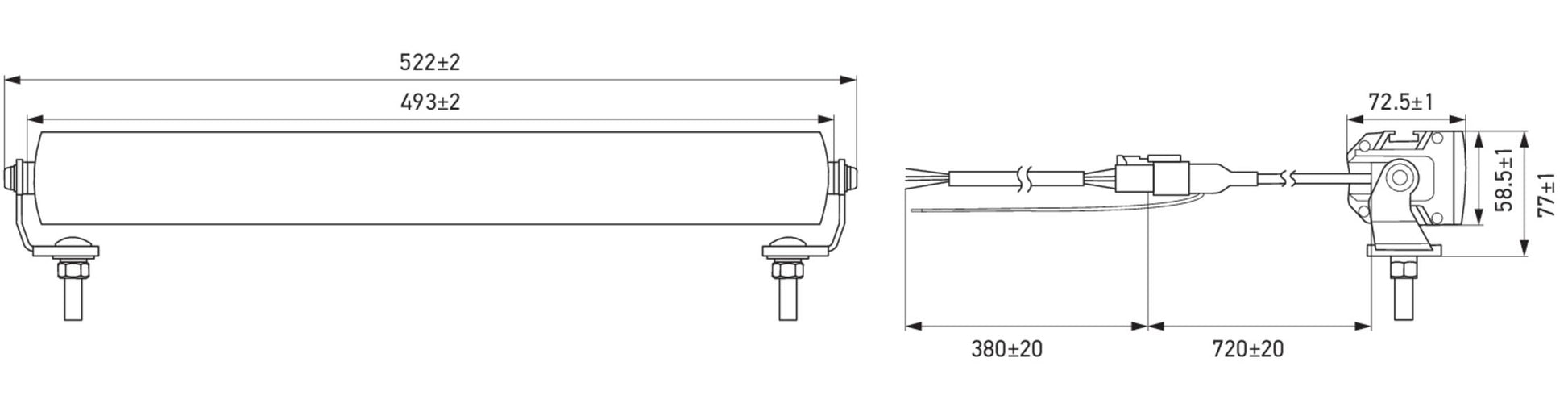

- Length: 493mm - Height: 59mm - Depth: 73mm - Overall Height: 77mm - Lamp Type: LED - Number of LEDs: 110
- Light functions: 3 - with high beam (LED)/with position light (LED)/High-boost
Item Attributes:
Fastening Type: Screw connection
Lamp Type: LED
Light Design: LED
Voltage: 12 V / 24 V
Rated Power: 140 W
Voltage from: 10 V
Voltage to: 30 V
Temperature range from: -40 °C
Temperature range to: +85 °C
Fitting Position: Front
Height: 59 mm
Overall Height: 77 mm
Length: 493 mm
Depth: 73 mm
Light Function: with position light (LED) / High-boost / with high beam (LED)
Light functions: 3
Number of LEDs: 110
Light colour: white / yellow (amber)
Luminous Flux: 4600 lm
Luminous in boost mode: 6300 lm
Theoretical luminous flux: 12000 lm
Colour Temperature: 5700 K
Cable: 1000 mm
Lens Colour: white
Frame Colour: black
Shape: slim
Housing Colour: black
Housing material: Aluminium
Diffusing Lens Type: Clear diffusing lens
Diffusing Lens Material: PC (Polycarbonate)
Registration Type: ECE
fulfils ECE standard: R149 / R10 / R148
Prot.type (IP Code): IP67 / IP69K
Reference number: 37.5
Weight: 1950 g
Assembly by qualified personnel required!
