LED-Strobe-type Beacon - BST - 12/24V - Yellow

LED-Strobe-type Beacon - BST - 12/24V - Yellow

Part No. 2XD 012 160-861
SKU HEL-2XD012160-861
$218.00 $317.00
Available
Dispatched in 2-3 working days
PRODUCT DETAILS

Key part information

The most useful product information is shown here at a glance, including identification, application and reference numbers.

Brand Hella
Part number 2XD 012 160-861
01 Check the part / OEM number 03 Add vehicle details in the cart if needed
Tracked courier services are used wherever available. Vehicle details can be added in the cart before checkout.
TECHNICAL DATA

Item specifics

BrandHella
Part number2XD 012 160-861
SKUHEL-2XD012160-861
Barcode4082300505214
Country of manufactureTaiwan
PRODUCT DETAILS

Description

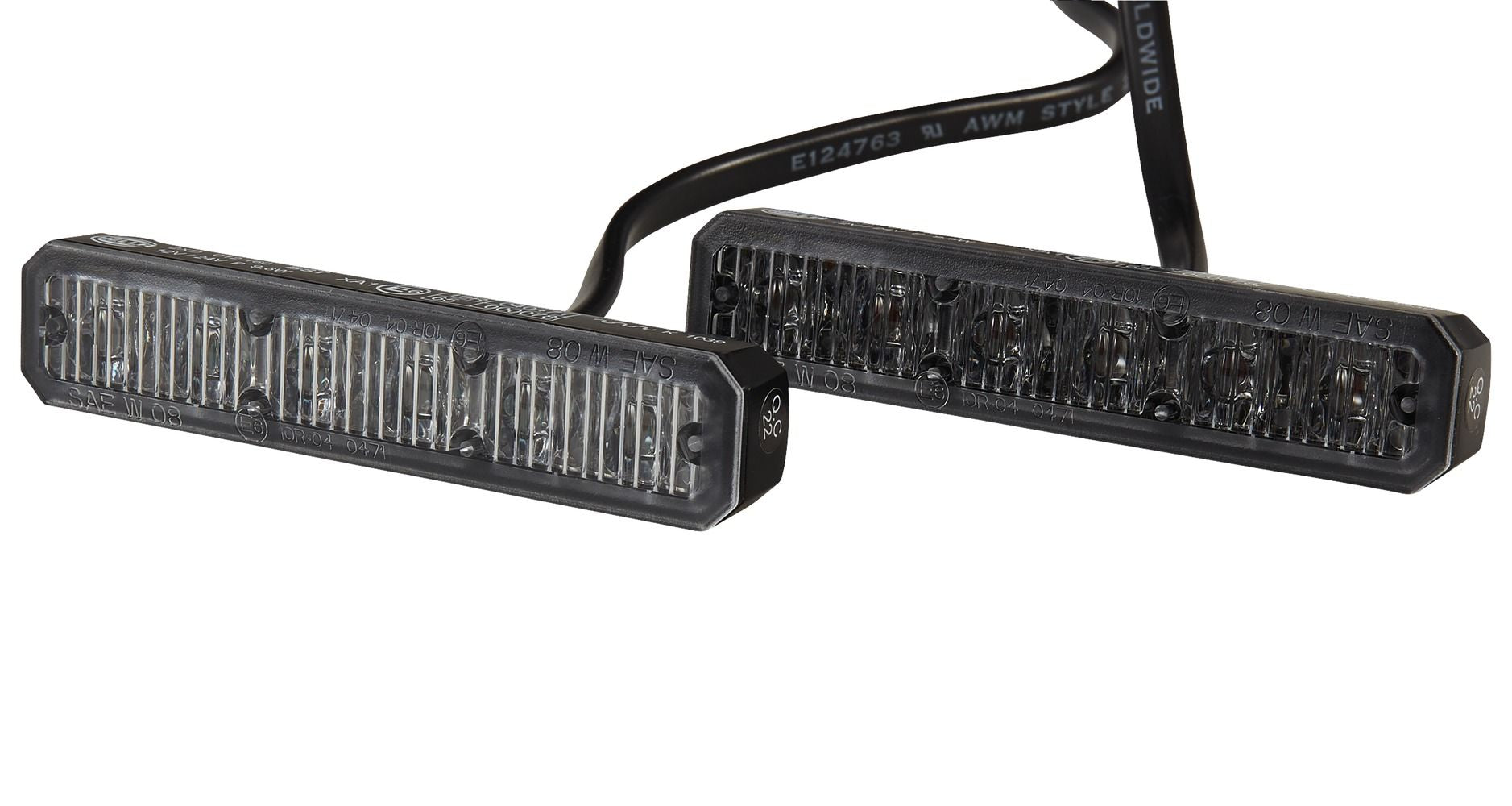

LED-Strobe-type Beacon - BST - 12/24V - Yellow - Screw Connection/mounting - Cable: 860mm - Plug: open cable ends - Kit - Quantity: 2

The BST warning light is available in different signal colours, dimensions and mounting variants. 3 or 6 power LEDs in the colours yellow, blue, red or white ensure an optimal signalling effect. The light can be synchronised with two or more units and has different flash sequences. In addition to the continuous light function, four different flash patterns can be set and are approved according to the European directive for beacons ECE-R65. The warning signal (single to quadruple flash) is either synchronous or alternating. Variants with "1 level" produce a constant level of brightness independent of the ambient light. Variants with "day/night mode", adjust the brightness to the ambient light. This ensures increased visibility during the day and the avoidance of glare at night. The housing is attached to the vehicle by means of screws for fixed mounting and by means of a bracket for bracket mounting. The warning system is also available as a slim version with a mounting height of only 12.8 mm. It is particularly suitable as an attention-grabbing warning signal and for safeguarding danger spots. The product can be mounted horizontally or vertically in various positions around the vehicle, depending on the variant.

Can be synchronised with two or more units
Besides continuous light, four different flash patterns (single, double, triple and quadruple flash) can be set
Tested and approved according to the European Directive for beacons (ECE-R65 )
Lamp Type: LED - Number of LEDs: 6 - Power consumption: 14W
With flashing warning signal - Lens Colour: Crystal clear - LED colour: Yellow - Fastening Type: for horizontal fastening
Appr. stamp: ECE-R10/ECE-R65/SAE - Prot.type (IP Code): IPX9K/IP5K4K/IP6K9K
Housing material: Aluminium - Housing Colour: Black - Diffusing Lens Material: PC (Polycarbonate)

Item Attributes:
Mounting Type: Screw Connection / mounting
Lamp Type: LED
Light Design: LED
Voltage: 12 V / 24 V
Height: 22 mm
Light Function: With flashing warning signal
Light colour: Yellow
Number of LEDs: 6
Plug: open cable ends
Prot.type (IP Code): IPX9K / IP5K4K / IP6K9K
Appr. stamp: ECE-R65 / ECE-R10 / SAE
Supplementary Article/Supplementary Info: with holder
Fastening Type: for horizontal fastening
Power consumption: 14 W
Housing material: Aluminium
Diffusing Lens Material: PC (Polycarbonate)
Housing Colour: Black
LED colour: Yellow
Lens Colour: Crystal clear
Cable: 860 mm
Weight: 360 g
Operating temperature from: -40 °C
Operating temperature to: +60 °C

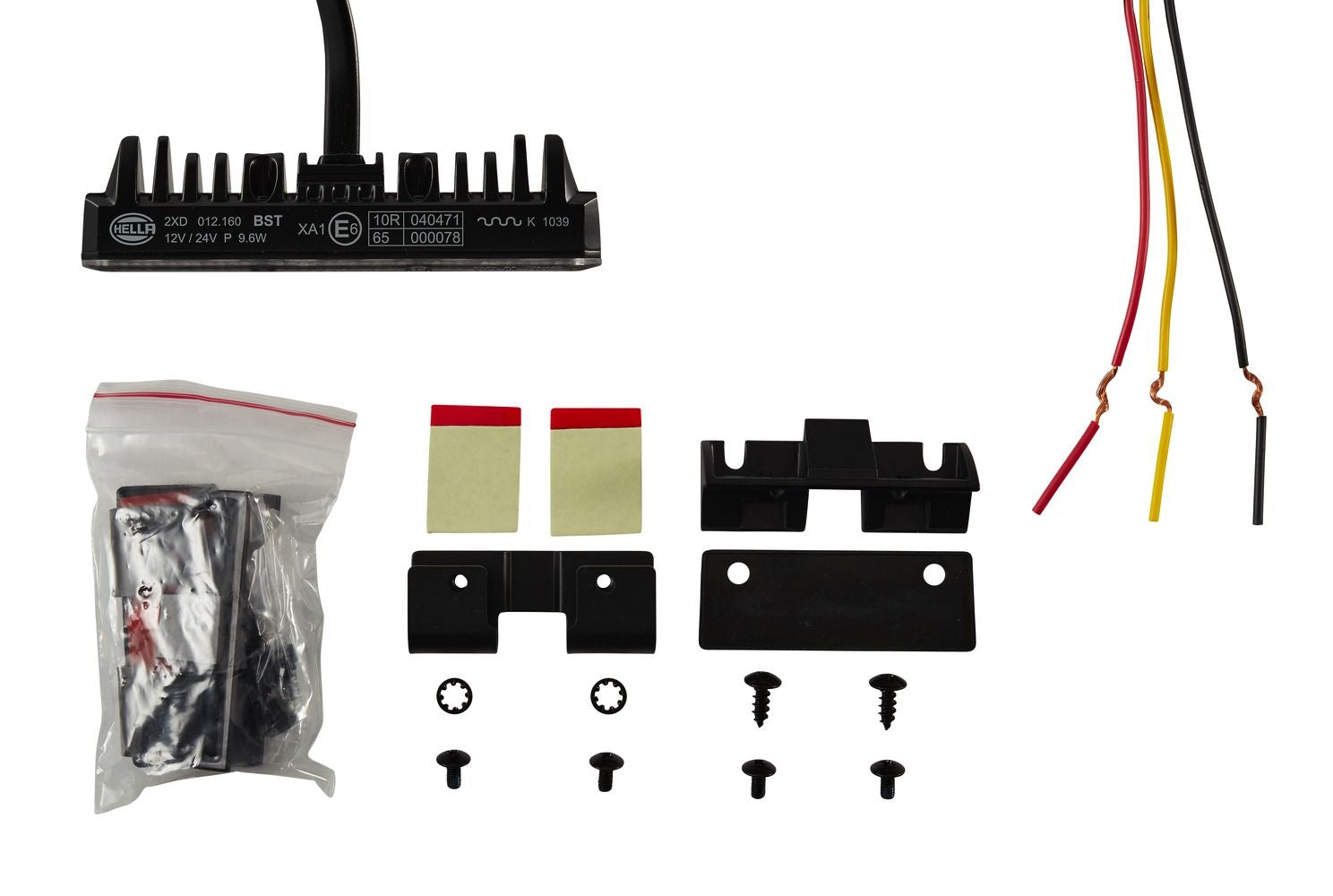

Quantity Unit: Kit
Quantity: 2
Assembly by qualified personnel required!
