Oil Pressure Switch - 12V - 1-pin connector
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description

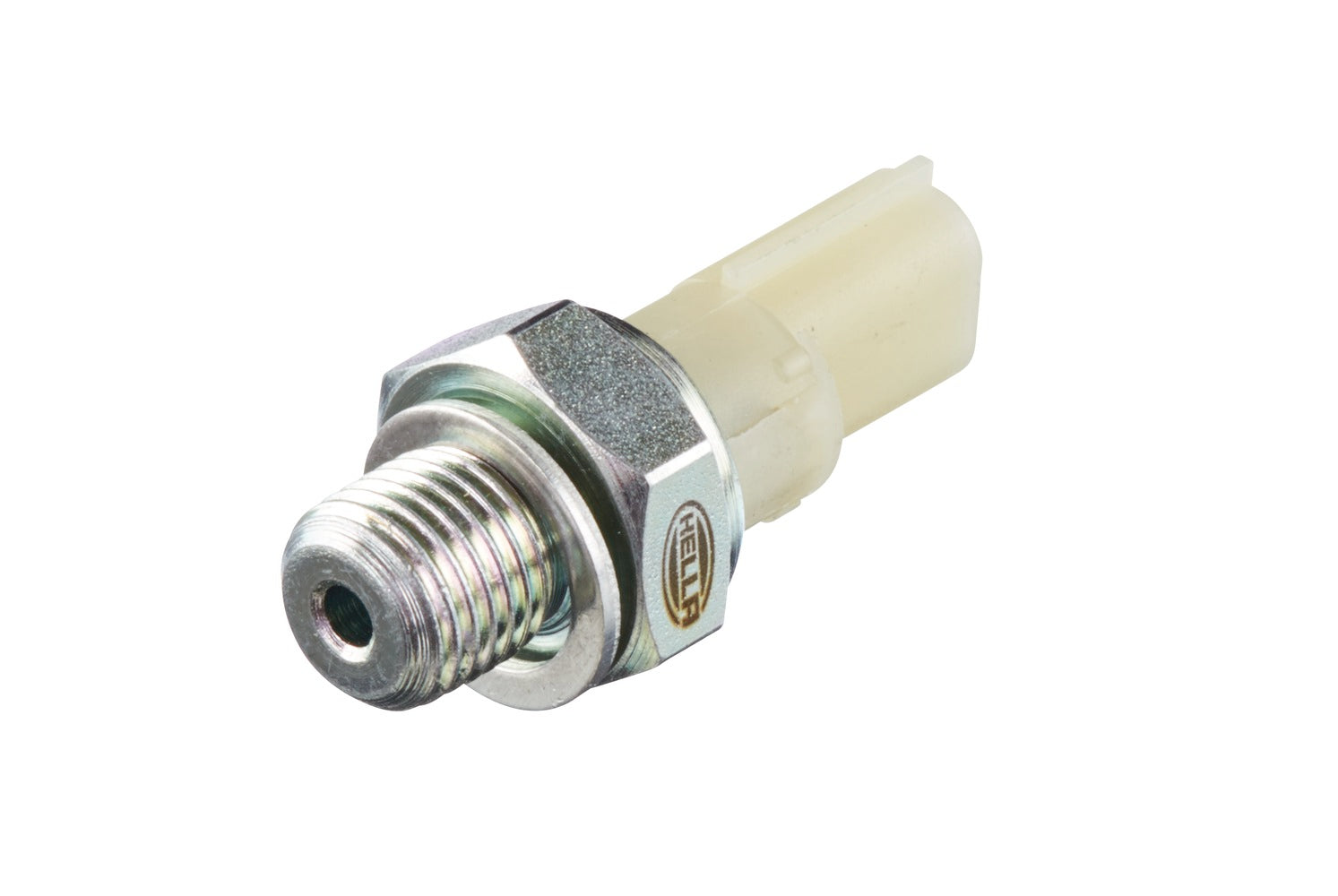

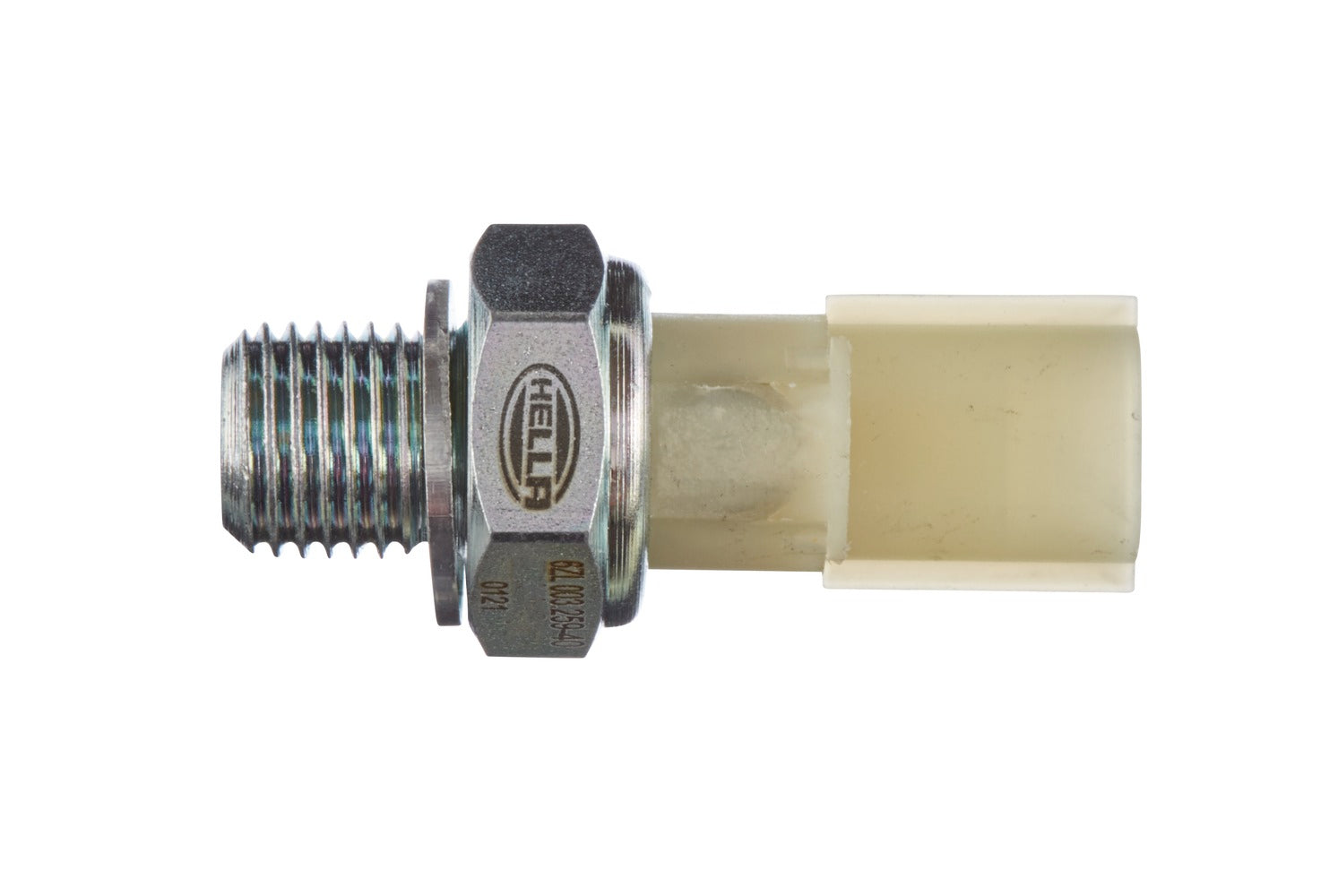

Oil Pressure Switch - 12V - 1-pin connector - Bolted - Normally Closed Contact
At HELLA we offer you a wide range of different switches for every function. Whether screwed, clipped or with rotary actuation, in black, silver, smooth or grained, we have an extensive range for everything that needs to be switched on or off in vehicles - and yet all our switches have one thing in common: The high quality of HELLA.
Spanner size: 21
Mounting type screwed
Thread size M14x1.5
Width across flats 21
Pressure 0.6 bar
The oil pressure switch is installed in the oil circuit of the engine and controls the oil pressure in the engine block
Item Attributes:
Mounting Type: Bolted
Voltage: 12 V
Pressure [bar]: 0.60 bar
Combi Switch Function: Normally Closed Contact
Thread Size: M14x1,5
Spanner size: 21

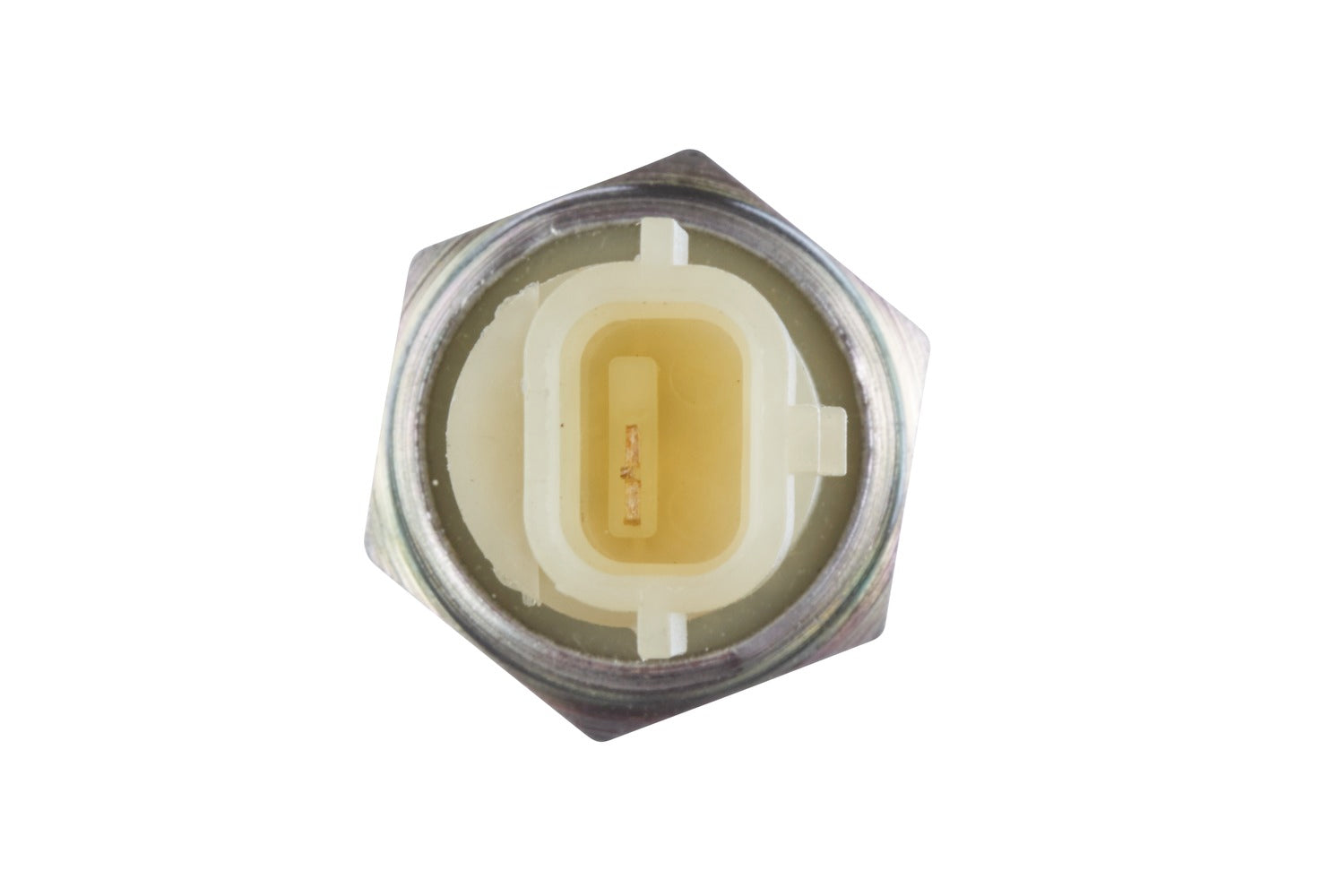

Number of pins: 1 -pin connector
SVHC: 7439-92-1; Lead
Assembly by qualified personnel required!
Not sure this is the correct part?
Send your registration, VIN or the number from your existing part. We’ll use the product you are viewing as the reference for your enquiry.
