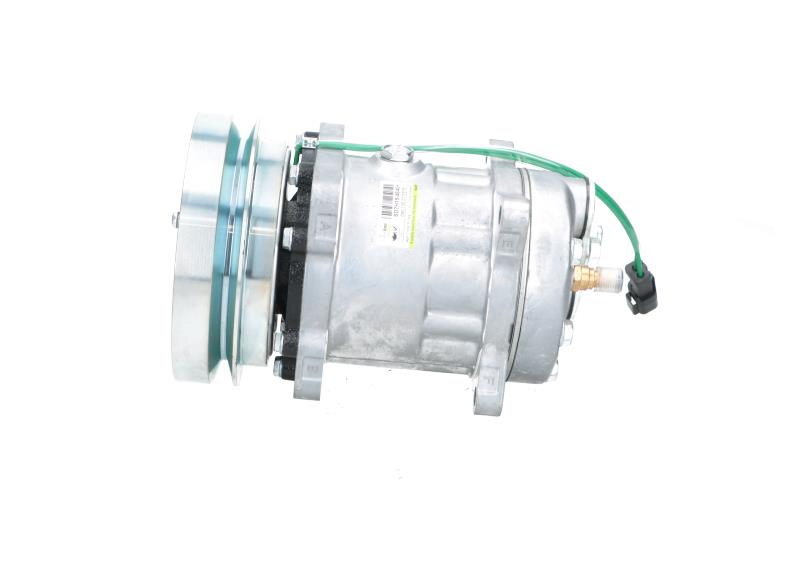

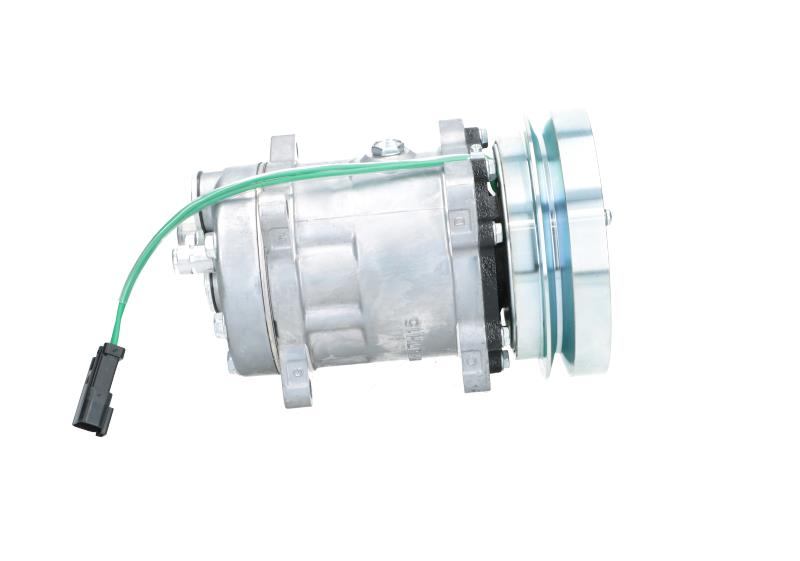

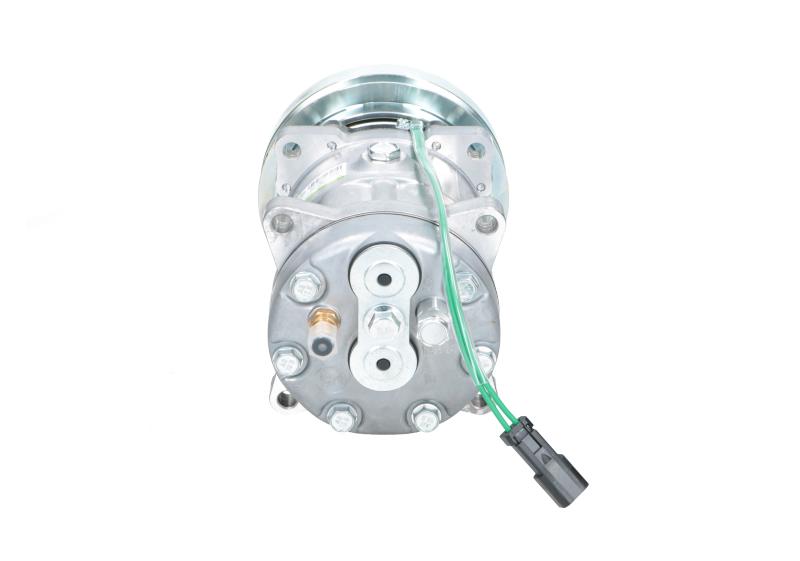

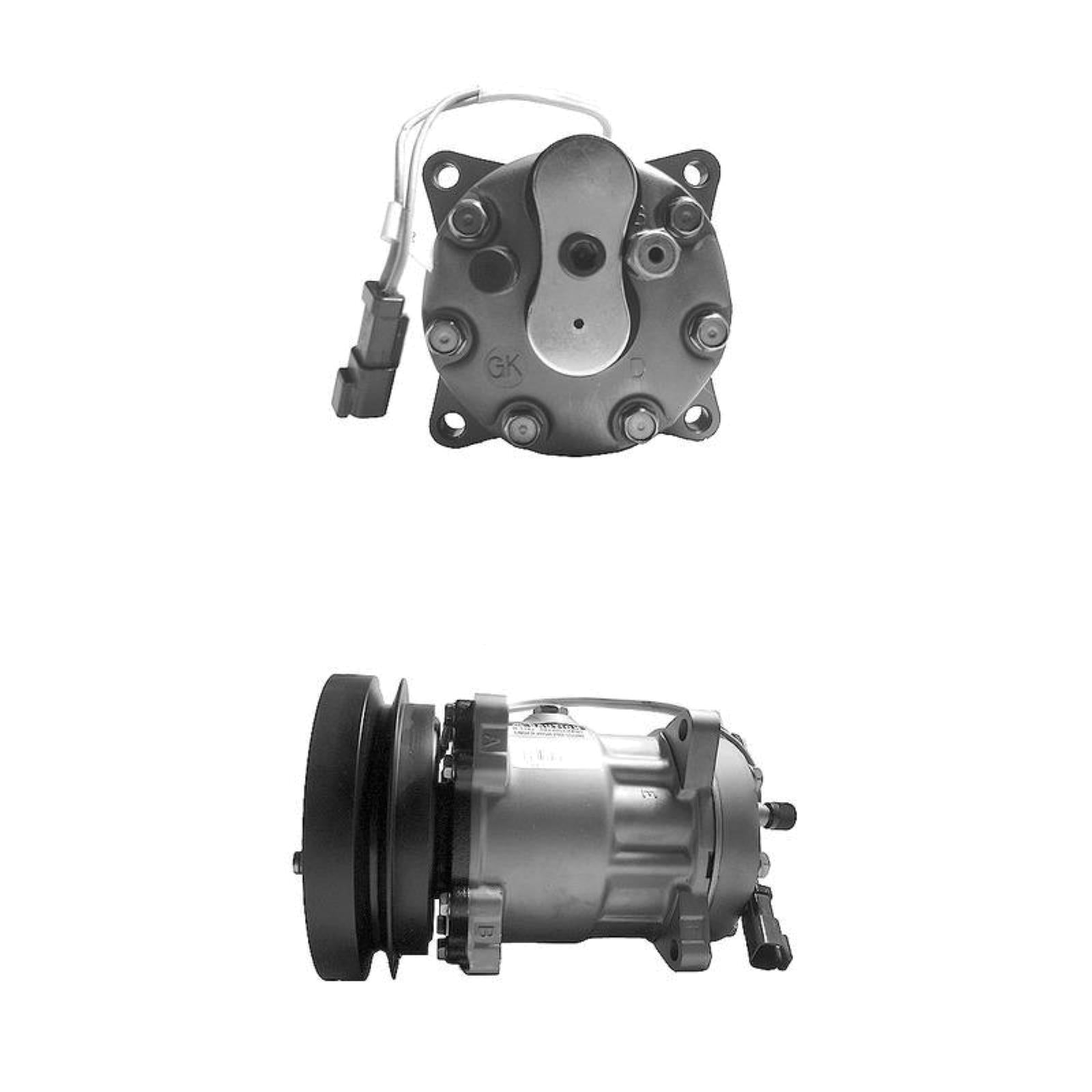

PlusLine Original Aircon Compressor for Caterpillar (dust cover) SD7H154640+
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Aircon Compressor - +Line Original SD7H15-4640+ (PSH ref: 090.135.073.876)
Voltage: 24
Grooves: 1
Pulley (mm): 153
Compressor ID: SD7H15
Compressor oil: PAG 100
Connector type: EAR
Refrigerant: R 134a
Oil Fill Quantity (mL): 300
Replaces OEM reference(s):
Caterpillar: 1065122, Caterpillar: 3184258, Caterpillar: 3E1909
Replaces aftermarket reference(s):
Mahle: ACP1494000S, Sanden: 4640, Sanden: 8058, Sanden: 8066, Sanden: SD7H154640, Sanden: SD7H158058, Sanden: SD7H158066
