PlusLine Original Aircon Compressor for Fiat SD7H157805+
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description

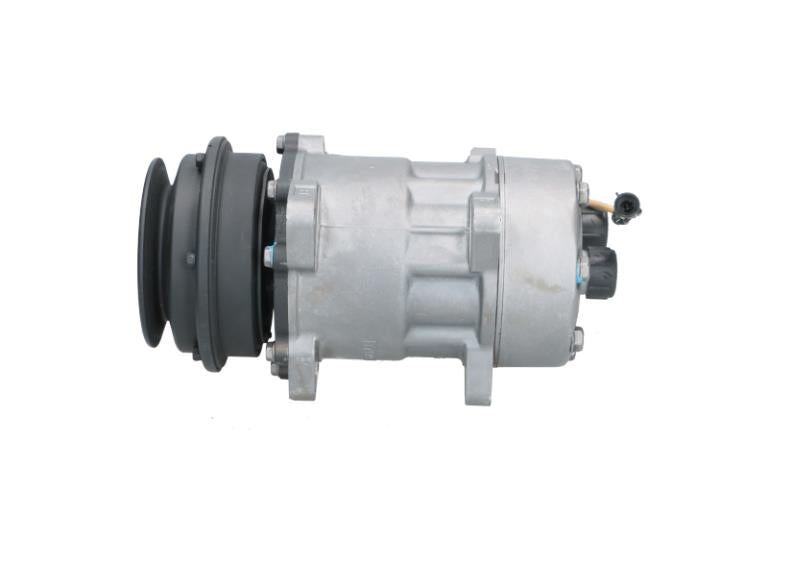

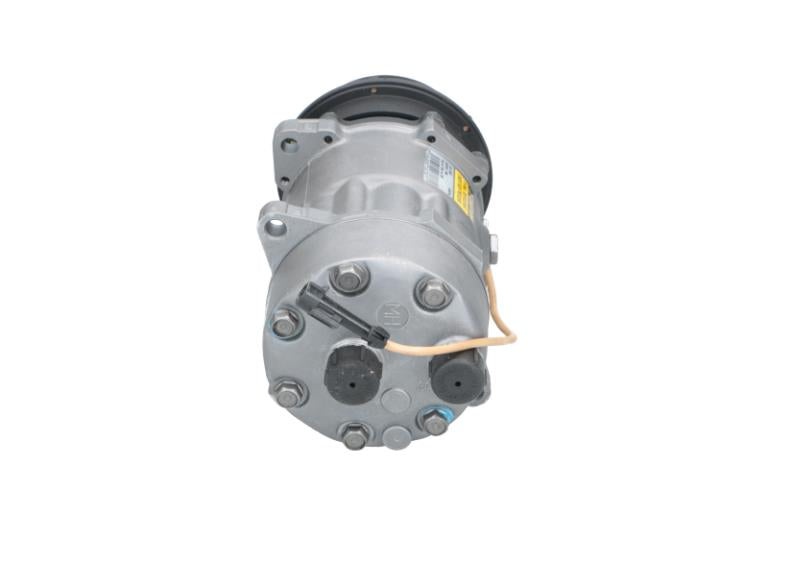

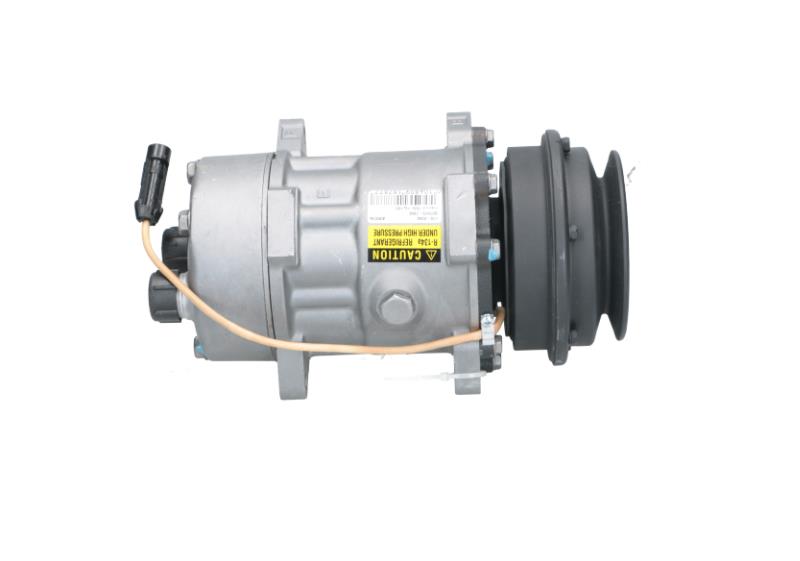

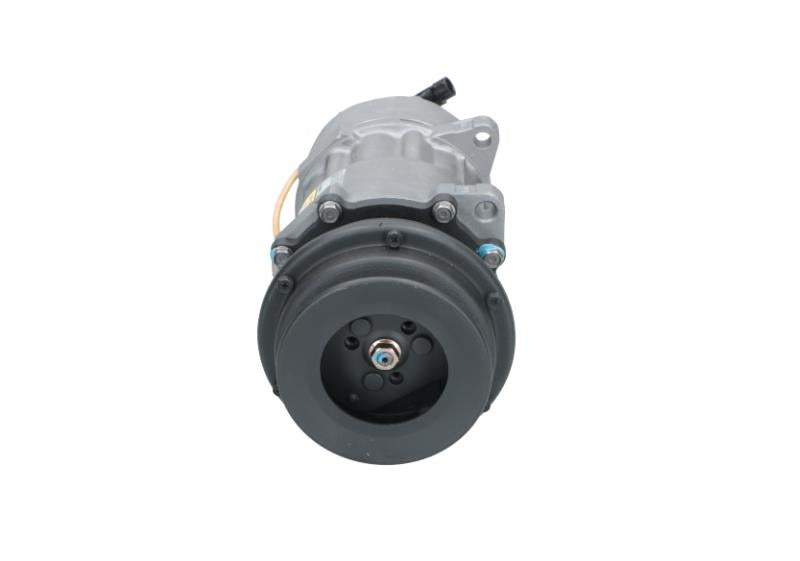

Aircon Compressor - +Line Original SD7H15-7805+ (PSH ref: 090.505.059.876)
Voltage: 12
Grooves: 1
Pulley (mm): 113
Compressor ID: SD7H15
Compressor oil: PAG 46
Refrigerant: R134a
Oil Fill Quantity (mL): 135
Replaces OEM reference(s):
Lancia: 7761693
Replaces aftermarket reference(s):
Delphi: TSP0155035, Lucas: ACP452, Lucas: ACP774, Sanden: 7450, Sanden: 7805, Sanden: SD7097450, Sanden: SD7H157450, Sanden: SD7H157805, Valeo: 699101, Valeo: 699601
