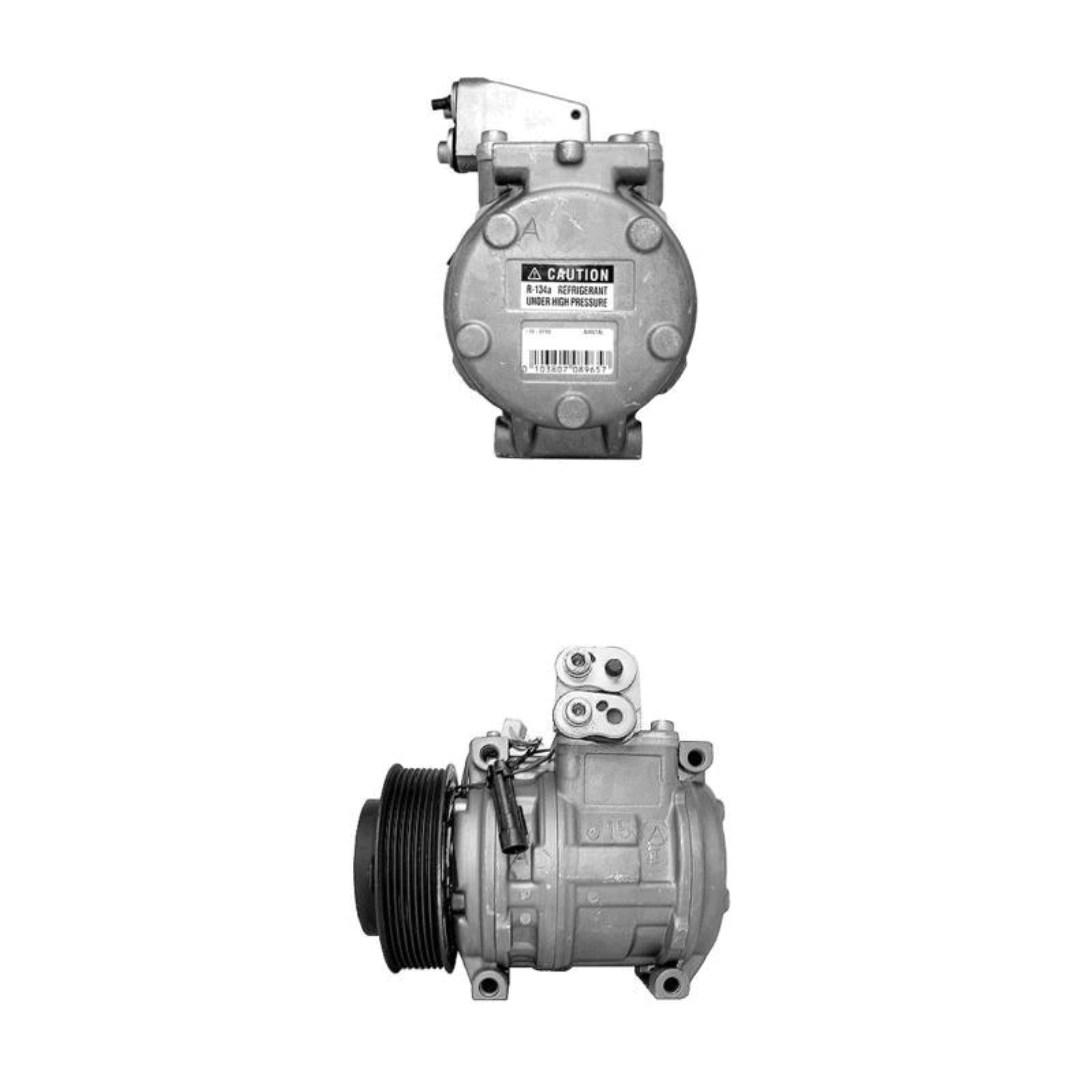

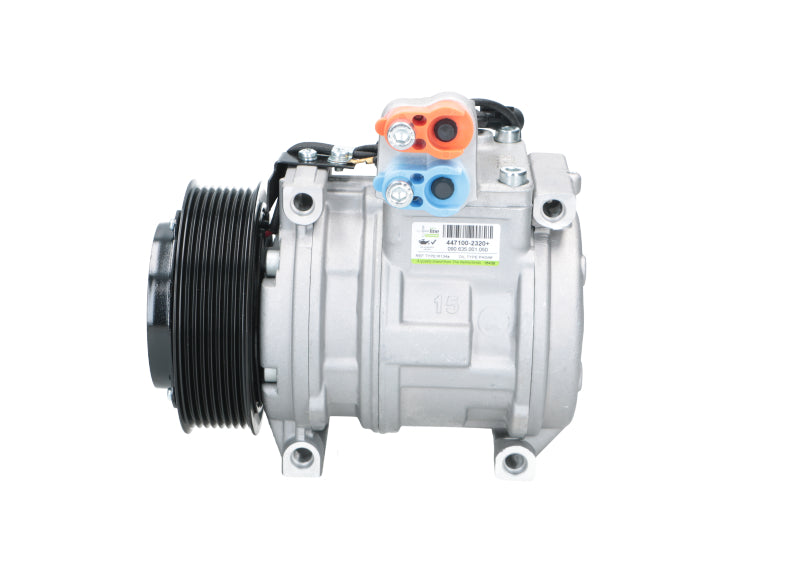

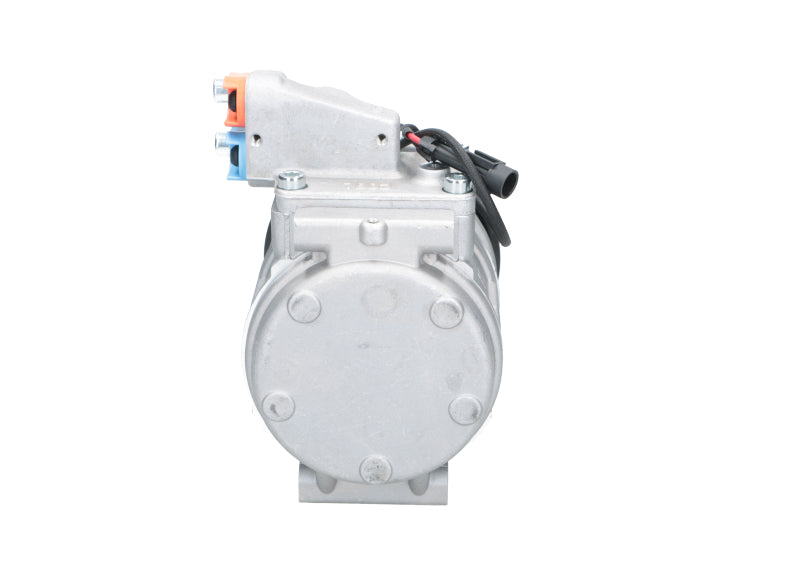

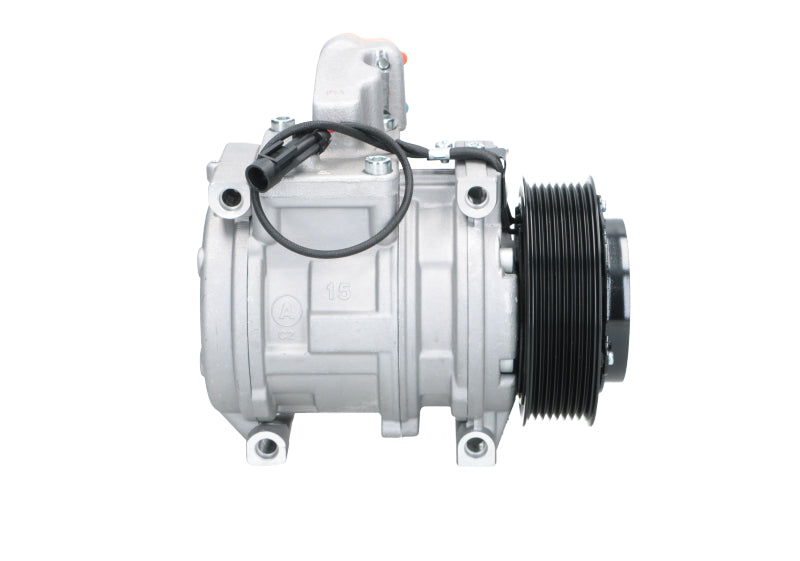

PlusLine Original Aircon Compressor for John Deere 4471002320+
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Aircon Compressor - +Line Original 447100-2320+ (PSH ref: 090.635.001.050)
Voltage: 12
Grooves: 8
Pulley (mm): 120
Compressor ID: 10PA15C
Compressor oil: PAG46
Refrigerant: R134a
Oil Fill Quantity (mL): 180
Replaces OEM reference(s):
John Deere: AL153386, John Deere: AL154203, John Deere: AL155836, John Deere: AL174136, John Deere: AL174137, John Deere: AL176857, John Deere: AL78779, John Deere: RE203758, John Deere: RE257084, John Deere: TY6769
Replaces aftermarket reference(s):
Delphi: TSP0155312, Denso: 4371005050, Denso: 4471002320, Denso: 4471002321, Denso: 4471002322, Denso: 4471002324, Denso: 4471708930, Denso: 4471708931, Denso: 4471803480, Denso: 4472000090, Denso: 4472002230, Denso: 4472002300, Denso: DCP99505, Denso: DCP99512, Lucas: ACP790, Mahle: 70817312, Mahle: ACP739000S
