PlusLine Original Aircon Compressor for Renault 699697+
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description

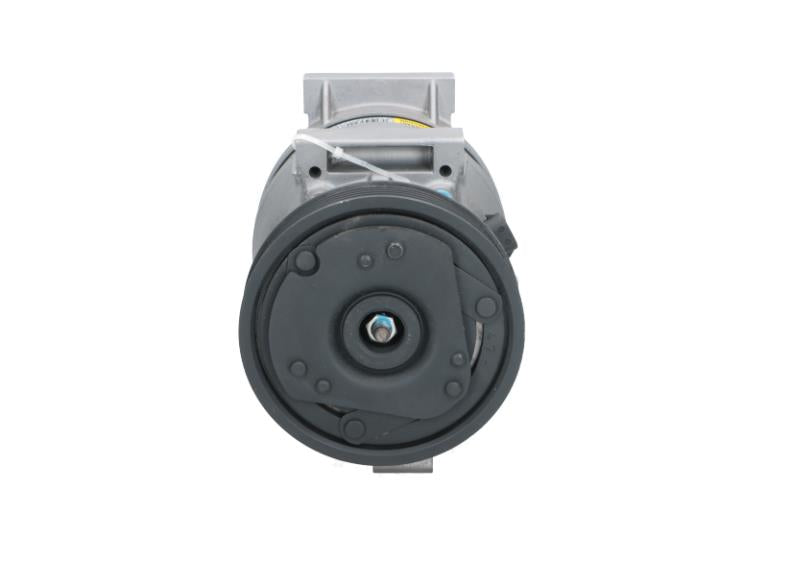

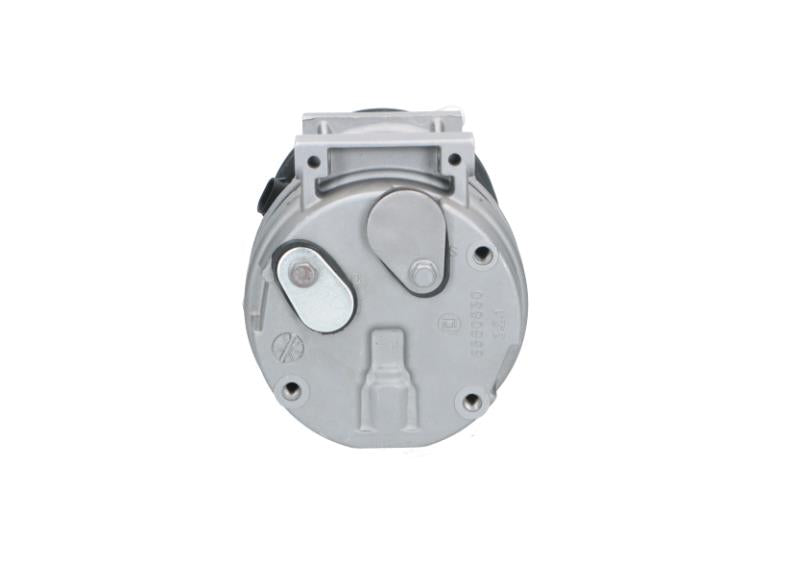

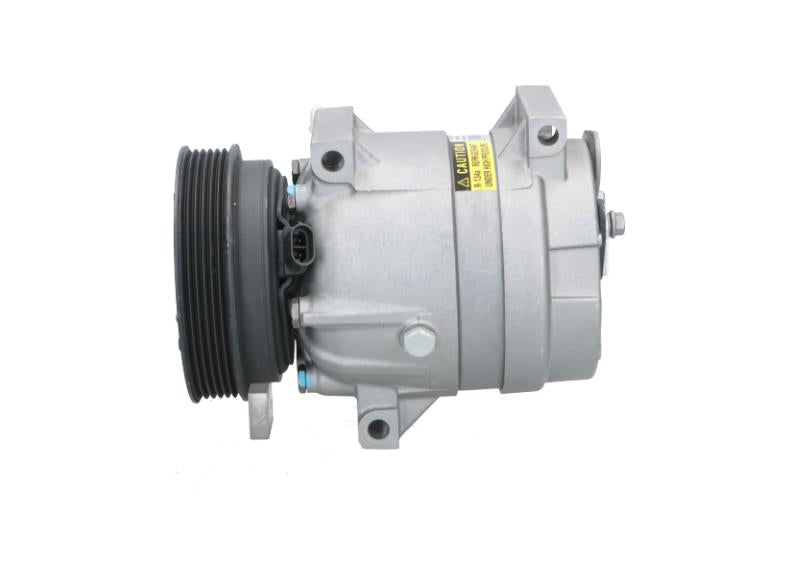

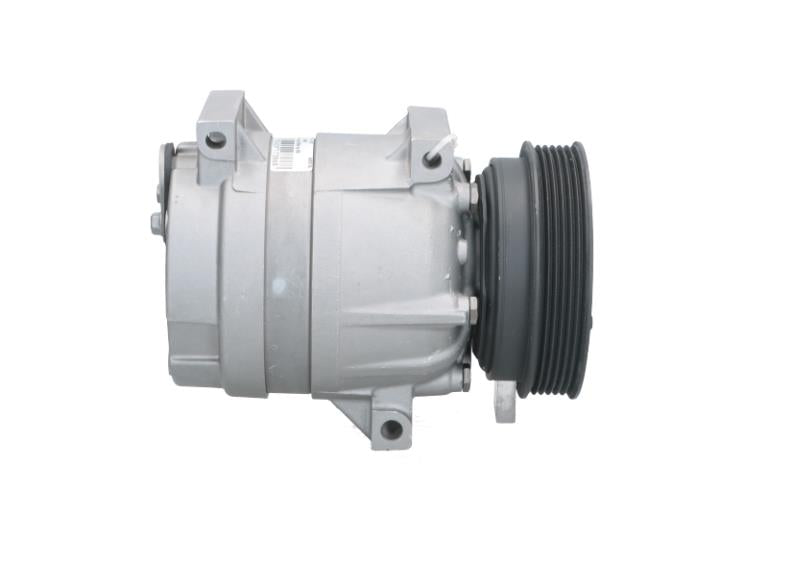

Aircon Compressor - +Line Original 699697+ (PSH ref: 090.575.051.000)
Voltage: 12
Grooves: 6
Pulley (mm): 125
Compressor ID: V5
Compressor oil: PAG 46
Refrigerant: R134a
Oil Fill Quantity (mL): 200
Replaces OEM reference(s):
Renault: 7700103536, Renault: 7701499859
Replaces aftermarket reference(s):
Delphi: TSP0155137, Lucas: ACP211, Mahle: 70817747, Mahle: 70817748, Mahle: ACP1109000P, Mahle: ACP1109000S, Valeo: 699197, Valeo: 699697
