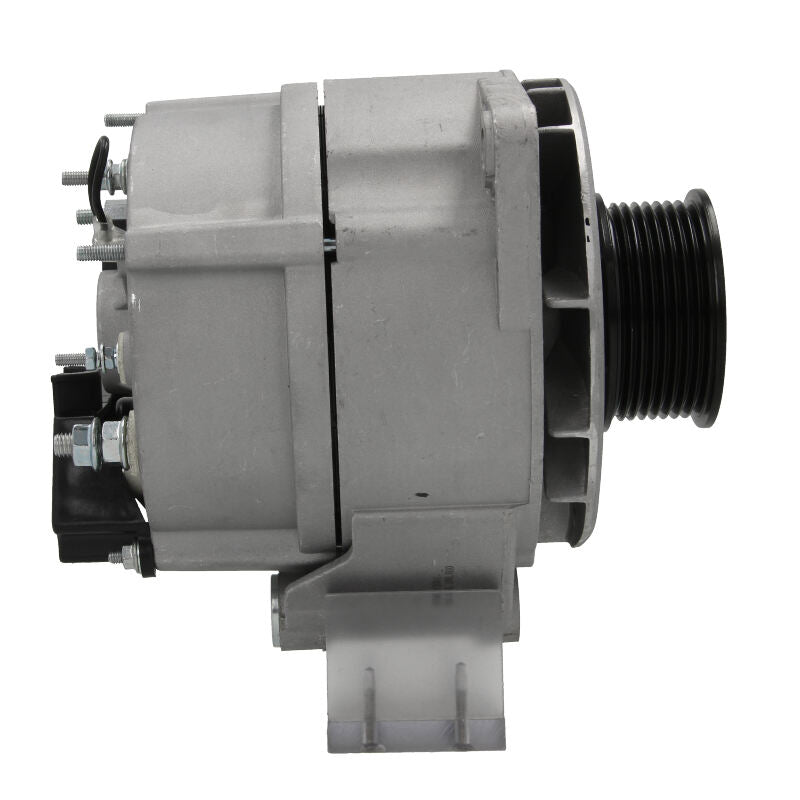

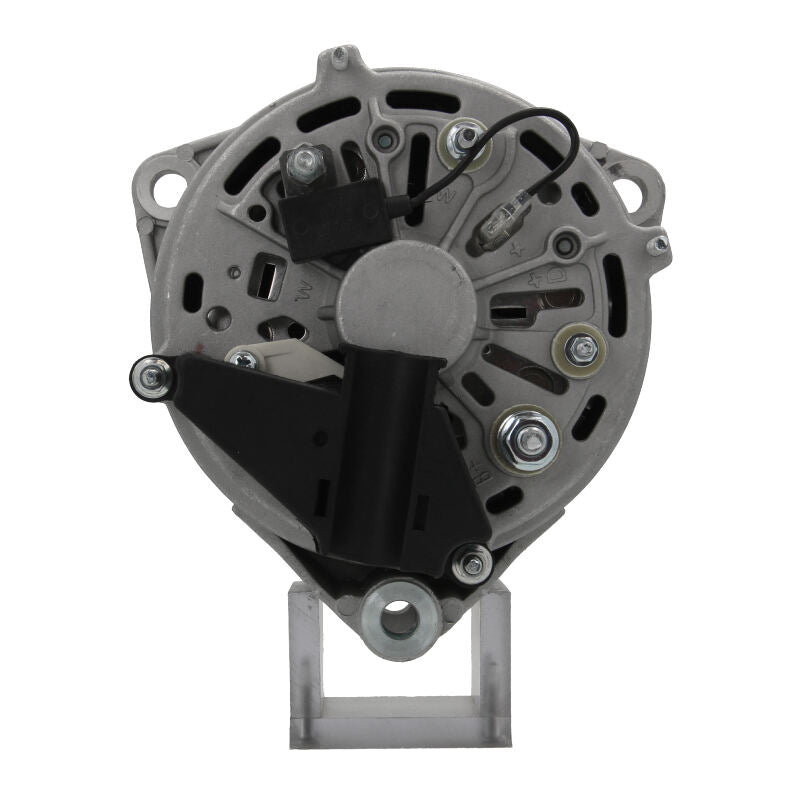

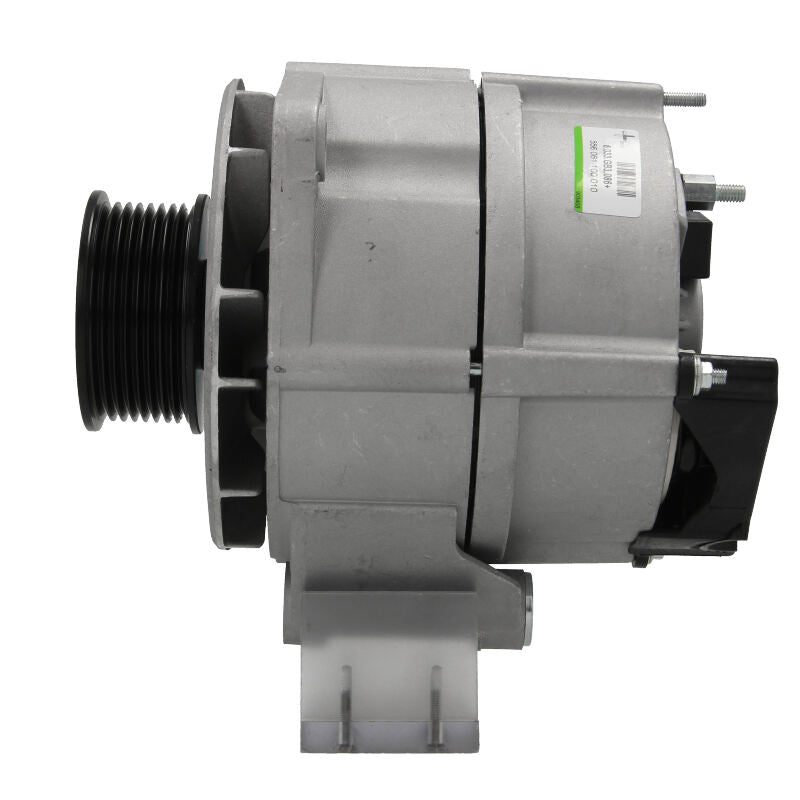

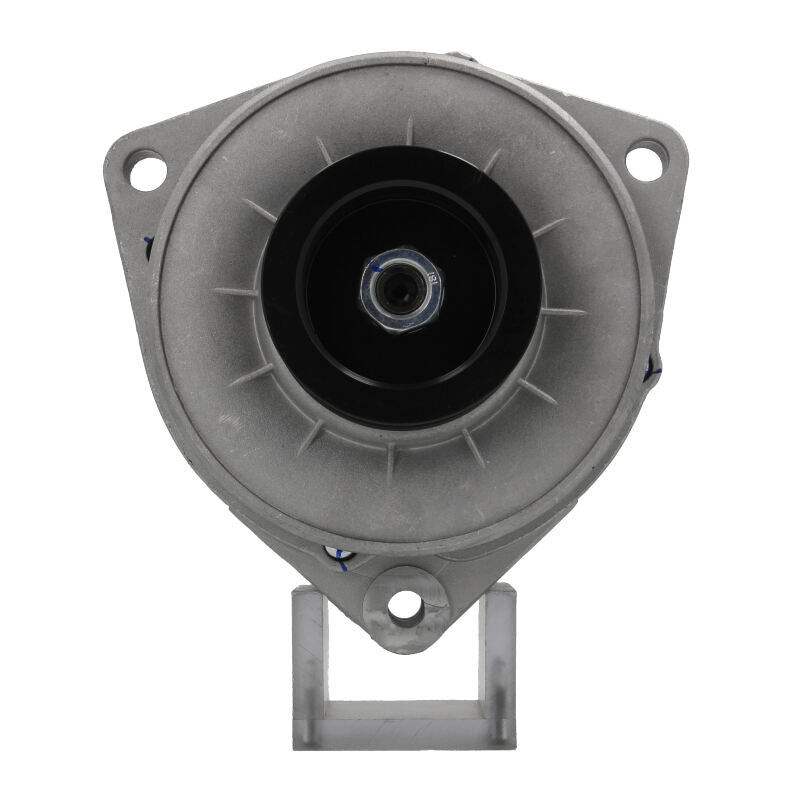

PlusLine Original Alternator for Mercedes 100A 6033GB3086+
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Alternator - +Line Original 6.033.GB3.086+ (PSH ref: 556.061.100.010)
Voltage: 24
B+: M8
No. mounting holes: 3
Amperage: 100
Free wheel pulley: No
Grooves: 8
Pulley (mm): 71.6
Replaces OEM reference(s):
Mercedes-Benz: 0101540002, Mercedes-Benz: A0101540002
Replaces aftermarket reference(s):
Bosch: 0120468145, Bosch: 6033GB3086, Lucas: LEA0166, Lucas: LRA03685, Lucas: LRA3685
