PlusLine Original Condenser for BMW 814012+
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description

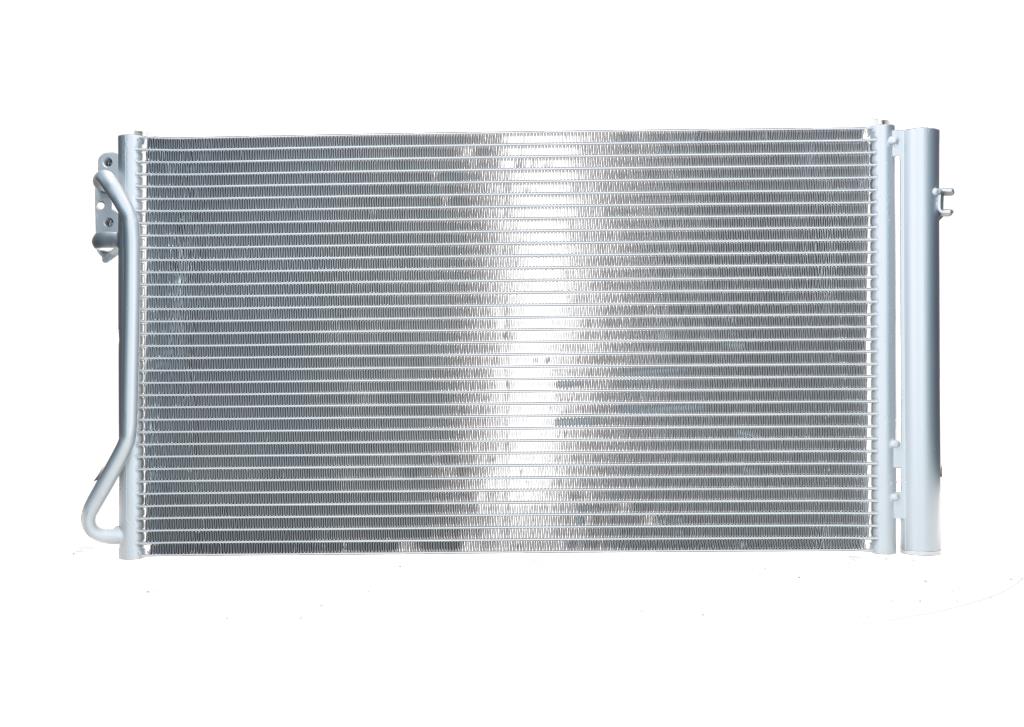

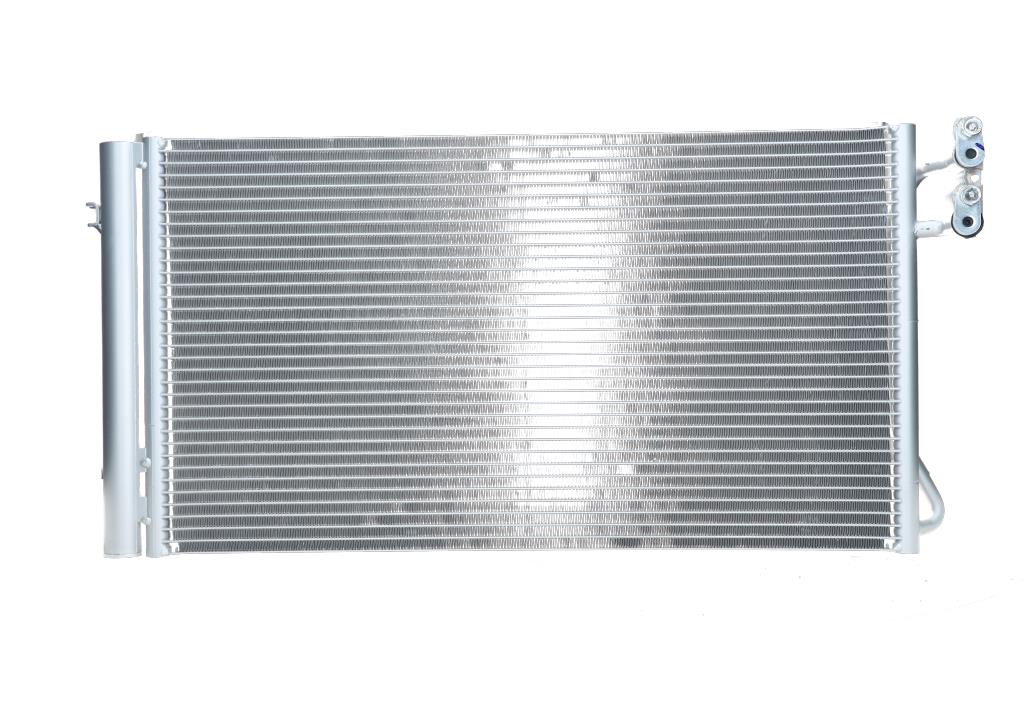

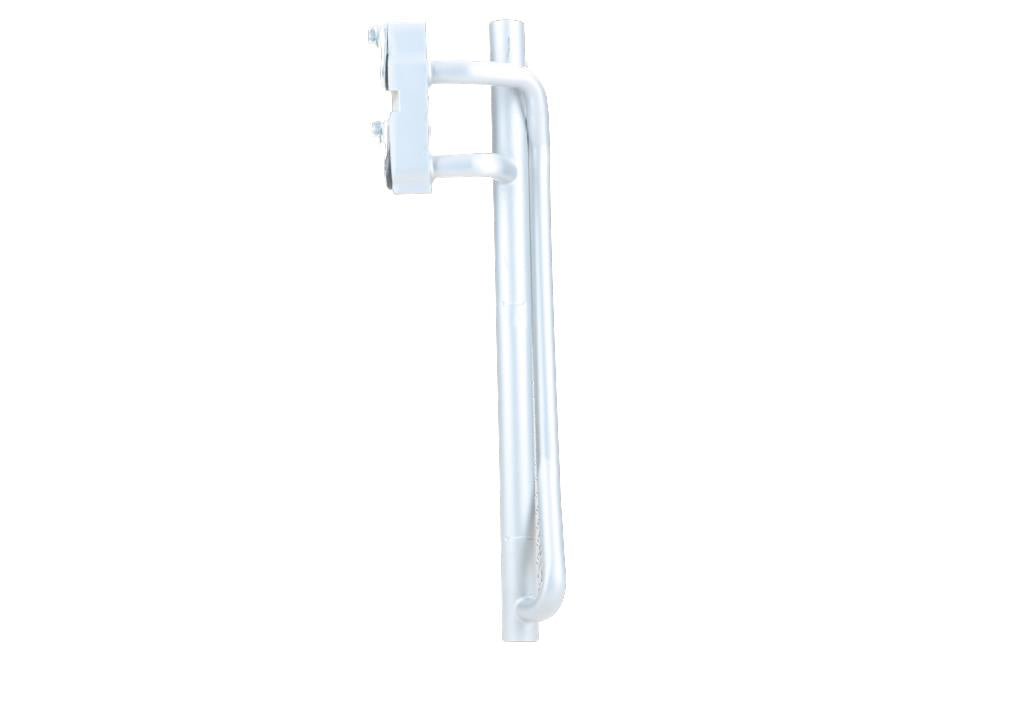

Aircon condenser - +Line Original 814012+ (PSH ref: 090.211.004.000)
Material: Aluminium
Core length (mm): 624.00000
Core width (mm): 342.00000
Core depth (mm): 18.00000
With dryer: Yes
Inlet diameter (mm): 15.40000
Outlet diameter (mm): 13.80000
Replaces OEM reference(s):
BMW: 6930039, BMW: 9169526, BMW: 9169789, BMW: 9206296, BMW: 64509169789, BMW: 64536930039, BMW: 64539169526, BMW: 64539206296, BMW: 64539229021
Replaces aftermarket reference(s):
Delphi: TSP0225546, Denso: DCN05012, Magneti Marelli: 350203752000, Mahle: AC414000P, Mahle: AC414000S, Valeo: 814012
