PlusLine Original Condenser for Ford 814177+
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description

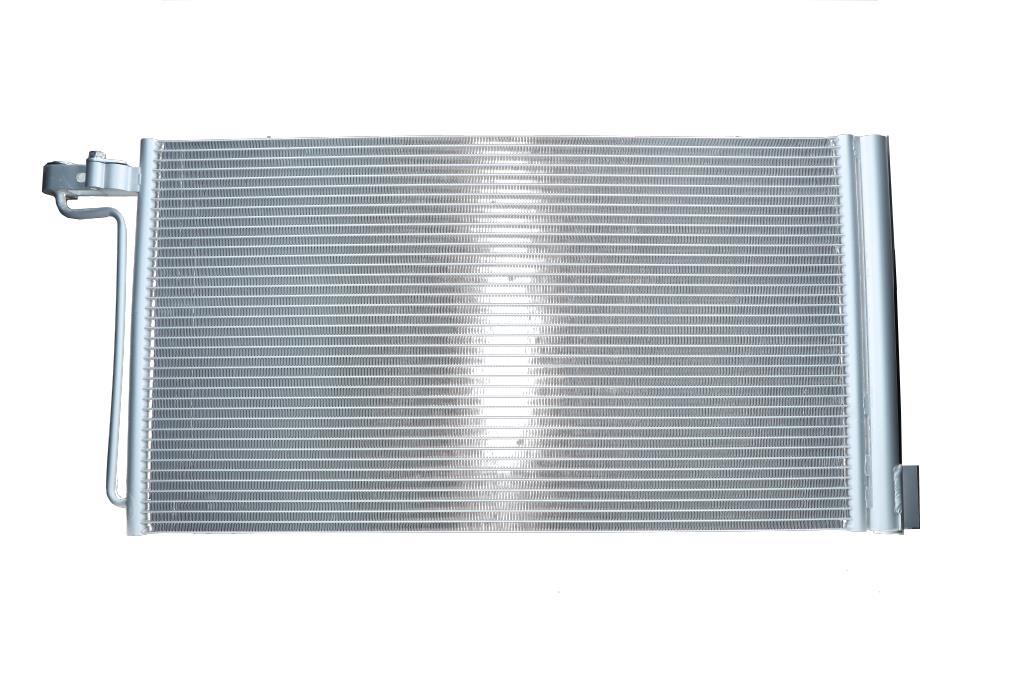

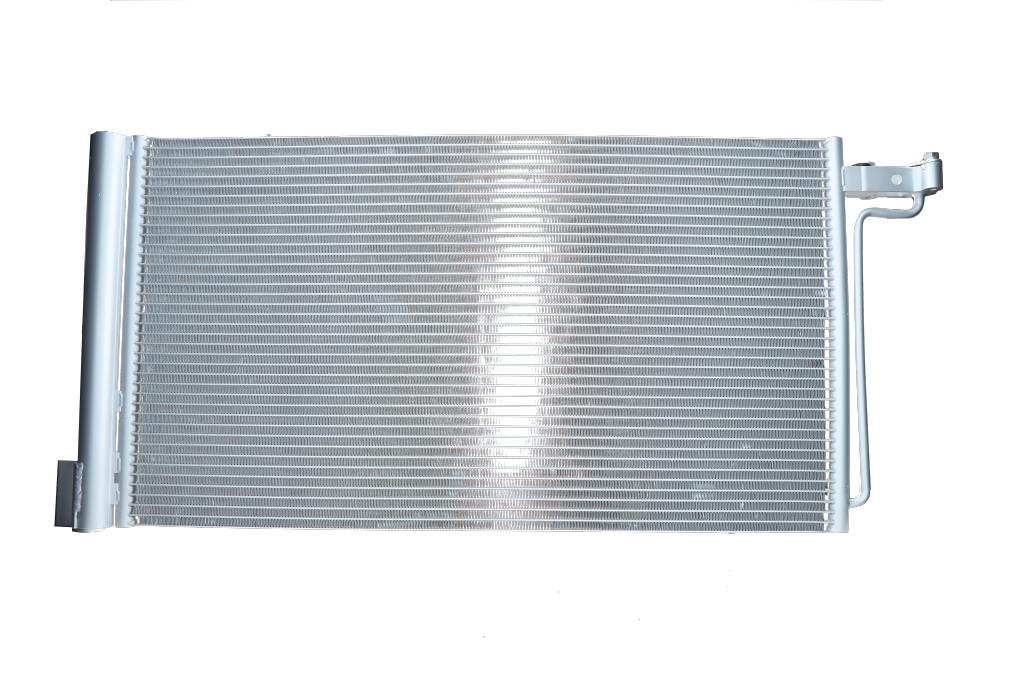

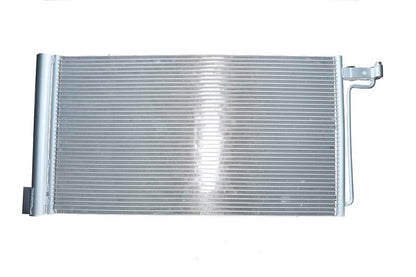

Aircon condenser - +Line Original 814177+ (PSH ref: 090.591.005.000)
Material: Aluminium
Core length (mm): 720.00000
Core width (mm): 392.00000
Core depth (mm): 16.00000

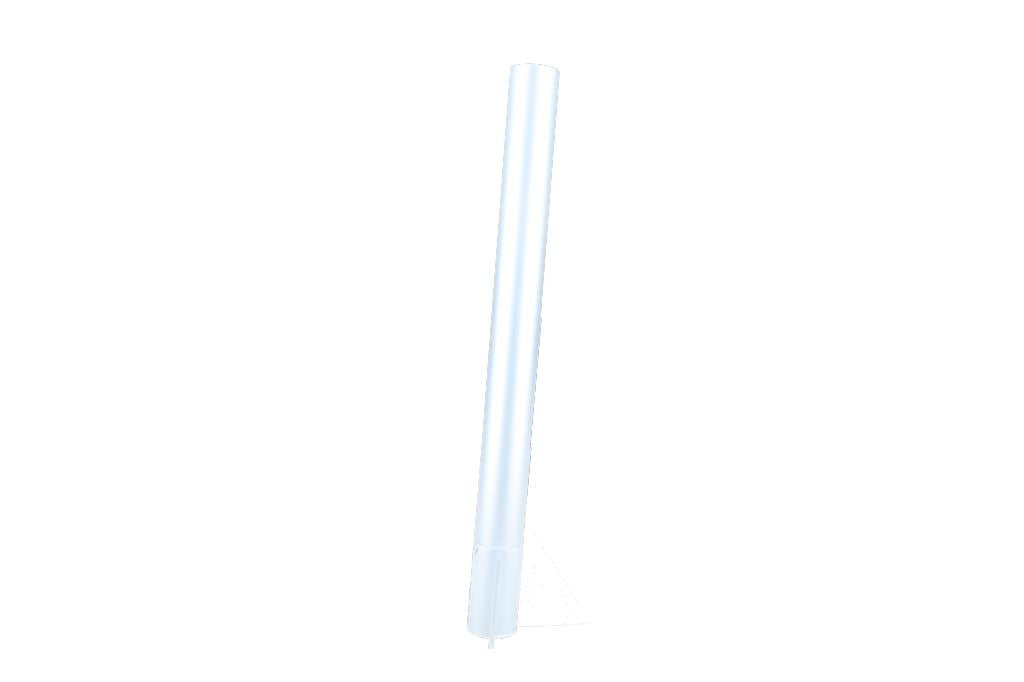

With dryer: Yes
Inlet diameter (mm): 26.40000
Outlet diameter (mm): 15.40000
Replaces OEM reference(s):
Ford: 1684204, Ford: 1769313, Ford: AV6119710AA, Ford: AV6119710AB, Ford: AV6Z19712A, Ford: CV6Z19712A, Ford: CV6Z19712J
Replaces aftermarket reference(s):
Delphi: CF2016112B1, Denso: DCN10028, Magneti Marelli: 350203796000, Mahle: AC29000P, Mahle: AC29000S, Valeo: 814177, Valeo: 814389
