PlusLine Original Condenser for Mazda TSP0225561+
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description

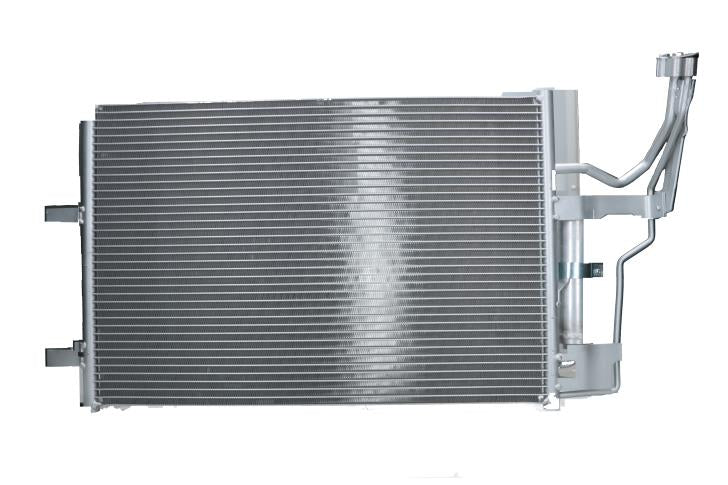

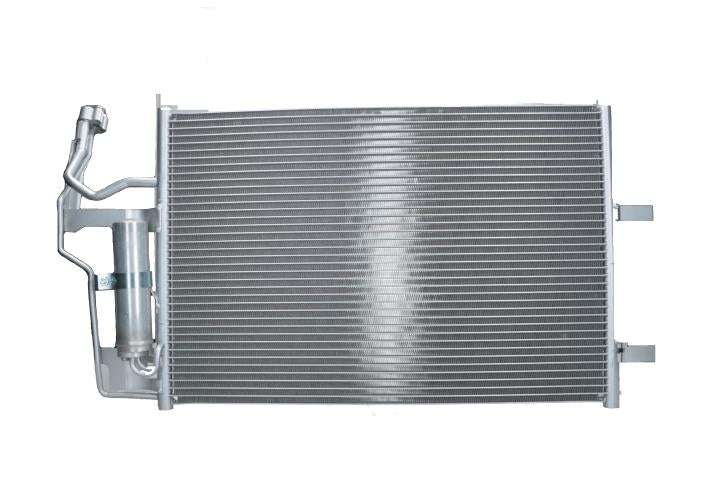

Aircon condenser - +Line Original TSP0225561+ (PSH ref: 090.141.011.040)
Material: Aluminium
Core length (mm): 550.00000
Core width (mm): 383.00000
Core depth (mm): 17.00000

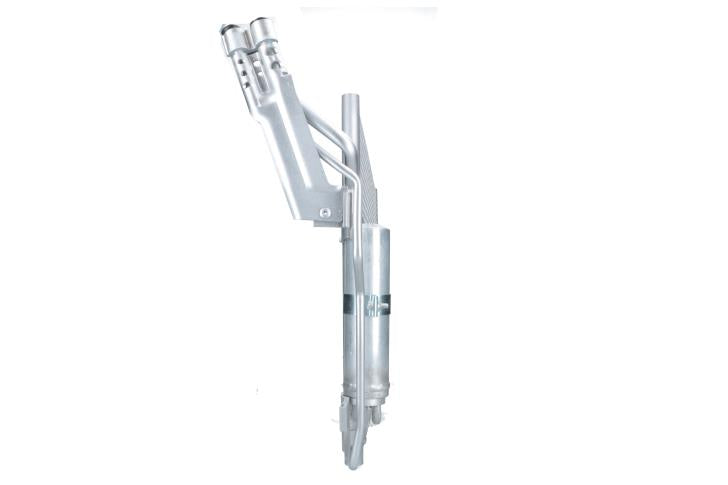

With dryer: Yes
Inlet diameter (mm): 12.90000
Outlet diameter (mm): 8.50000
Replaces OEM reference(s):
Mazda: BP4K61480A, Mazda: BPYK6148Z, Mazda: BPYK6148ZA
Replaces aftermarket reference(s):
Delphi: TSP0225561, Denso: DCN44003, Magneti Marelli: 350203355000
