PlusLine Original Condenser for Nissan DCN46020+
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description

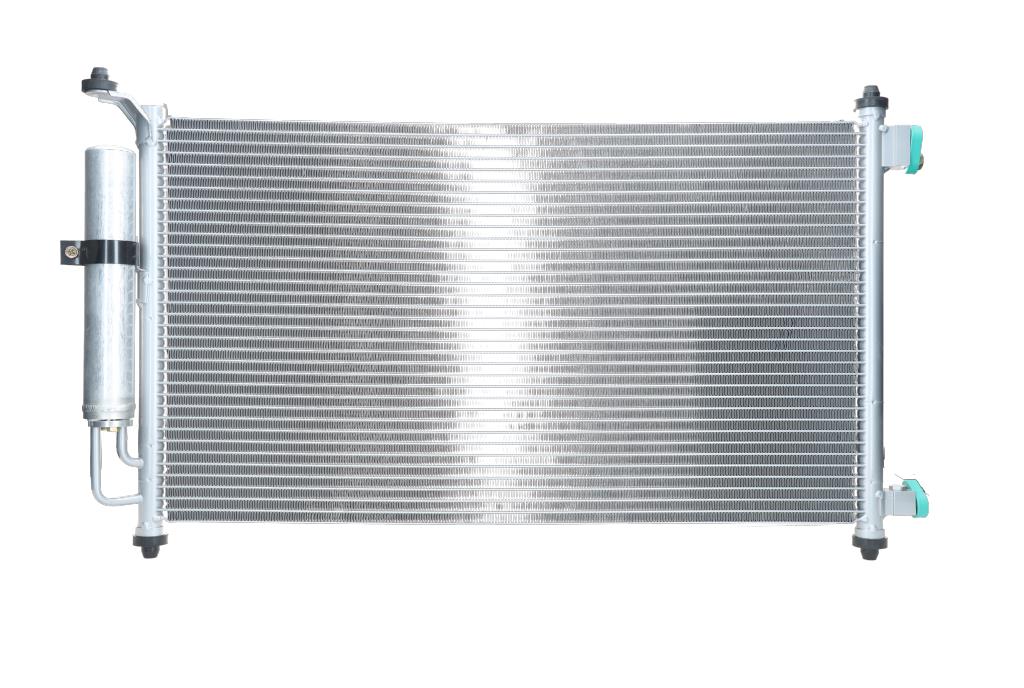

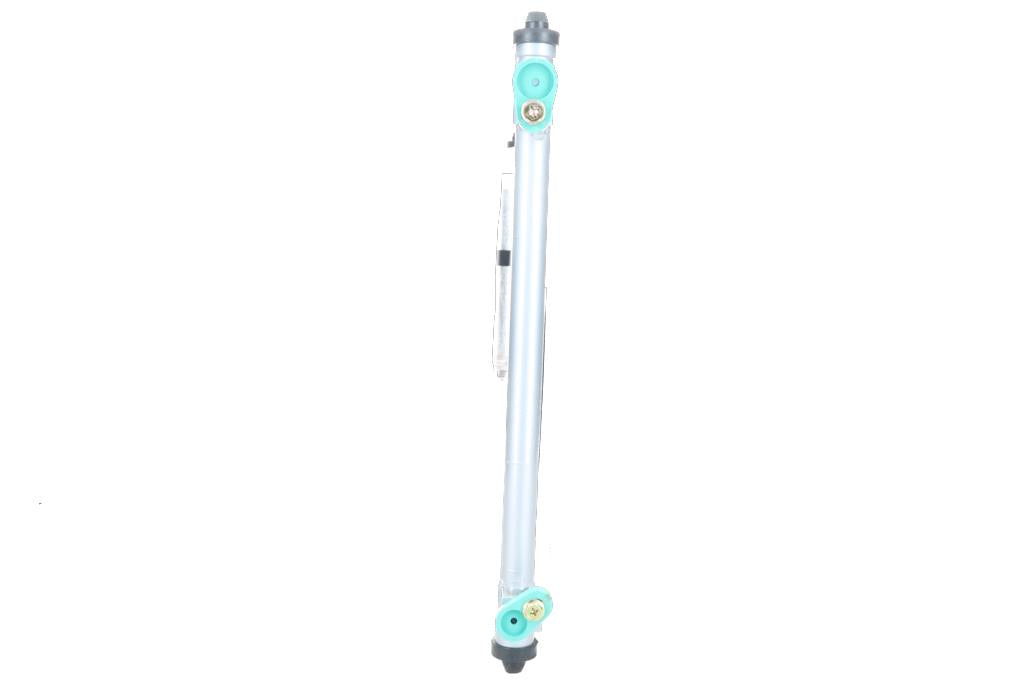

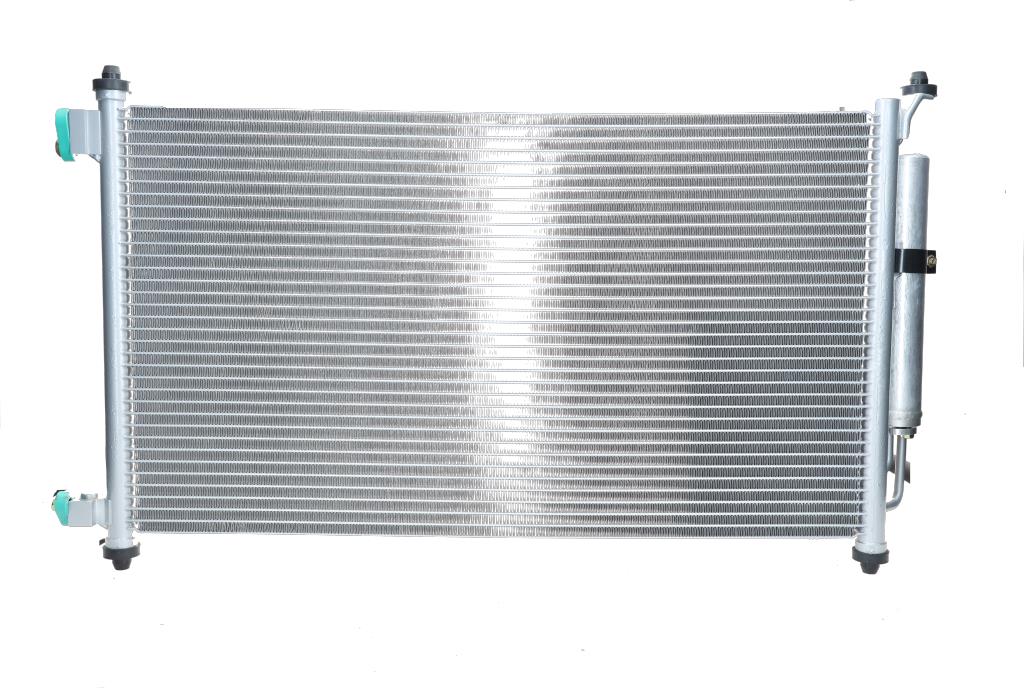

Aircon condenser - +Line Original DCN46020+ (PSH ref: 090.161.021.050)
Material: Aluminium
Core length (mm): 650.00000
Core width (mm): 343.00000
Core depth (mm): 16.00000
With dryer: Yes
Inlet diameter (mm): 15.50000
Outlet diameter (mm): 10.10000
Replaces OEM reference(s):
Nissan: 92100AX800, Nissan: 92100AX801, Nissan: 92100AX80B, Nissan: 92100BA60A, Nissan: 92100BH40A, Nissan: 92100EL000, Nissan: 92100EL00A, Nissan: 92100ZW40A, Nissan: 92100ZW40D
Replaces aftermarket reference(s):
Delphi: CF20237, Denso: DCN46020, Magneti Marelli: 350203829000, Mahle: 70816566, Mahle: 351307781, Mahle: 8FC351307781, Mahle: AC558000S, Mahle: AC558001S, Valeo: 817836
Not sure this is the correct part?
Send your registration, VIN or the number from your existing part. We’ll use the product you are viewing as the reference for your enquiry.
