PlusLine Original Condenser for Opel 817505+
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description

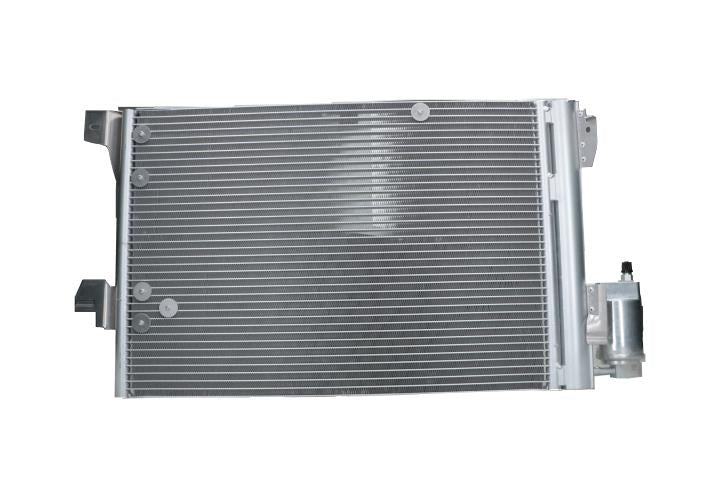

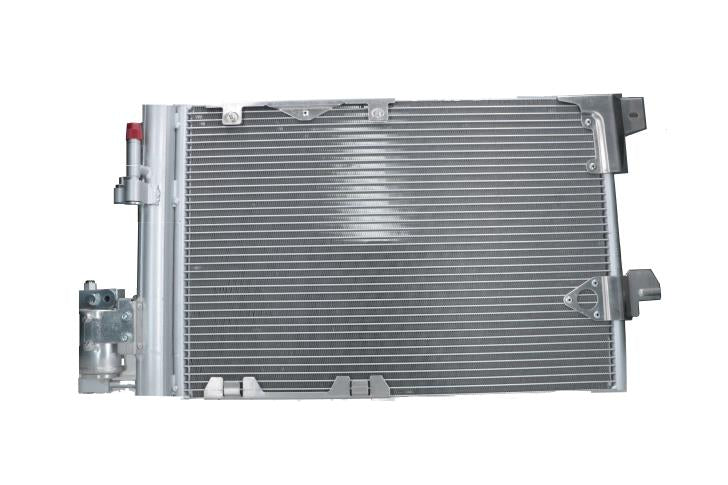

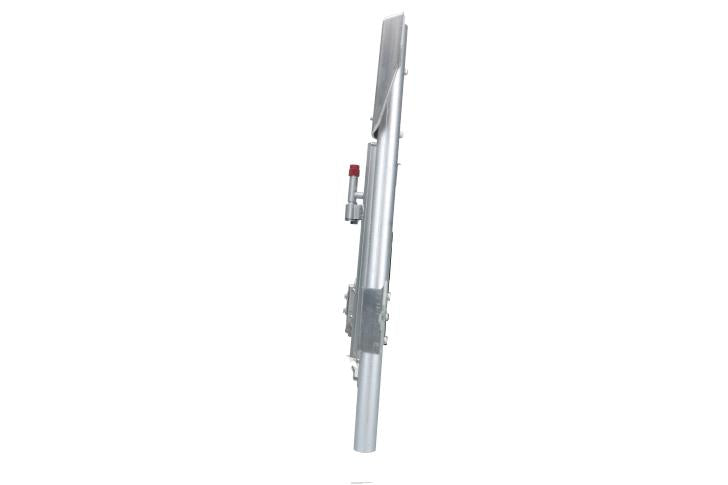

Aircon condenser - +Line Original 817505+ (PSH ref: 090.131.004.000)
Material: Aluminium
Core length (mm): 573.00000
Core width (mm): 383.00000
Core depth (mm): 16.00000
With dryer: Yes
Inlet diameter (mm): 11.70000
Outlet diameter (mm): 11.70000
Replaces OEM reference(s):
General Motors: 3131830, Opel: 1850055, Opel: 1850057, Opel: 1850074, Opel: 1850292, Opel: 9118897, Opel: 9119176, Opel: 9130610, Opel: 09130610, Opel: 90559846, Opel: 93170621, Opel: 95515191
Replaces aftermarket reference(s):
Delphi: CF20552, Delphi: TSP0225196, Delphi: TSP0225478, Denso: DCN20005, Magneti Marelli: 350203277000, Magneti Marelli: 350203902000, Mahle: AC337000P, Mahle: AC337000S, Mahle: AC339000P, Mahle: AC339000S, Valeo: 810847, Valeo: 817505
Not sure this is the correct part?
Send your registration, VIN or the number from your existing part. We’ll use the product you are viewing as the reference for your enquiry.
