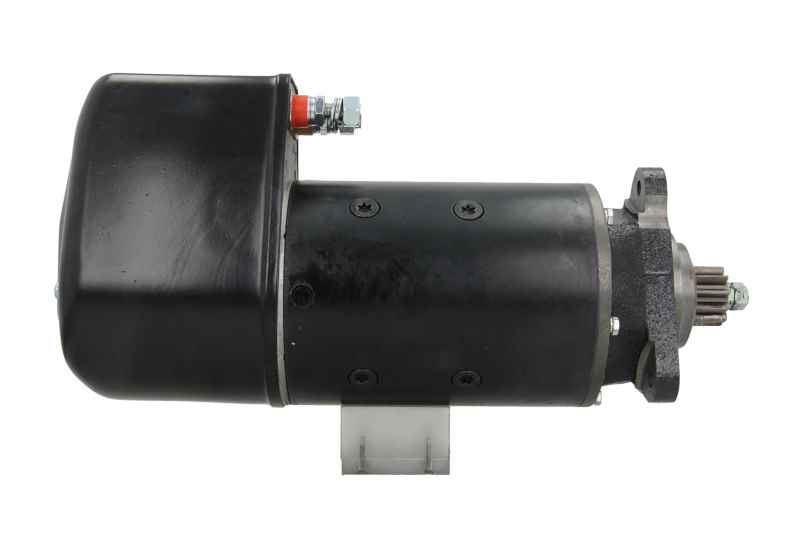

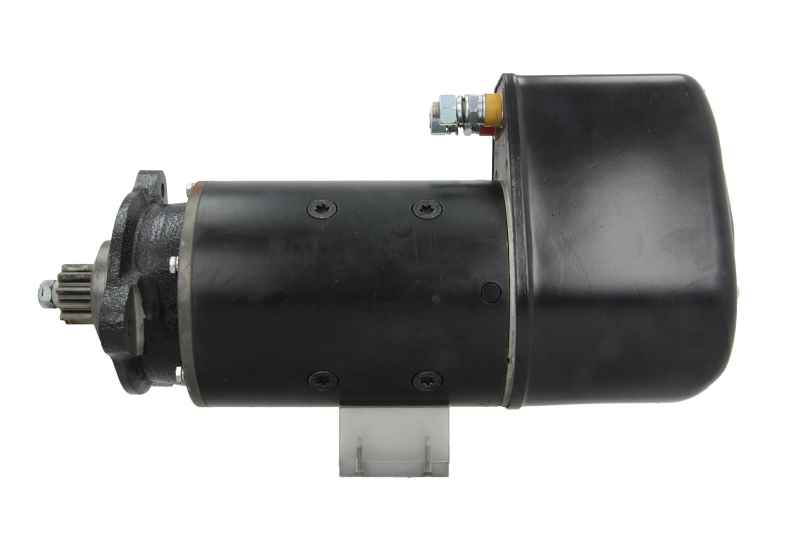

PlusLine Original Starter Motor for KHD 9.0 kw 0001510009+
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
Starter Motor - +Line Original 0.001.510.009+ (PSH ref: 551.218.113.010)
Voltage: 24
B+: M12
No. mounting holes: 3
kW: 9
Rotation: Clockwise
Position: +105
Teeth: 11
Spigot (mm): 89
Replaces aftermarket reference(s):
Bosch: 0001510006, Bosch: 0001510009, Bosch (USA): BX510009, Lucas: LRS01944, Lucas: LRS1944
