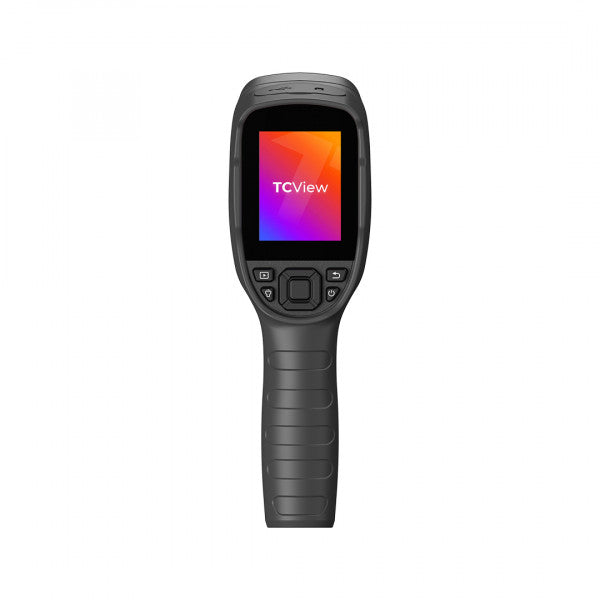

TOPDON TC005 Thermal Imaging Camera
Key part information
The most useful product information is shown here at a glance, including identification, application and reference numbers.
Item specifics
Description
The TOPDON TC005 is a compact yet professional-grade thermal imaging camera built for technicians, engineers, and inspectors who need clear, accurate thermal visuals on the go. With its 256×192 IR resolution and high thermal sensitivity of <40mK, the TC005 captures sharp thermal imagery with precise detail, even in environments where temperature differences are minimal. Covering a wide measurement range of −20 °C to 550 °C, it’s suitable for tasks such as HVAC diagnostics, electrical inspections, plumbing analysis, and industrial maintenance. The device offers ±2 °C accuracy and displays variations down to 0.1 °C, making it highly reliable for detecting thermal anomalies. The camera’s four imaging modes—Thermal, Dual Light, Visible, and Picture-in-Picture—offer flexibility for different inspection scenarios. Its 56° wide field of view allows broader coverage without the need to adjust focus. Equipped with a 2.8-inch display, built-in LED light, and 12-hour battery, the TC005 ensures efficient performance even in low-light or demanding field conditions. Seamless PC connectivity and diagnostic software allow users to project and analyze data easily. Designed for durability, the TC005 is IP54 rated and resistant to drops from up to 2 meters, making it a dependable tool across tough environments.
- 256×192 resolution
- <40mK sensitivity
- −20 °C to 550 °C range
- ±2 °C accuracy
- 2.8in. display
- 4 imaging modes
- 56° wide FOV
- LED fill light
- 12-hour runtime
- IP54 rated & 2m drop
- IR Resolution: 256×192 pixel
- Image Frequency: 20Hz
- FOV: 56°
- Focal Length: 3.2 mm
- Thermal Sensitivity (NETD): <40mK
- Temperature Range: −20 °C to +550 °C (−4 °F to +1022 °F)
- Accuracy: ±2 °C
- Measurement Resolution: 0.1 °C
- Display: 2.8in. screen (7.1 cm)
- Imaging Modes: Thermal, Visible, Dual, Picture-in-Picture
- Battery Life: Up to 12 hours
- Connectivity: PC analysis & projection
- Protection: IP54, 2m drop-resistant
- Dimensions: 240×70×90 mm (9.45”×2.76”×3.54”)
- Weight: 520 g
