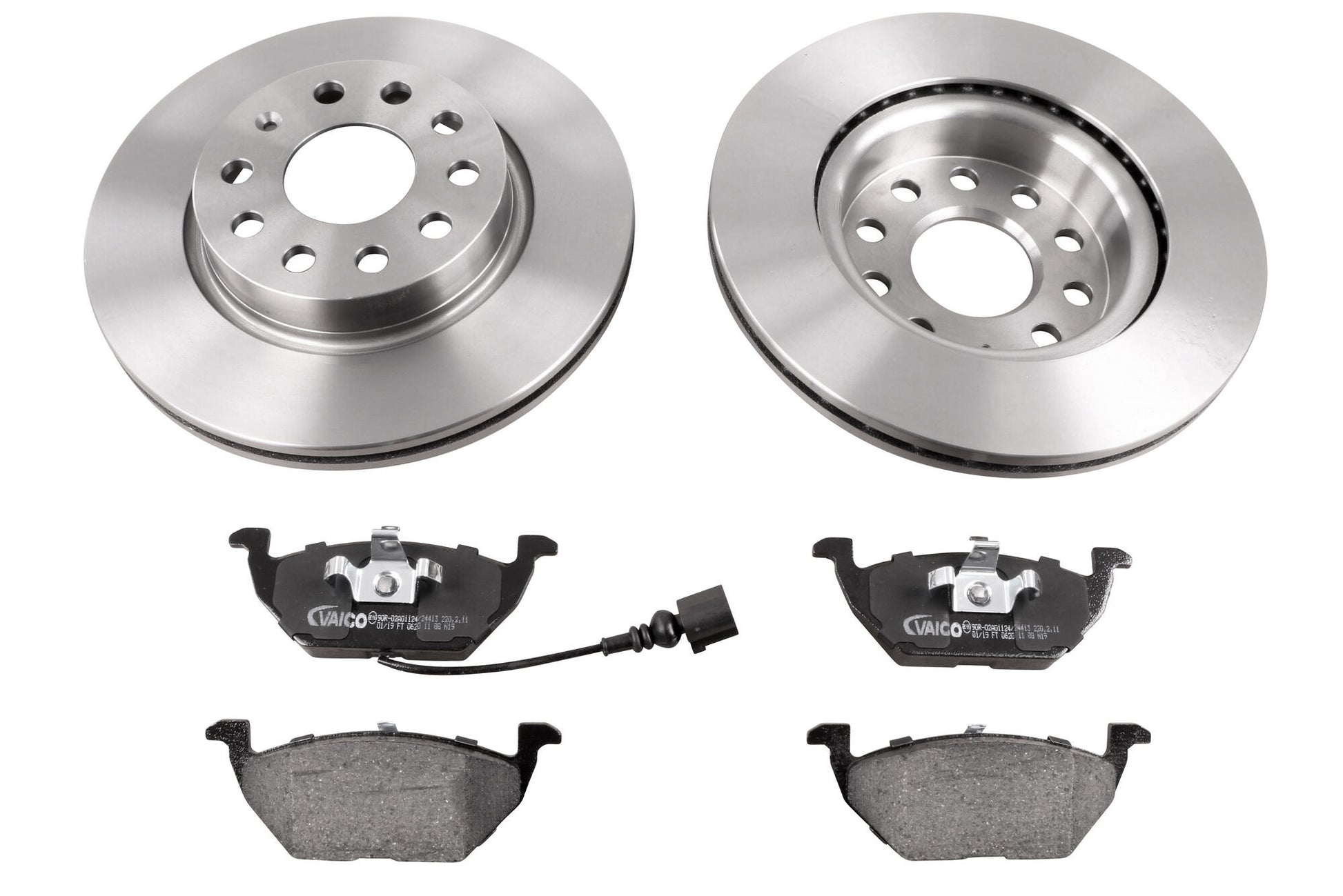

VAICO Brake Kit, disc brake V10-90003

VAICO V10-90003 - Brake Kit, disc brake

Fitting Position: Front Axle
Outer Diameter [mm]: 280
Brake Disk Thickness [mm]: 22
Brake disk Type: Vented
Rim Hole Number: 5
Inner Diameter [mm]: 144
Number of Holes: 5
No. of holes 2: 9
Bore Ø [mm]: 15,3
Minimum Thickness [mm]: 19
Bore Ø 1 [mm]: 15,3
Height [mm]: 49,9
Centering Diameter [mm]: 65
Pitch Circle Ø [mm]: 112
Bore Ø 2 [mm]: 6,6
Weight [kg]: 14,787
Supplementary Article/Info 2: with brake pads
Wear Warning Contact: Incl. wear warning contact

Replaces OEM reference(s):
AUDI: 1J0698151D, AUDI: 1J0698151E, AUDI: 1J0698151F, AUDI: 1J0698151G, AUDI: 1J0698151P, AUDI: 1K0615301AC, AUDI: 1K0615301AK, AUDI: 1K0615301AQ, AUDI: 1K0615301AS, AUDI: 1K0615301S, AUDI: 1K0698151A, AUDI: 1K0698151F, AUDI: 1K0698151K, AUDI: 1K0798151D, AUDI: 5C0615301, AUDI: 8P0698302C, AUDI: 8P0698302H, AUDI: 8Z0698151A, AUDI: JZW615301A, AUDI: JZW698151, DACIA: JZZ698151AA, SEAT: 1J0698151D, SEAT: 1J0698151E, SEAT: 1J0698151F, SEAT: 1J0698151G, SEAT: 1K0615301AC, SEAT: 1K0615301AK, SEAT: 1K0615301AS, SEAT: 1K0615301S, SEAT: 1K0698151A, SEAT: 1K0698151F, SEAT: 1K0698151G, SEAT: 1K0698151J, SEAT: 1K0698151K, SEAT: 5C0615301, SEAT: 5C0698151, SEAT: 8Z0698151A, SEAT: JZW615301A, SEAT: JZW698151, SEAT: JZW698451A, SKODA: 1J0698151D, SKODA: 1J0698151E, SKODA: 1J0698151F, SKODA: 1J0698151G, SKODA: 1K0615301AC, SKODA: 1K0615301AK, SKODA: 1K0615301AS, SKODA: 1K0615301S, SKODA: 1K0698151A, SKODA: 1K0698151D, SKODA: 1K0698151F, SKODA: 1K0698151J, SKODA: 1S0698151B, SKODA: 5C0615301, SKODA: 8Z0698151A, SKODA: JZW615301A, SKODA: JZW698151, SKODA: JZW698451A, VAG: 1J0698151D, VAG: 1J0698151E, VAG: 1J0698151F, VAG: 1J0698151G, VAG: 1K0615301AC, VAG: 1K0615301AK, VAG: 1K0615301AKKIT, VAG: 1K0615301AQ, VAG: 1K0615301AS, VAG: 1K0615301S, VAG: 1K0698151A, VAG: 1K0698151F, VAG: 8Z0698151A, VAG: JZW698151, VW: 1J0698151D, VW: 1J0698151E, VW: 1J0698151F, VW: 1J0698151G, VW: 1JE698151A, VW: 1K0615301AC, VW: 1K0615301AK, VW: 1K0615301AKKIT, VW: 1K0615301AQ, VW: 1K0615301AS, VW: 1K0615301S, VW: 1K0698151A, VW: 1K0698151D, VW: 1K0698151F, VW: 1K0698151G, VW: 1K0698151K, VW: 1K0798151D, VW: 5C0615301, VW: 5C0698151, VW: 8E0098301AA, VW: 8E0098301S, VW: 8P0098301A, VW: 8P0698302A, VW: 8P0698302H, VW: 8Z0698151A, VW: JZW615301A, VW: JZW698151, VW: JZW698451A
