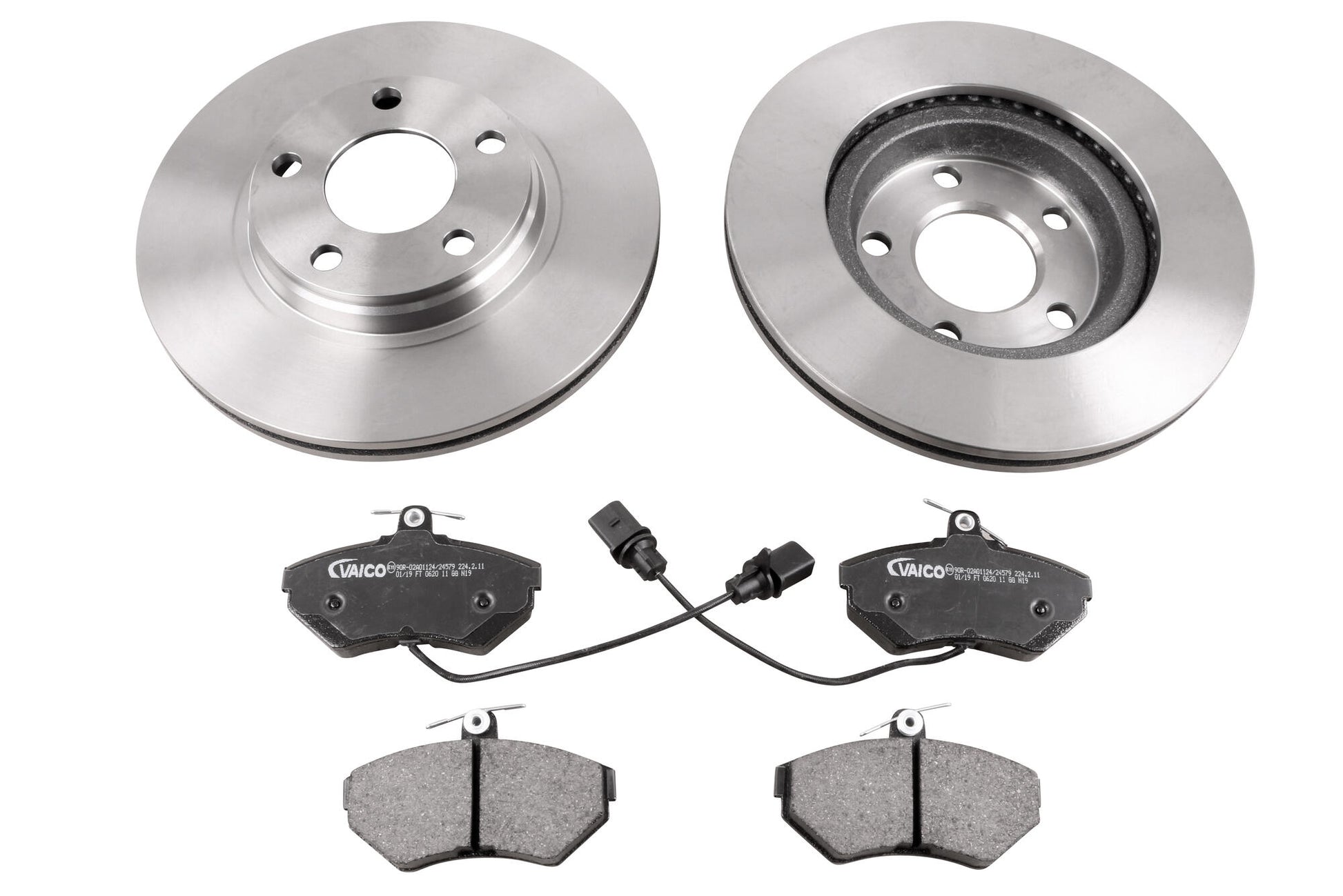

VAICO Brake Kit, disc brake V10-90005

VAICO V10-90005 - Brake Kit, disc brake

Fitting Position: Front Axle
Brake disk Type: Vented
Brake Disk Thickness [mm]: 22
Outer Diameter [mm]: 280
Height [mm]: 46,3
Number of Holes: 5
Centering Diameter [mm]: 68
Pitch Circle Ø [mm]: 112
No. of holes 2: 9
Bore Ø [mm]: 15,3
Minimum Thickness [mm]: 20
Inner Diameter [mm]: 146,5
Weight [kg]: 14,608
Supplementary Article/Info 2: with brake pads
Wear Warning Contact: Incl. wear warning contact

Replaces OEM reference(s):
AUDI: 8E0615301B, AUDI: 8E0615301D, AUDI: 8E0615301P, BMW: JZW615301Q, SEAT: 8E0615301B, SEAT: 8E0615301D, SEAT: 8E0615301P, SEAT: 8E0698151B, SEAT: 8E0698151M, SEAT: JZW615301Q, SKODA: 8E0615301B, SKODA: 8E0615301D, SKODA: 8E0615301P, SKODA: 8E0698151B, SKODA: 8E0698151M, VAG: 8E0615301B, VAG: 8E0615301D, VAG: 8E0615301P, VAG: 8E0615301PKIT, VAG: 8E0698151B, VAG: 8E0698151M, VW: 3D0615601E, VW: 4E0615601, VW: 4E0615601E, VW: 4E0615601J, VW: 8E0615301, VW: 8E0615301B, VW: 8E0615301D, VW: 8E0615301P, VW: 8E0615301PKIT, VW: 8E0698151B, VW: 8E0698151M
