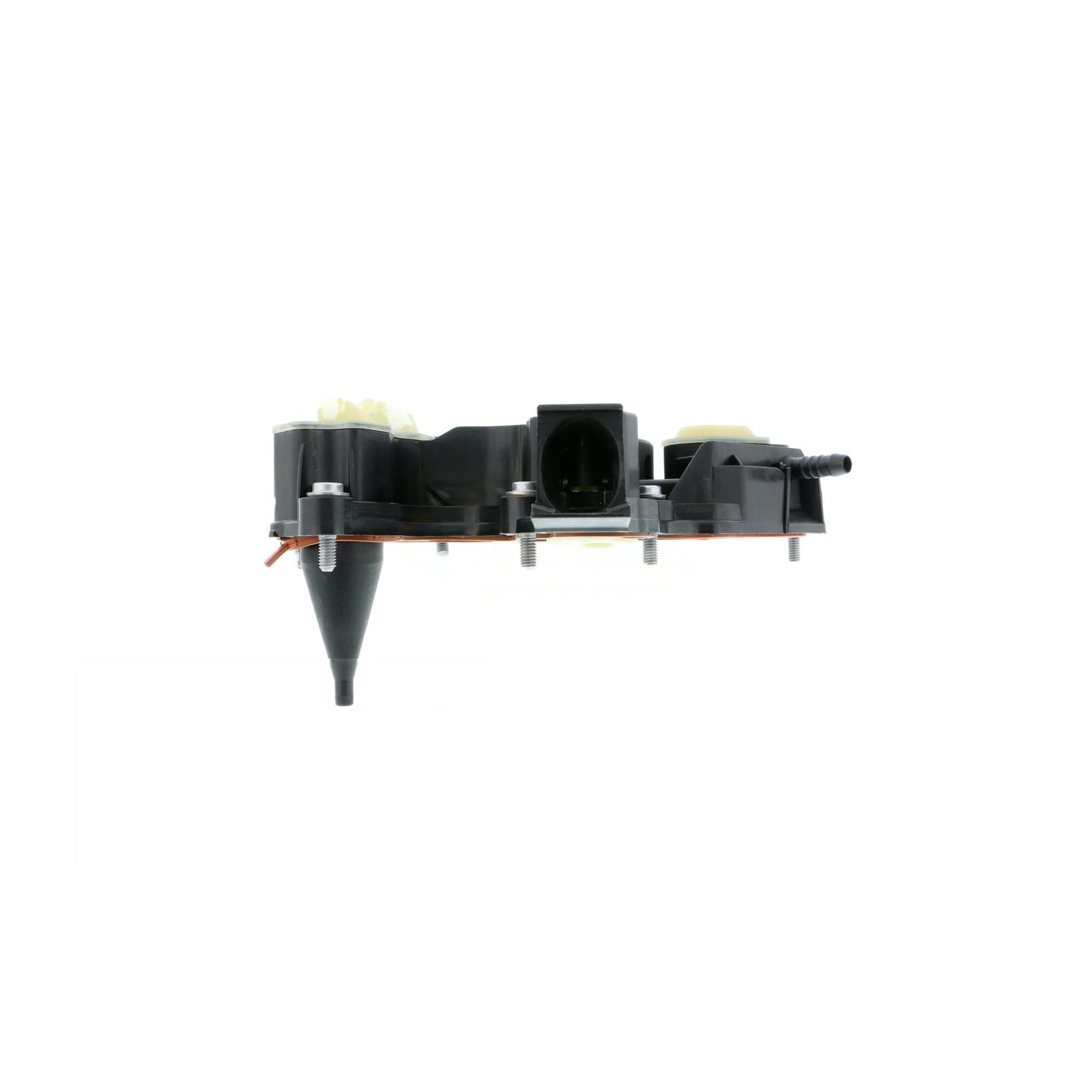

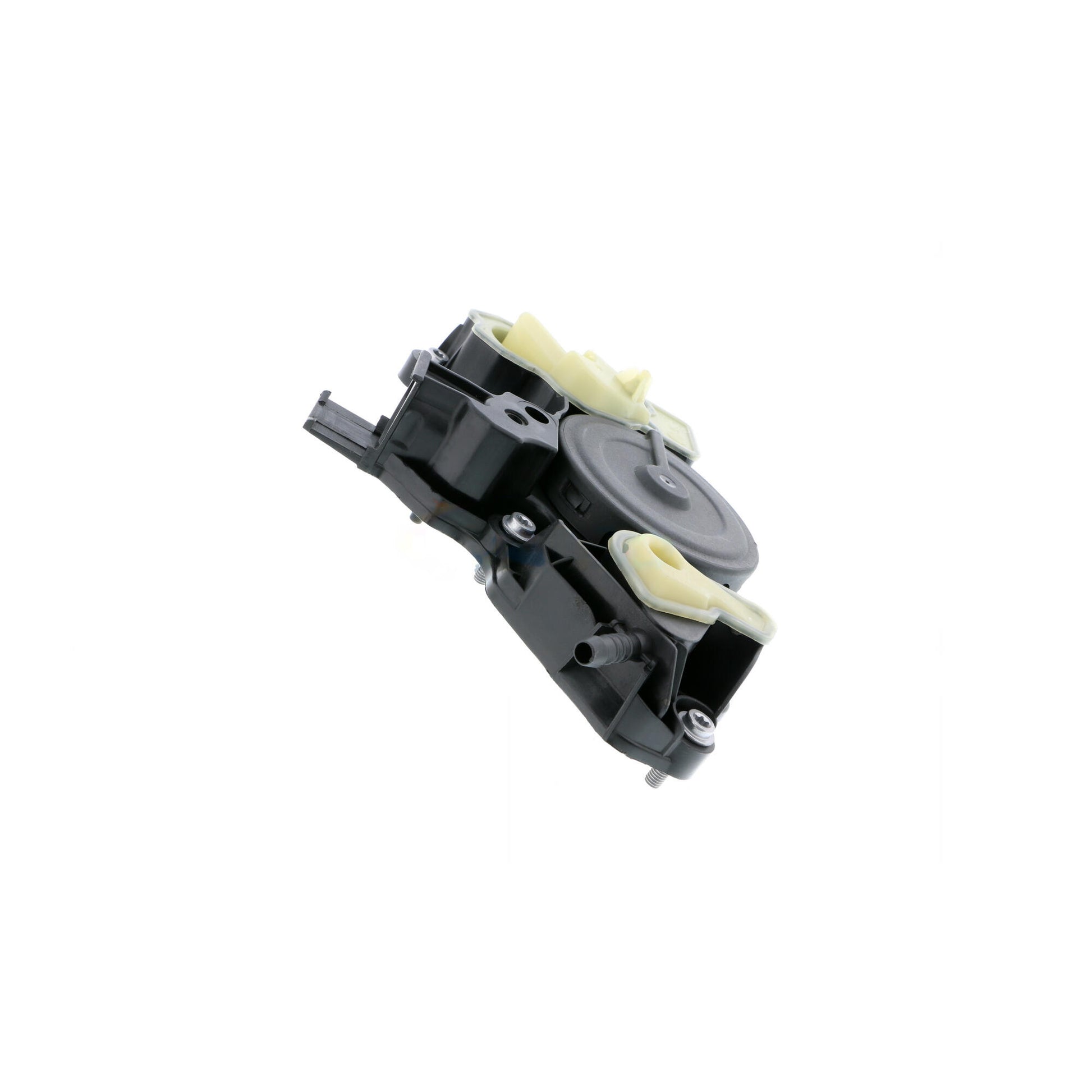

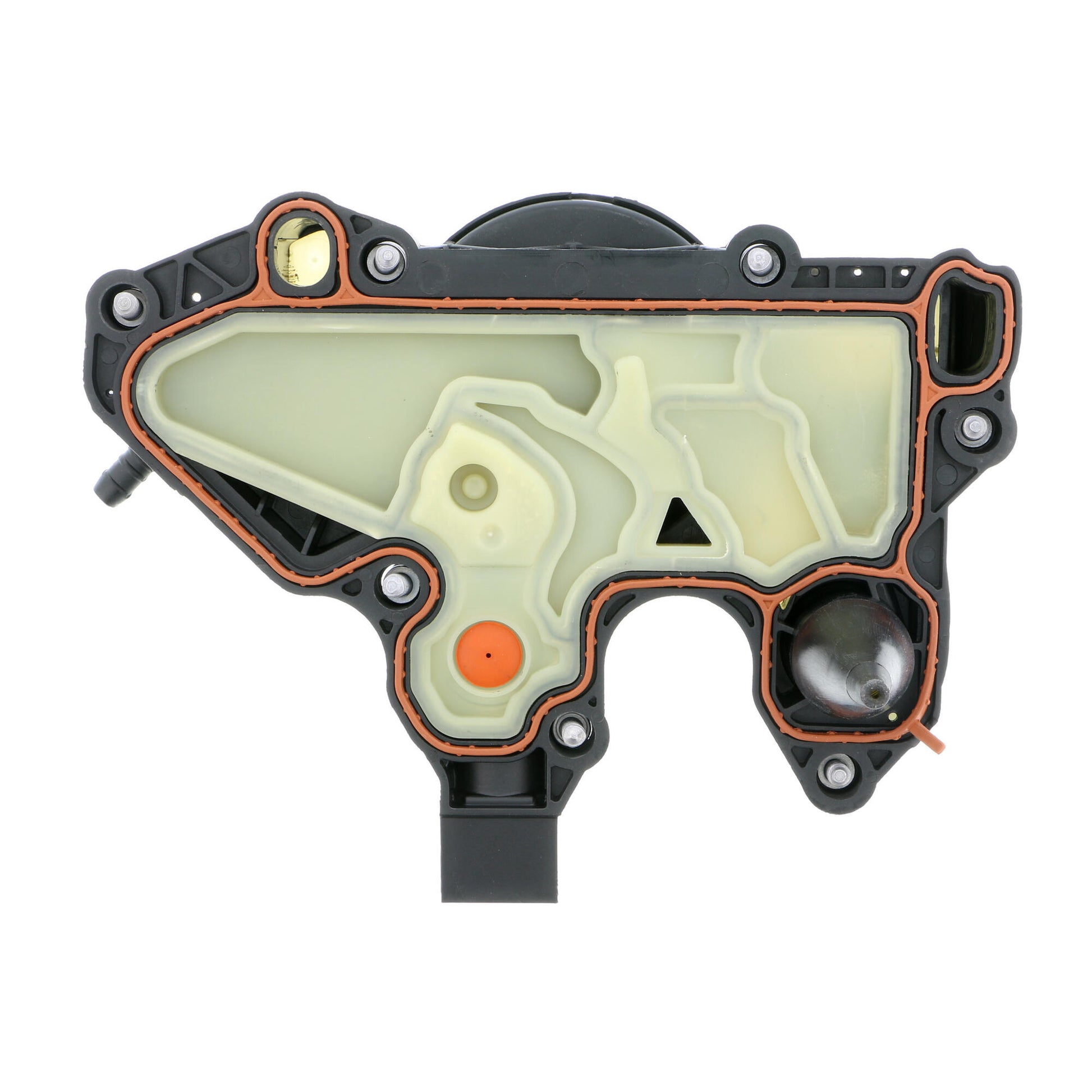

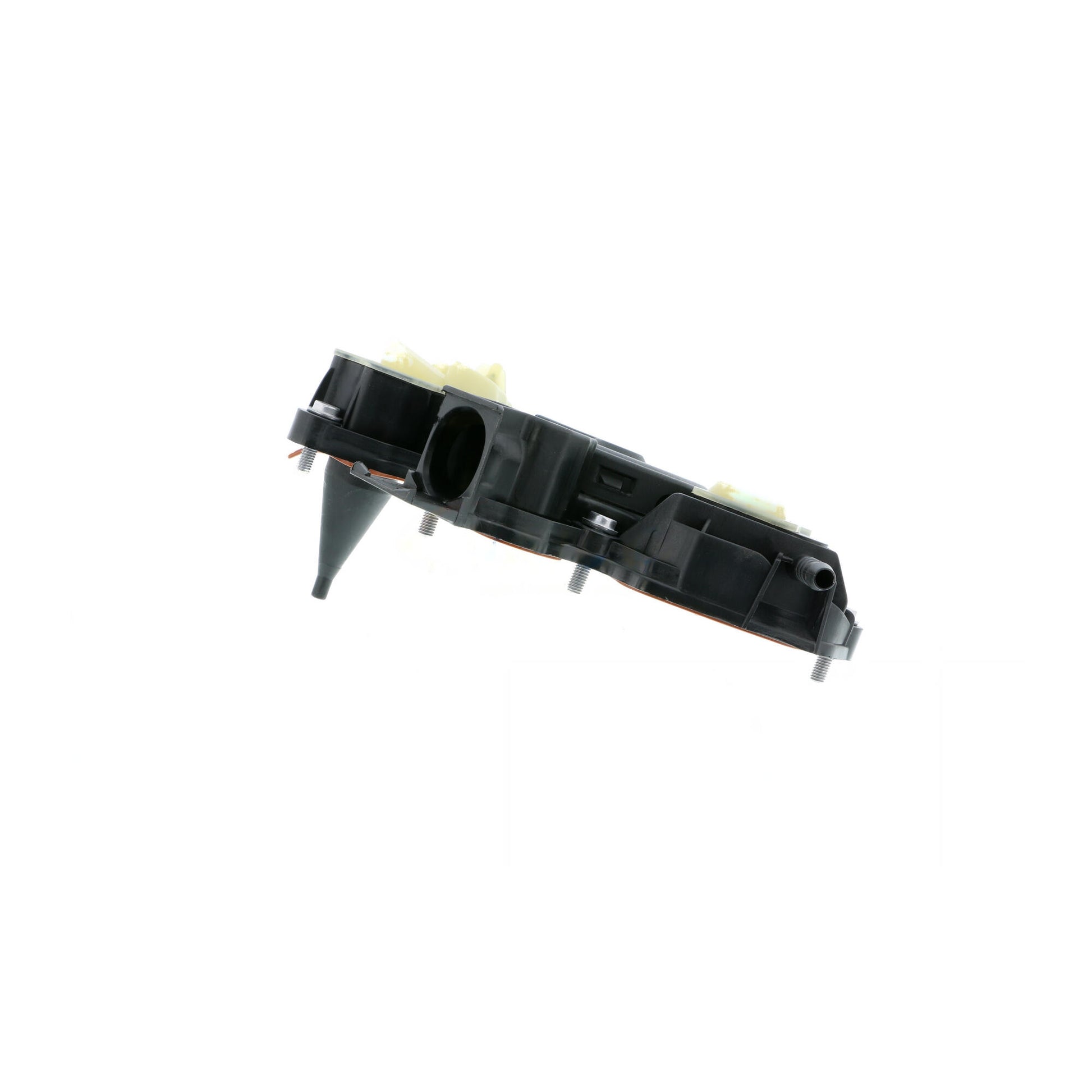

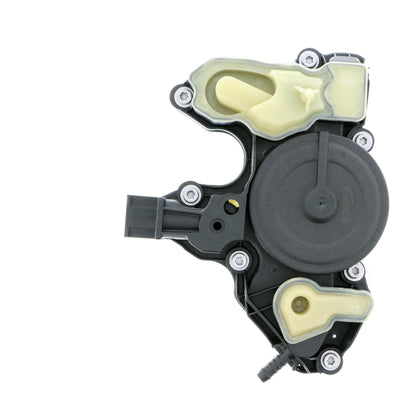

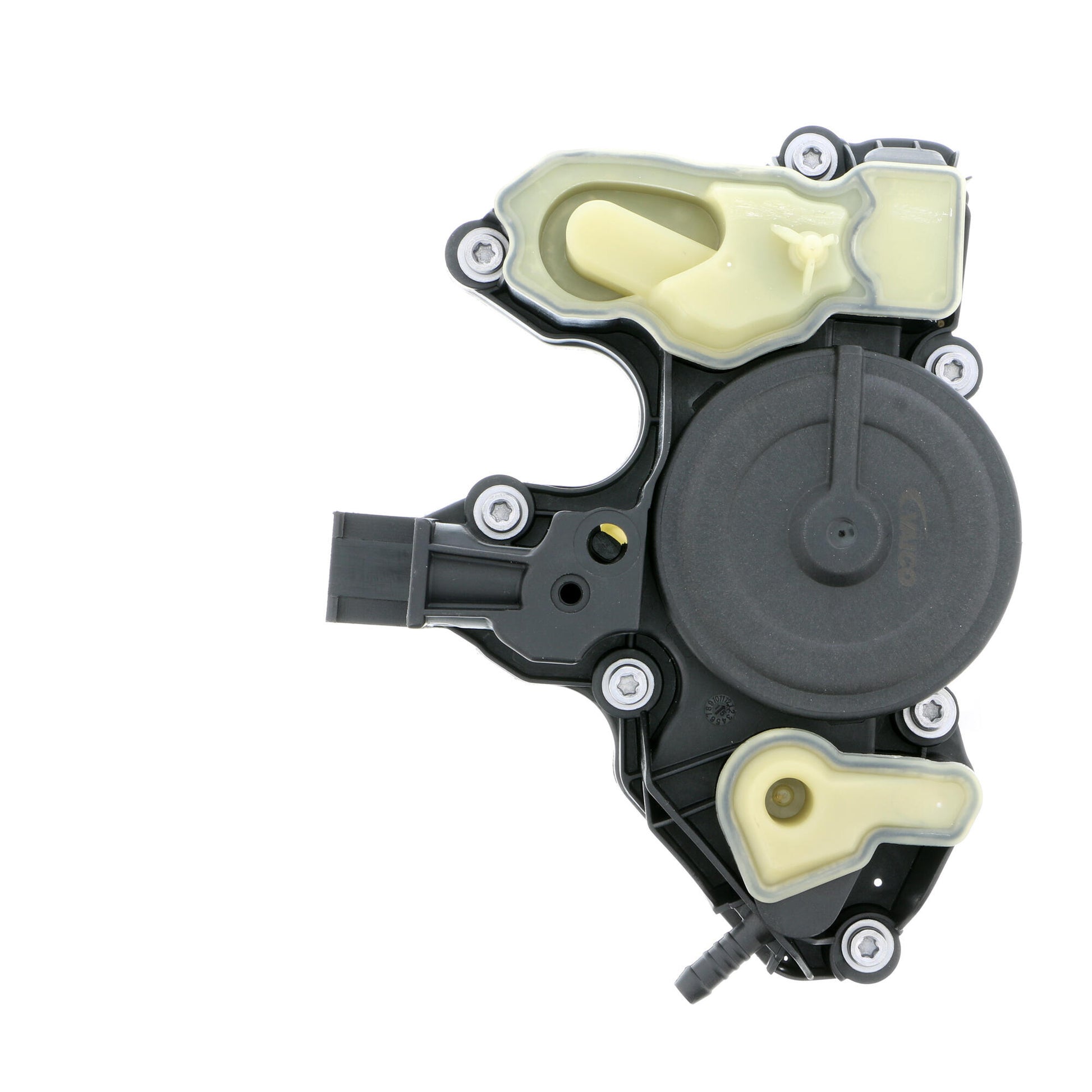

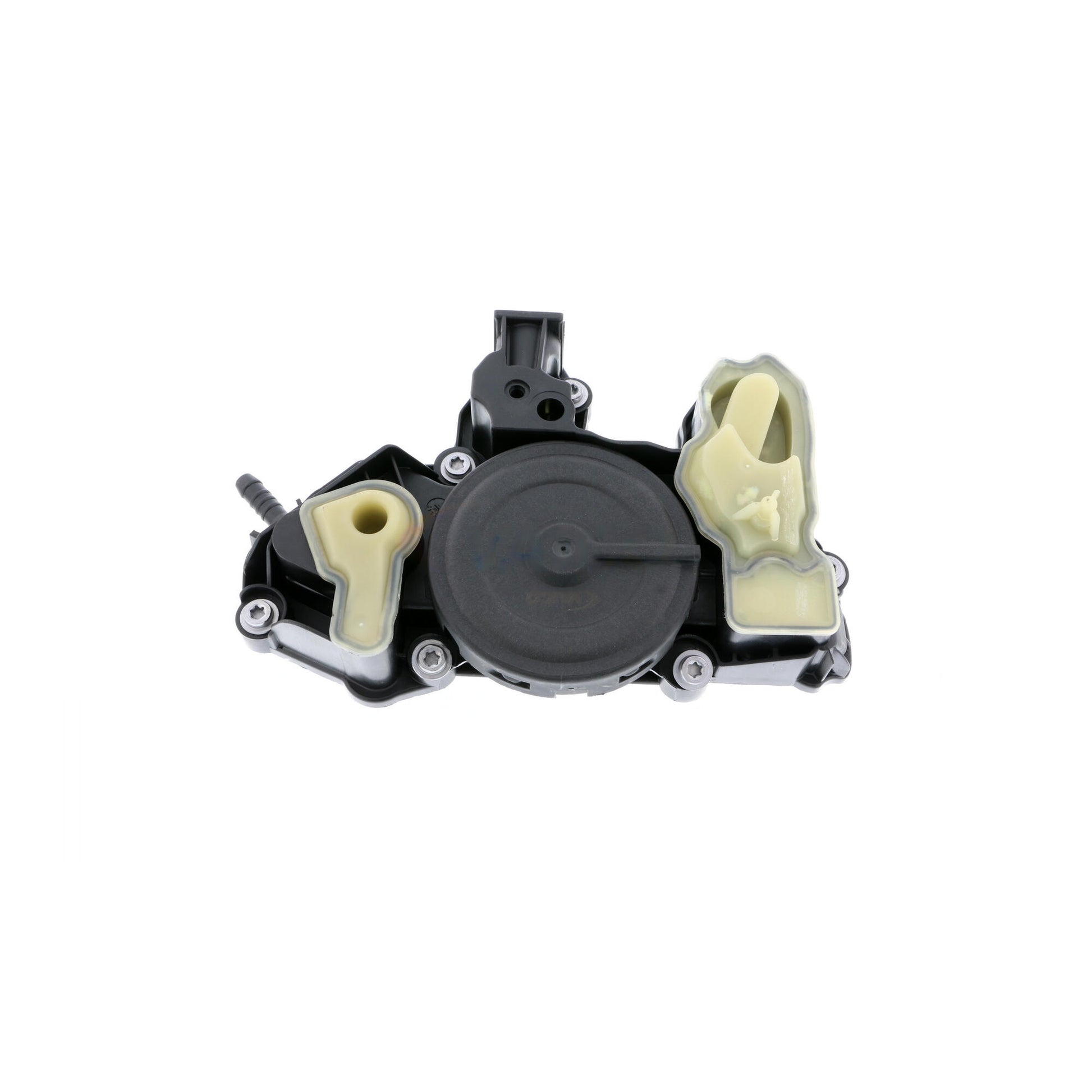

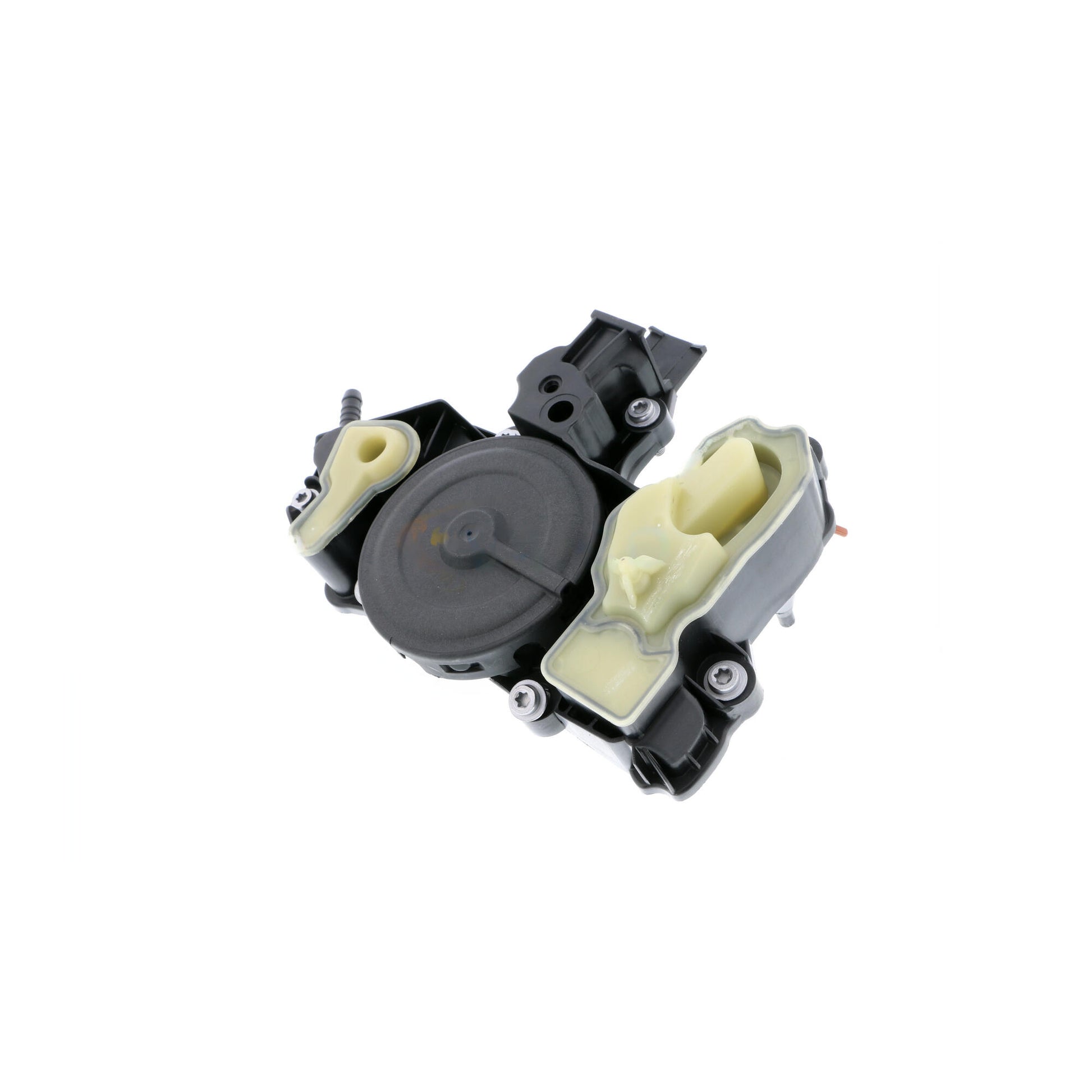

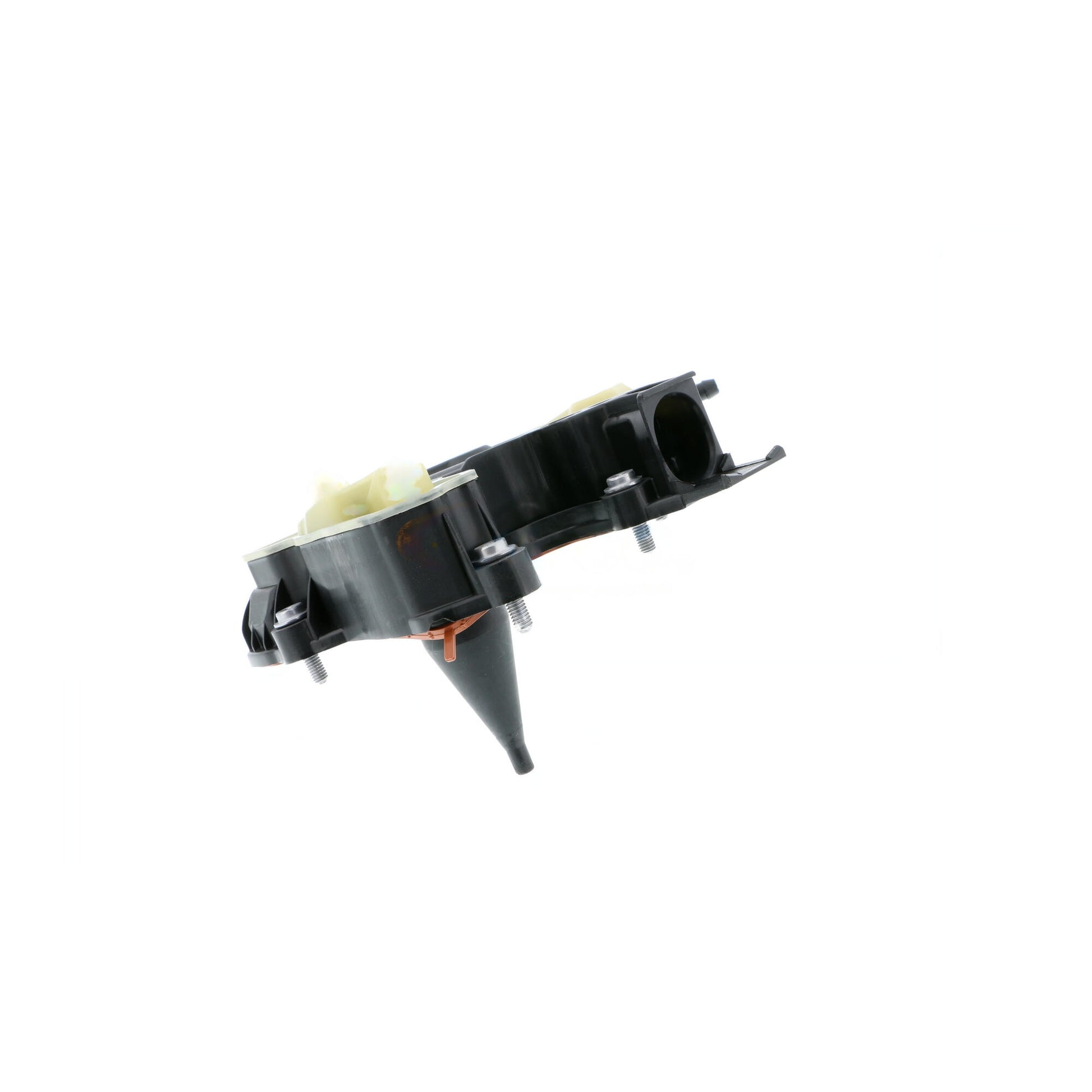

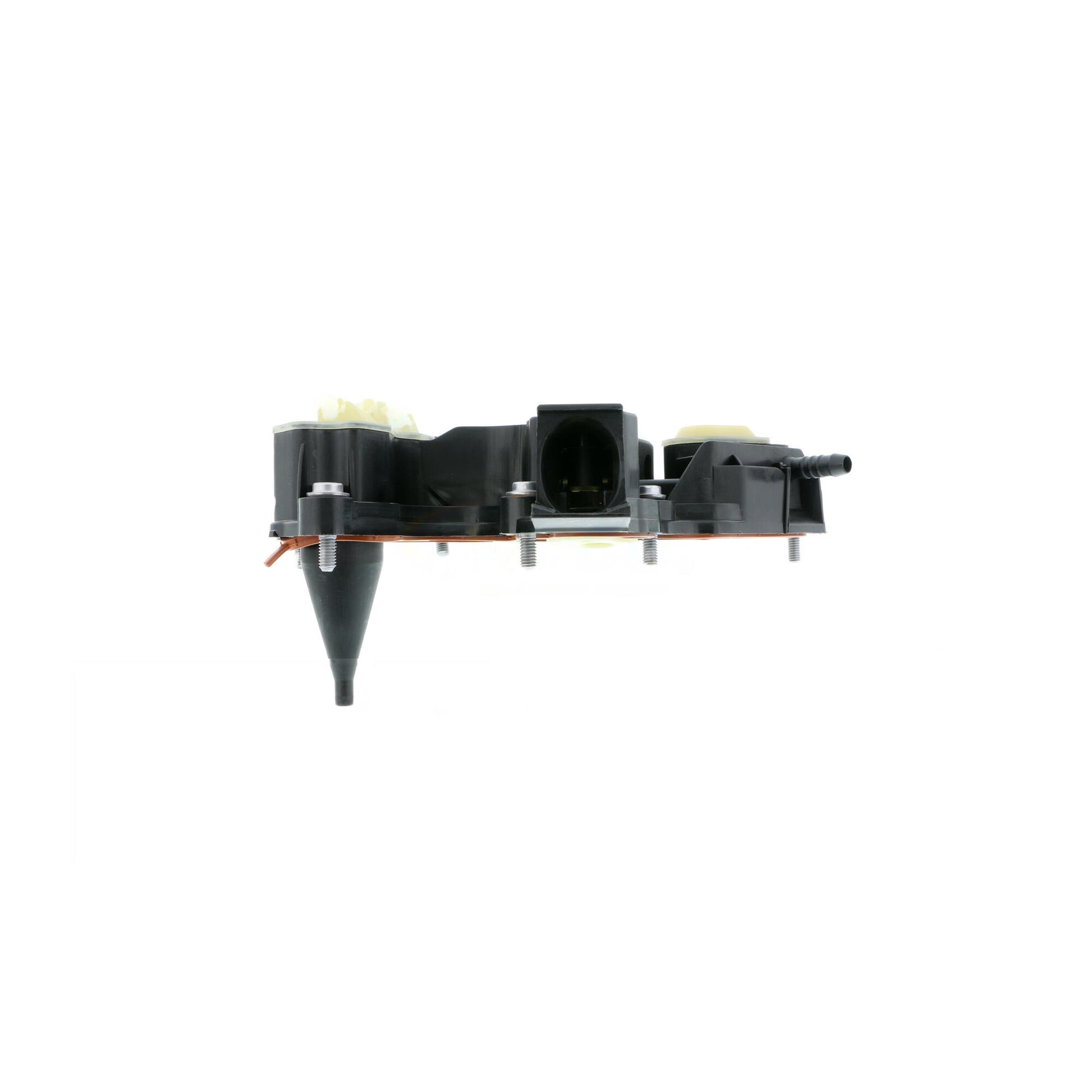

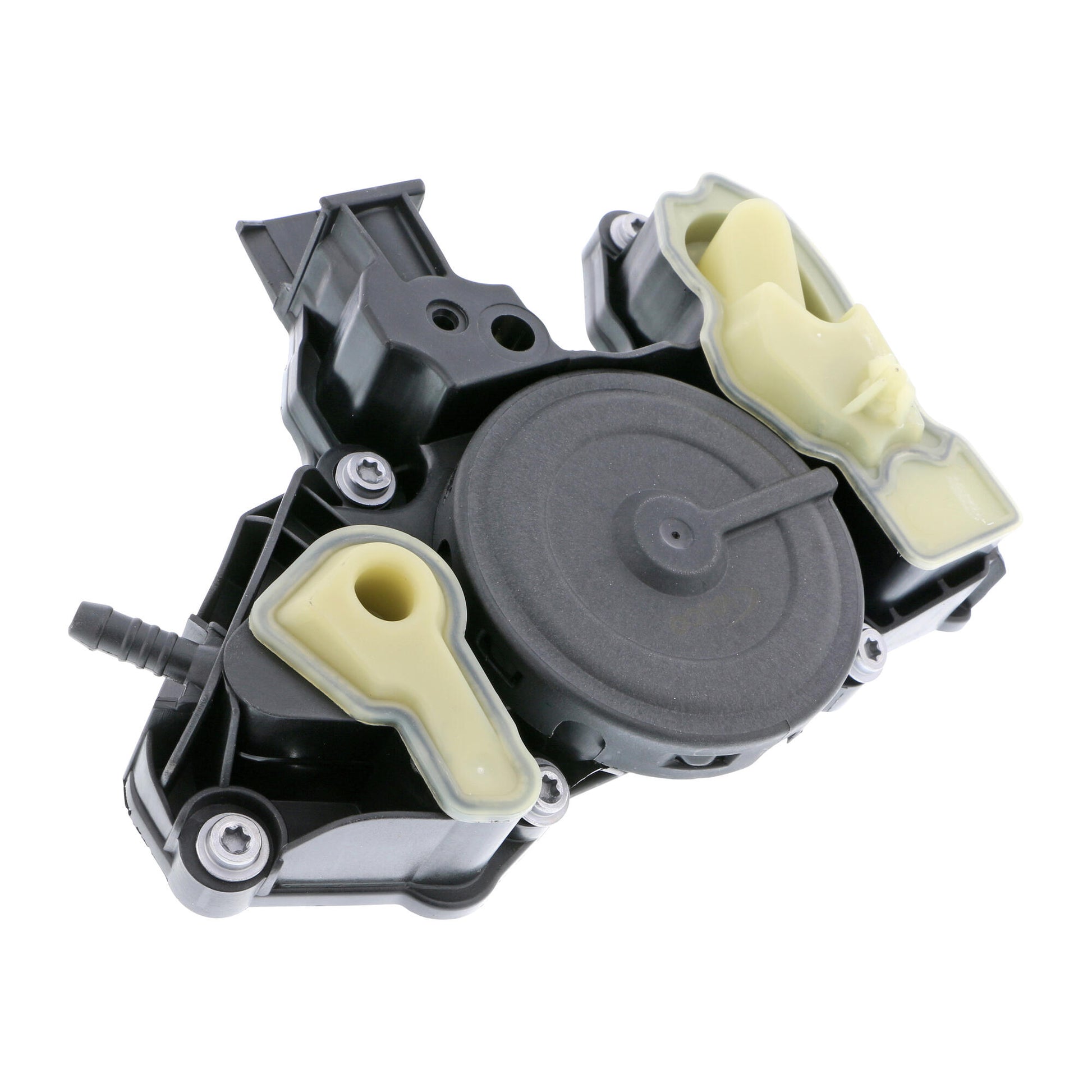

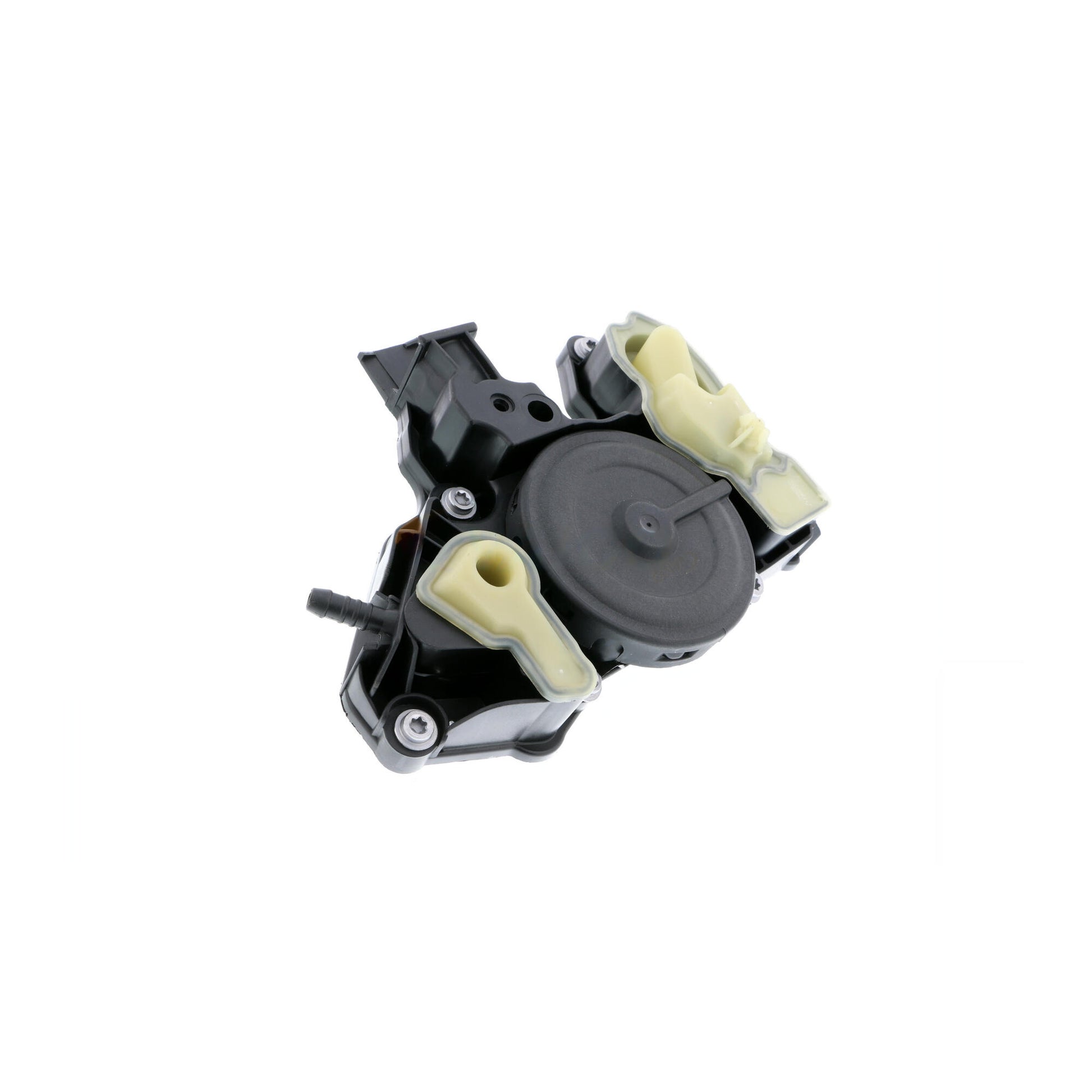

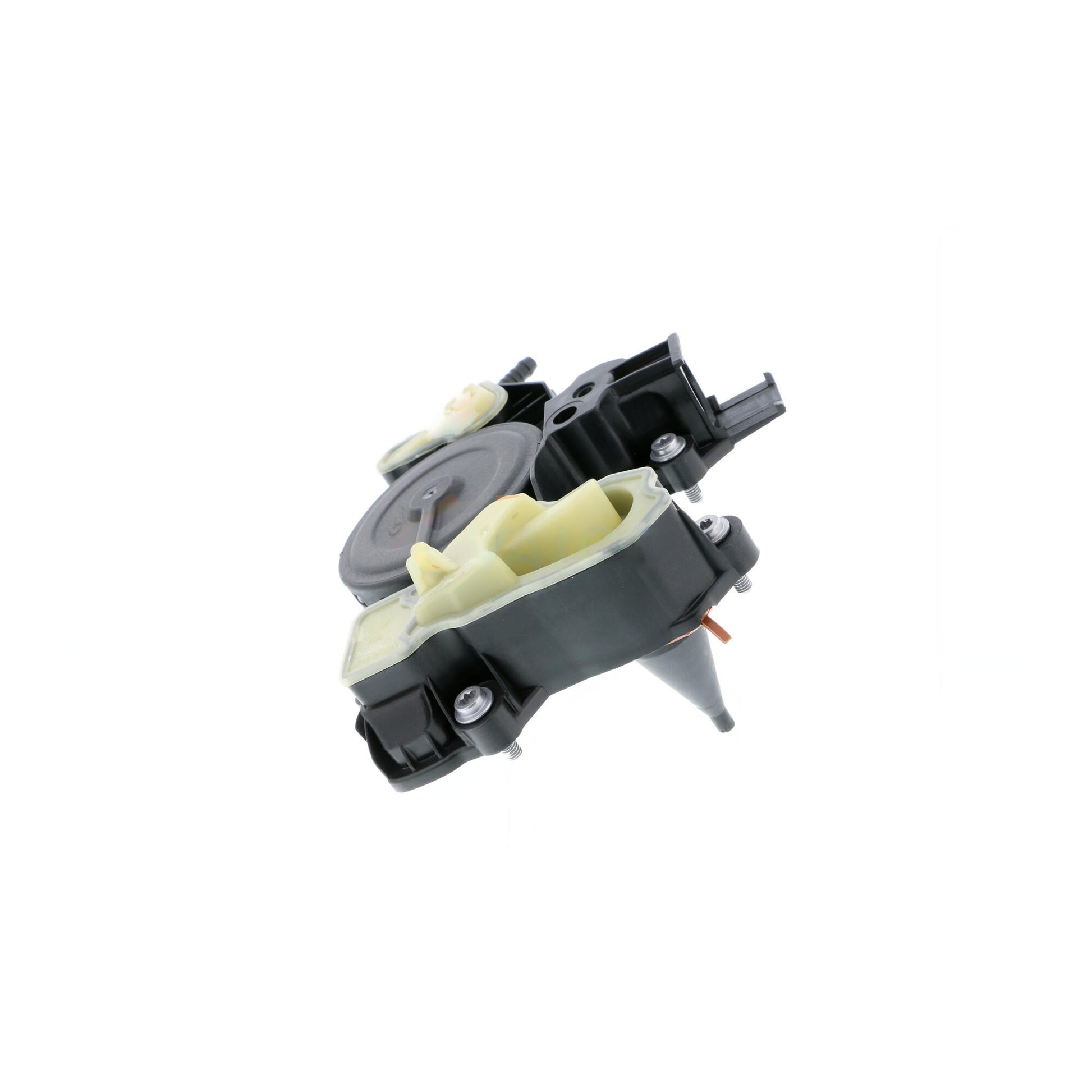

VAICO V10-3863 - Oil Separator, crankcase ventilation
Length [mm]: 235
Observe service information
Housing material: Polyamid 6.6
Height [mm]: 115
Bolt Head-/Nut Design: Female Torx
Supplementary Article/Supplementary Info: with seal
Recommended change interval [years]: 3
Observe the vehicle manufacturer specifications
Fitting Position: Cylinder Head
Width [mm]: 175,0
Operating Mode: Pressure Controlled
Supplementary Article/Info 2: with bolts/screws
Recommended change interval [km]: 60000
Valve Type: Breather Valve
Observe technical data
seal material: FPM (fluoride rubber)/ACM (polyacrylate rubber)
Weight [kg]: 0,5741
Replaces OEM reference(s):
AUDI: 06K103495AF, AUDI: 06K103495AS, AUDI: 06K103495BL, AUDI: 06K103495C, AUDI: 06K103495J, AUDI: 06K103495R, AUDI: 06K103495T, SEAT: 06K103495AF, SEAT: 06K103495AS, SEAT: 06K103495BL, SEAT: 06K103495C, SEAT: 06K103495J, SEAT: 06K103495R, SEAT: 06K103495T, SEAT: 6K103495AF, SEAT: 6K103495C, SEAT: 6K103495J, SEAT: 6K103495R, SEAT: 6K103495T, SKODA: 06K103495AF, SKODA: 06K103495AS, SKODA: 06K103495BL, SKODA: 06K103495C, SKODA: 06K103495J, SKODA: 06K103495R, SKODA: 06K103495T, SKODA: 6K103495AF, SKODA: 6K103495C, SKODA: 6K103495J, SKODA: 6K103495R, SKODA: 6K103495T, VAG: 06K103495AF, VAG: 06K103495BL, VAG: 06K103495BL, VAG: 06K103495C, VAG: 06K103495J, VAG: 06K103495R, VAG: 06K103495T, VAG: 6K103495AF, VAG: 6K103495C, VAG: 6K103495J, VAG: 6K103495R, VAG: 6K103495T, VW: 06K103495AF, VW: 06K103495AS, VW: 06K103495BL, VW: 06K103495C, VW: 06K103495J, VW: 06K103495R, VW: 06K103495T
Replaces aftermarket reference(s):
AIC: 59753, AUTLOG: AS8062, CSV electronic parts: CRV2649, ESEN SKV: 31SKV083, FEBI BILSTEIN: 176316, GATES: EMH954, MEAT & DORIA: 91649, METZGER: 2385093, PREXAparts: P150139, SIDAT: 83.2649, SWAG: 33 10 3469, TOPRAN: 116 432, TRUCKTEC AUTOMOTIVE: 07.10.109
